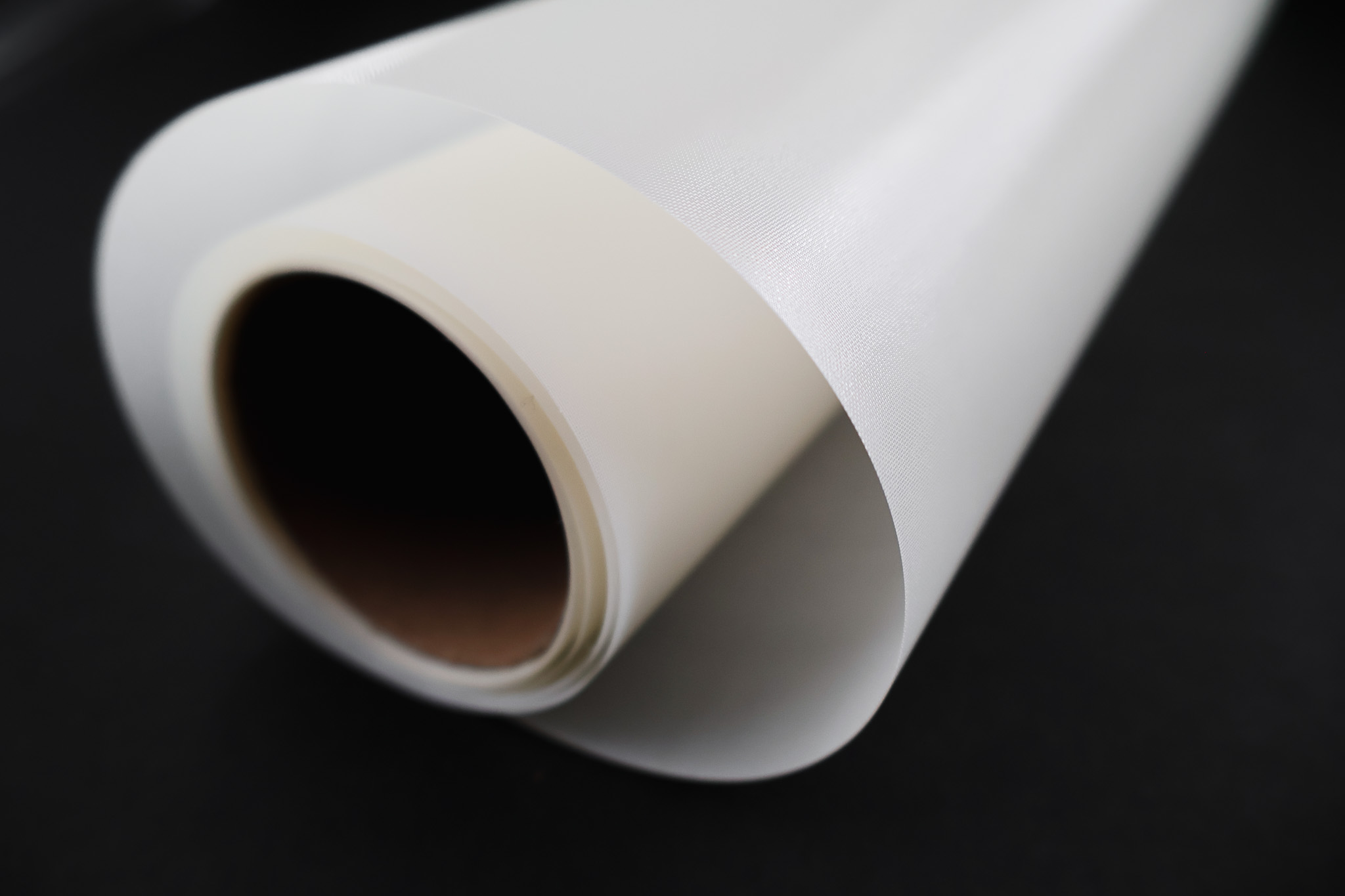

fumasep® FKS-PET-75/130 Cation Exchange Membrane

fumasep® FKS-PET-75/130 Cation Exchange Membrane - Image 2

fumasep® FKS-PET-75/130 Cation Exchange Membrane - Image 3

fumasep® FKS-PET-75/130 Cation Exchange Membrane - Image 4

fumasep® FKS-PET-75/130 Cation Exchange Membrane

Price range: 35.00 € through 185.00 €

The fumasep® FKS-PET-75/130 is a PET-reinforced cation exchange membrane with low resistance, very high selectivity (>96%) and very high mechanical stability, available in 75 µm and 130 µm for electrodialysis desalination and salt concentration.

Read more about the product

Nominal dry thickness

Size

Package

Clear

▲ ▼

About the product

The fumasep® FKS-PET is a PET-reinforced cation exchange membrane from Fumatech for electrodialysis (ED) and electrodialysis with bipolar membranes (EDBM). It is a dependable choice for cation transport in desalination, demineralisation and salt concentration, and pairs naturally with the FAS-PET anion exchange membrane in an ED stack.

Both thicknesses offer very high permselectivity (>96%). The 75 µm version has the lower area resistance (<3 Ω·cm²), while the 130 µm version (<4.0 Ω·cm²) adds mechanical robustness. Area resistance is measured in Cl⁻ form in 0.5 M NaCl at 25 °C. The woven PET reinforcement keeps both versions dimensionally stable in the x/y-direction.

The membrane is supplied dry, in K⁺ form, and can be cut in the dry state. Before use, condition it in 0.5–1 M NaCl solution at ambient temperature until equilibrated, keeping it fully immersed. Avoid surfactants, organic substances and oxidants.

Both versions have an operating temperature range of 15–40 °C.

Main application area: Cation transport in ED; desalination, demineralisation and salt concentration.

Property	Unit	FKS-PET-75	FKS-PET-130
Membrane type		Cation exchange membrane	Cation exchange membrane
Appearance		Light brown	Light brown
Reinforcement		PET	PET
Counter ion		K⁺ form	K⁺ form
Delivery form		Dry	Dry
Thickness (dry)	µm	65 – 90	120 – 160
Area resistance in Cl⁻ form in 0.5 M NaCl at T = 25 °C	Ω cm²	< 3	< 4.0
Permselectivity 0.1 / 0.5 M KCl at T = 25 °C	%	> 96	> 96
pH stability range at T = 25 °C	pH	0 – 14	0 – 14
Operational temperature range	°C	15 – 40	15 – 40

Technical Datasheet fumasep® FKS-PET-75/130
