fumasep® FAS-PK-75/130 Anion Exchange Membrane

Price range: 35.00 € through 185.00 €

The fumasep® FAS-PK-75/130 is a PK-reinforced anion exchange membrane combining low resistance, high selectivity and outstanding mechanical robustness, available in 75 µm and 130 µm and stable from pH 1 to 14.

Read more about the product

Nominal dry thickness

Size

Package

Clear

▲ ▼

About the product

The fumasep® FAS-PK is a PK (polyketone)-reinforced anion exchange membrane from Fumatech for electrodialysis and general electrochemical applications. Unlike the PET-reinforced FAS-PET, the PK reinforcement makes it stable in both acidic and caustic environments, so it can be used across a much wider range of process conditions.

The 130 µm version offers an area resistance below 4.5 Ω·cm² (Cl⁻ form, 0.5 M NaCl, 25 °C), selectivity above 93%, and excellent mechanical properties: Young’s modulus >1000 MPa, tensile strength >50 MPa, burst test >3 bar and dimensional swelling in water below 2%. The 75 µm version has the same chemistry and reinforcement in a thinner format for lower resistance. Detailed data for the 75 µm version are available on request.

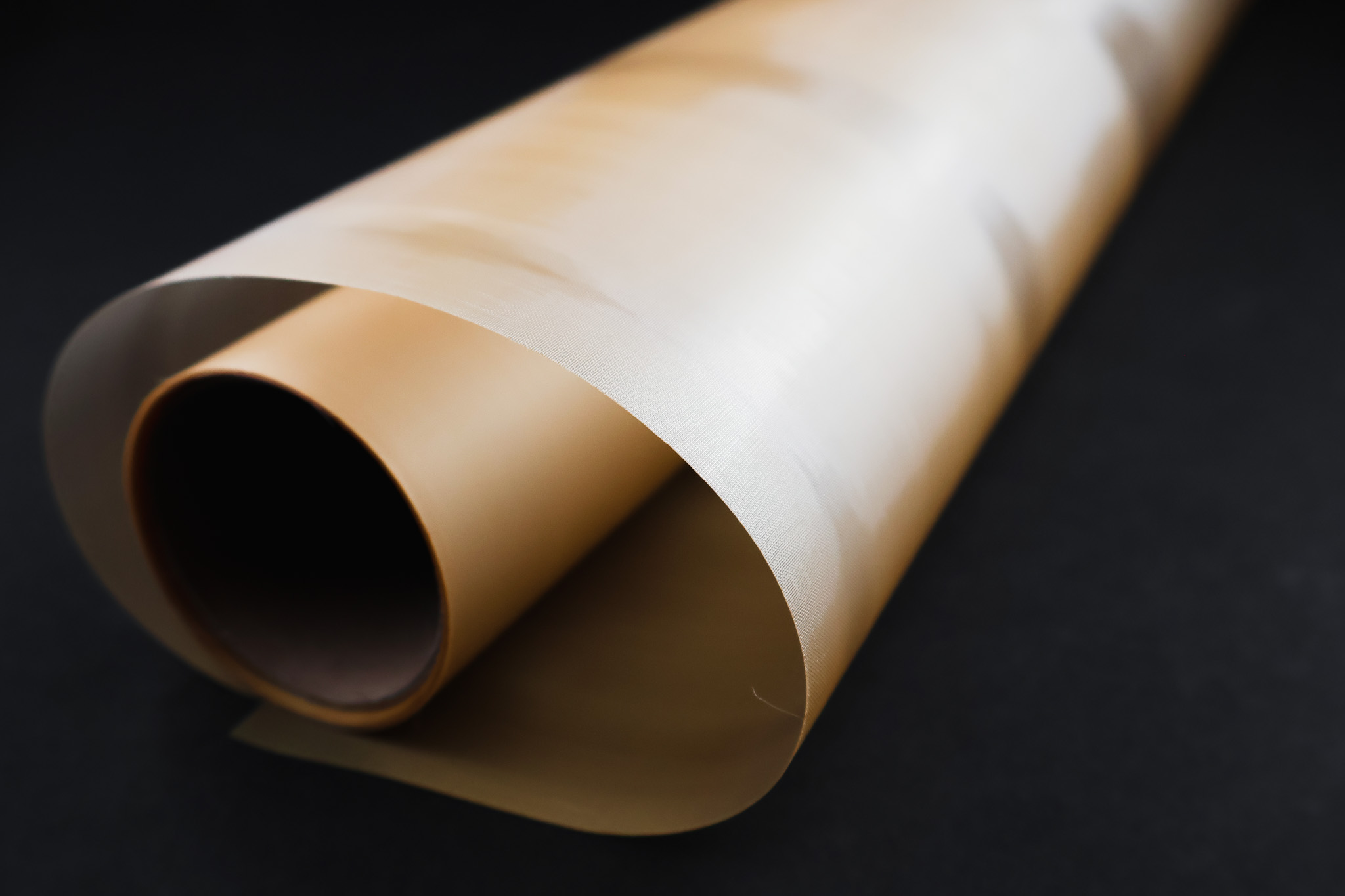

The membrane is supplied dry, in bromide (Br⁻) form, without a backing foil. Depending on the application and cell design, it can be assembled dry or wet. For wet pretreatment, place it between stabilising meshes or spacers (to prevent curling) in 0.5 M NaCl at 25 °C for 72 hours, changing the solution several times. Once wetted, do not let the membrane dry out, as shrinkage may cause micro-cracks.

Both versions are stable across pH 1–14 at 25 °C, with a recommended operating temperature of 15–40 °C. Note that the membrane is not resistant to chlorine (Cl₂).

Main application area: Anion transport in ED; desalination and salt concentration. General electrochemical applications, including acidic/caustic environments.

Property	Unit	FAS-PK-75	FAS-PK-130
Membrane type		Anion exchange membrane	Anion exchange membrane
Appearance		Brown	Brown
Backing foil		None	None
Reinforcement		PK (polyketone)	PK (polyketone)
Counter ion		Bromide (Br⁻)	Bromide (Br⁻)
Delivery form		Dry	Dry
Thickness (dry)	µm	Nominal 75	110 – 150
Weight per unit area (dry)	g m⁻²	On request	110 – 160
Area resistance in Cl⁻ form in 0.5 M NaCl at T = 25 °C	Ω cm²	On request	< 4.5
Selectivity 0.1 / 0.5 mol/kg KCl at T = 25 °C	%	On request	> 93
Dimensional swelling in H₂O at T = 25 °C	%	On request	< 2
Young’s modulus at 23 °C / 50 % r.h.	MPa	On request	> 1000
Tensile strength at 23 °C / 50 % r.h.	MPa	On request	> 50
Elongation at break at 23 °C / 50 % r.h.	%	On request	> 15
Proton transfer rate	nmol min⁻¹ cm⁻²	On request	< 2000
Burst test in water at T = 25 °C	bar	On request	> 3
pH stability range at T = 25 °C	pH	1 – 14	1 – 14
Operational temperature range	°C	15 – 40	15 – 40

Technical Datasheet fumasep® FAS-PK-130
