From: $4 023.80

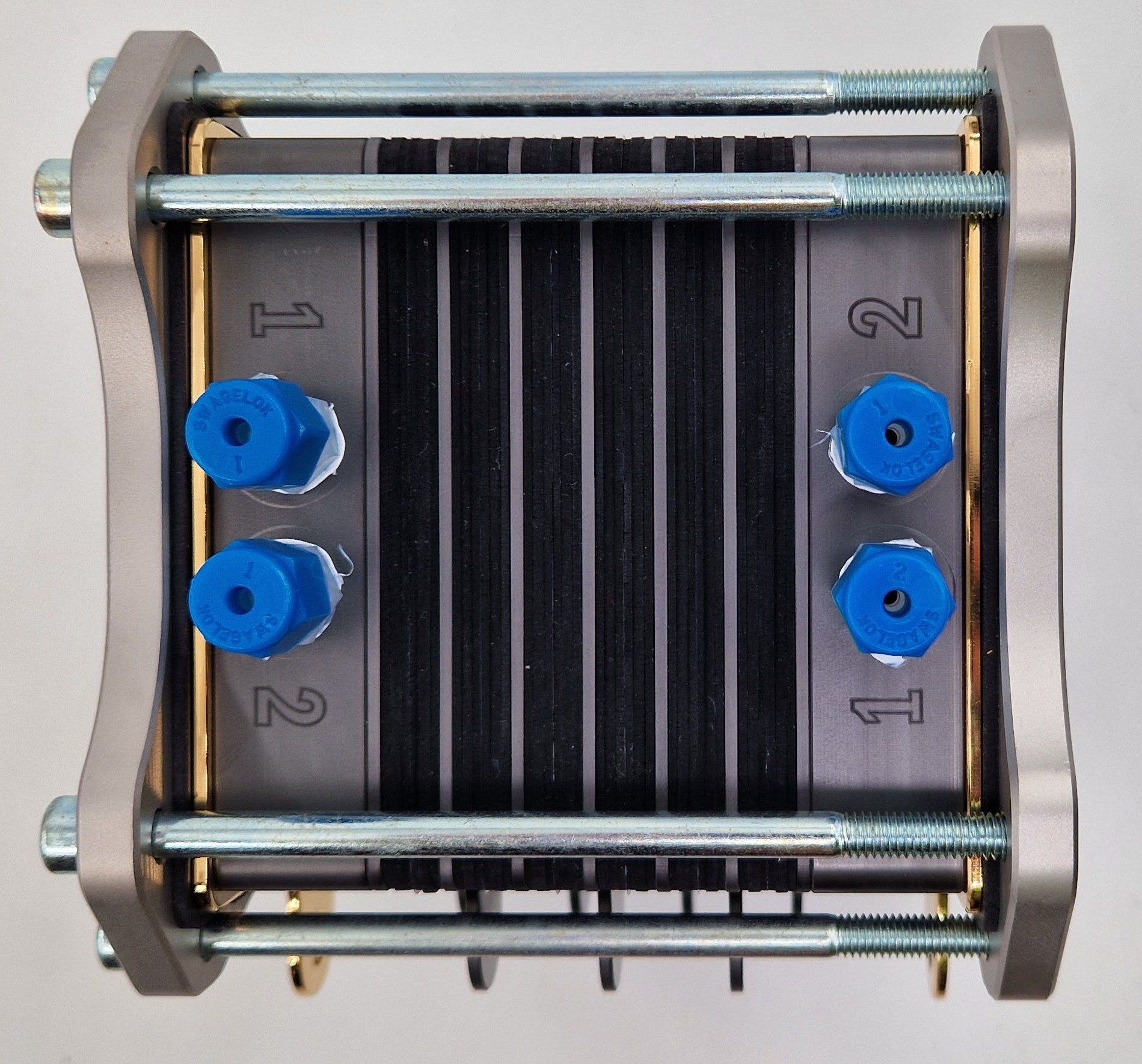

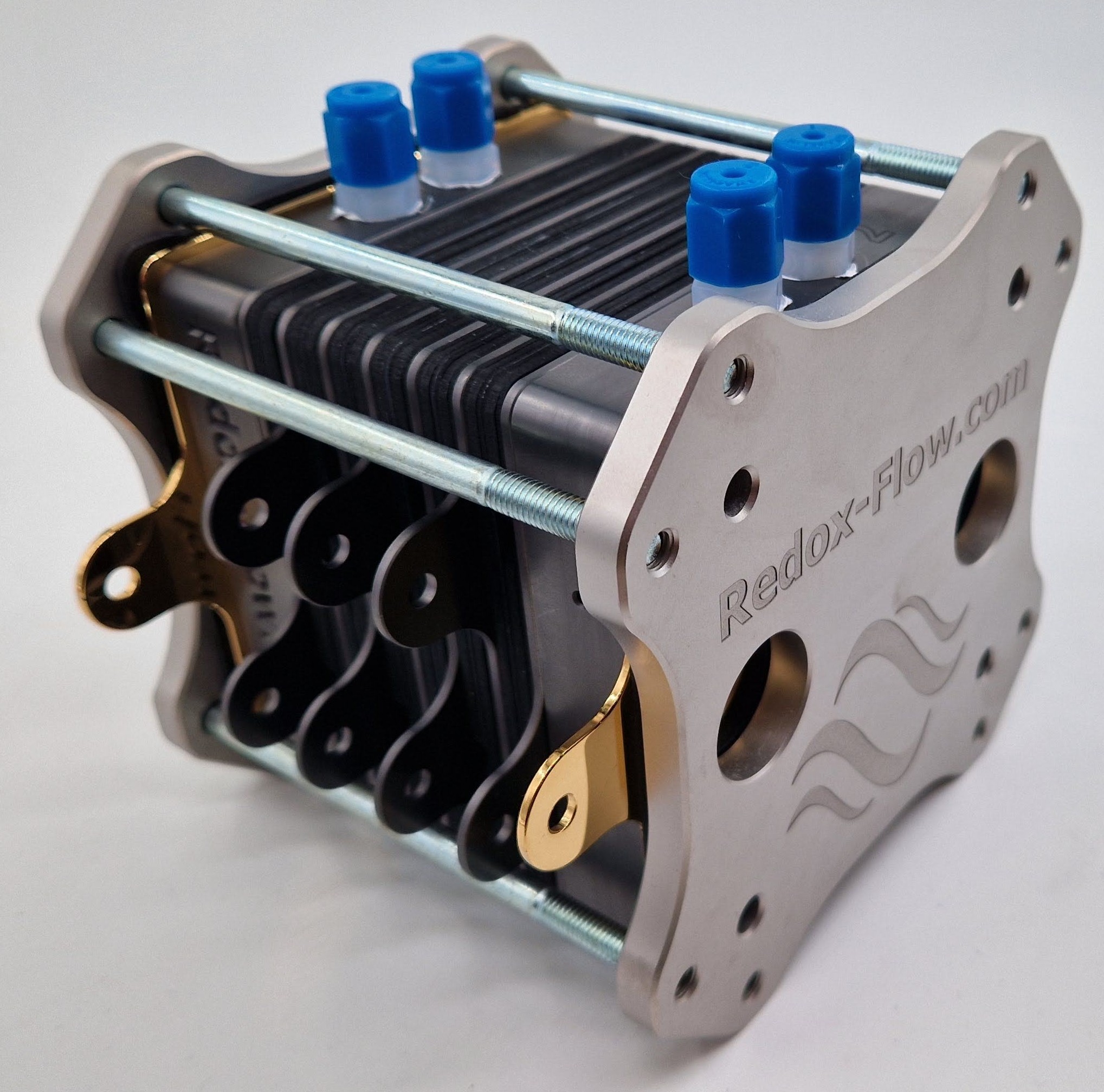

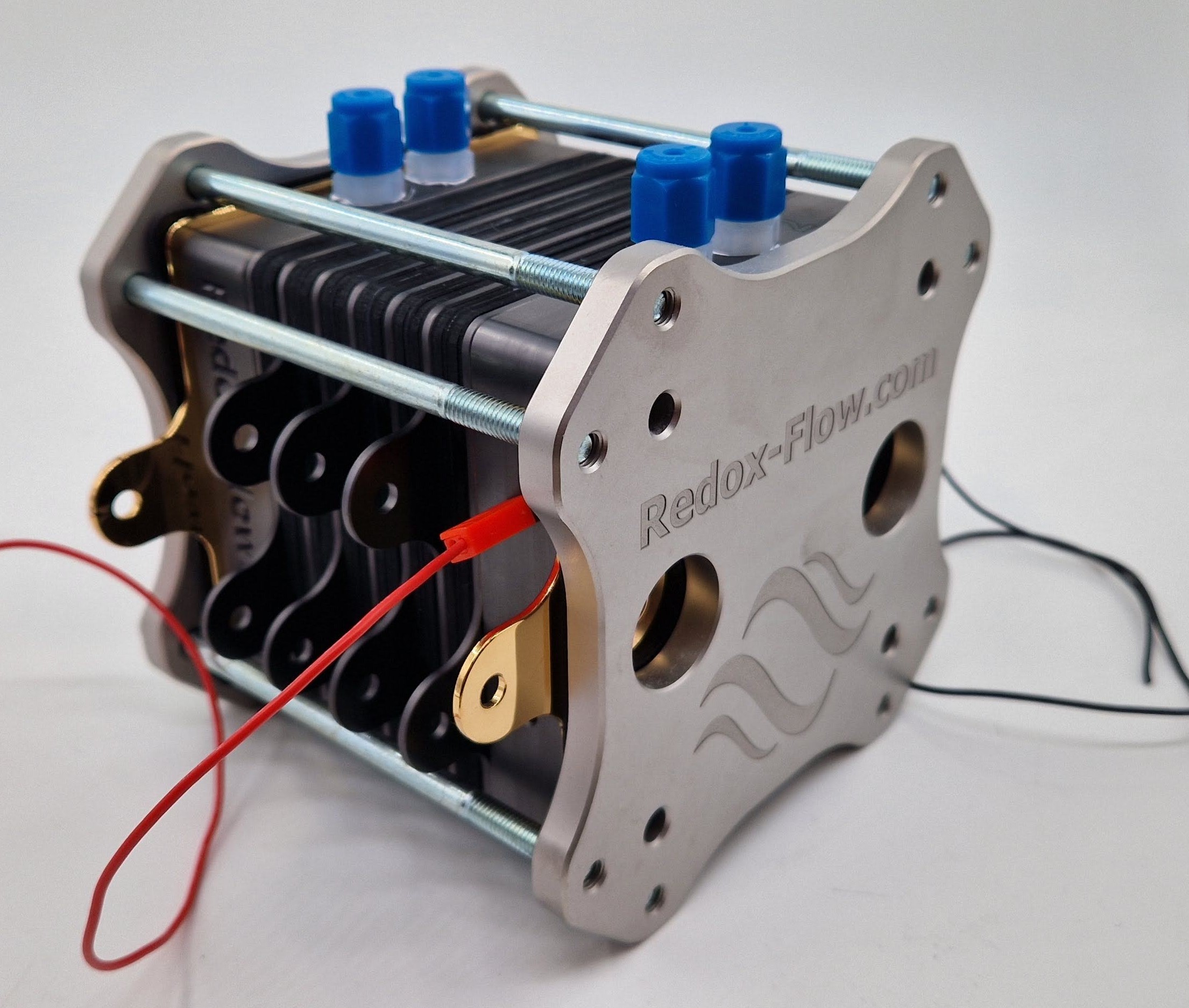

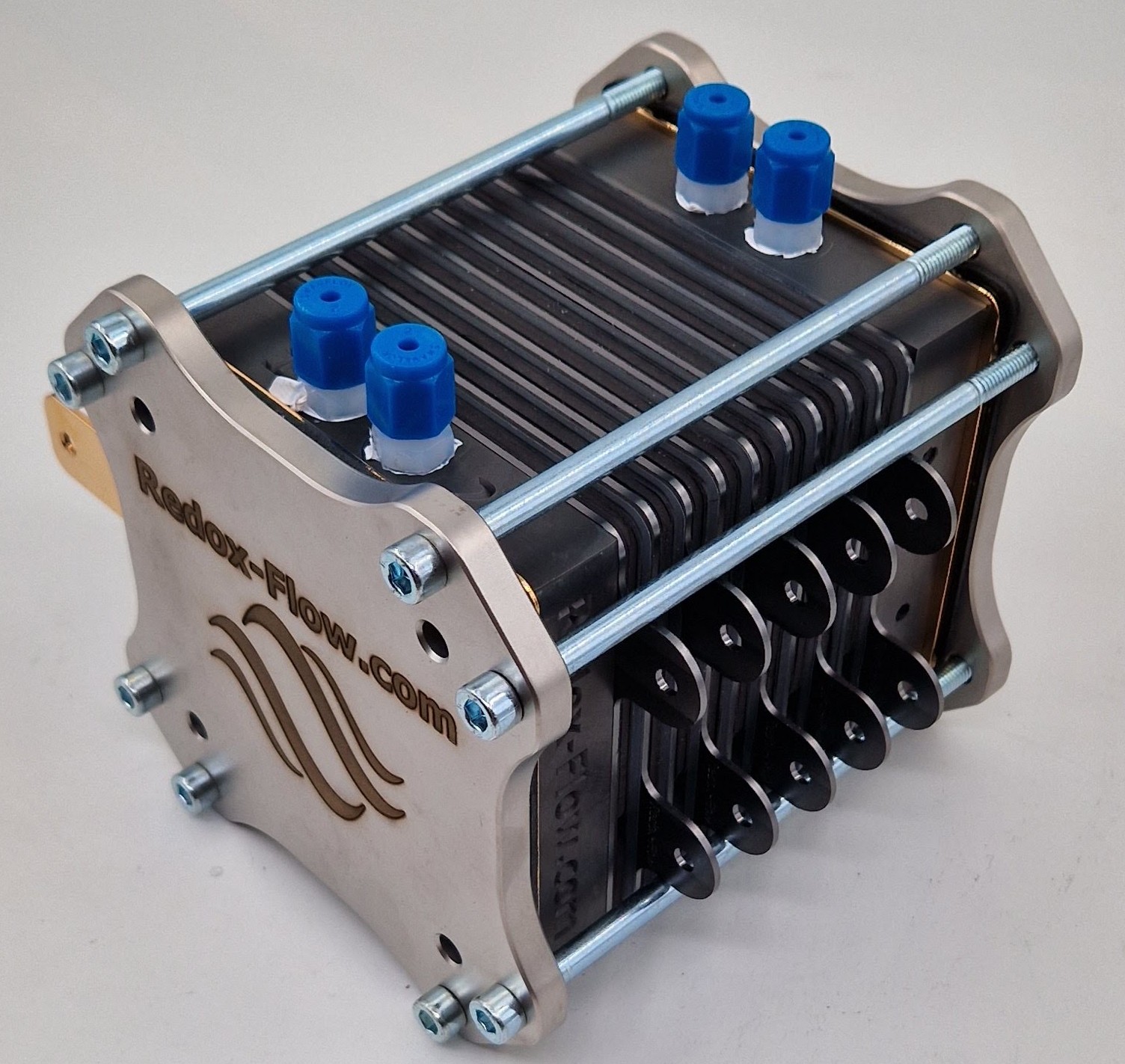

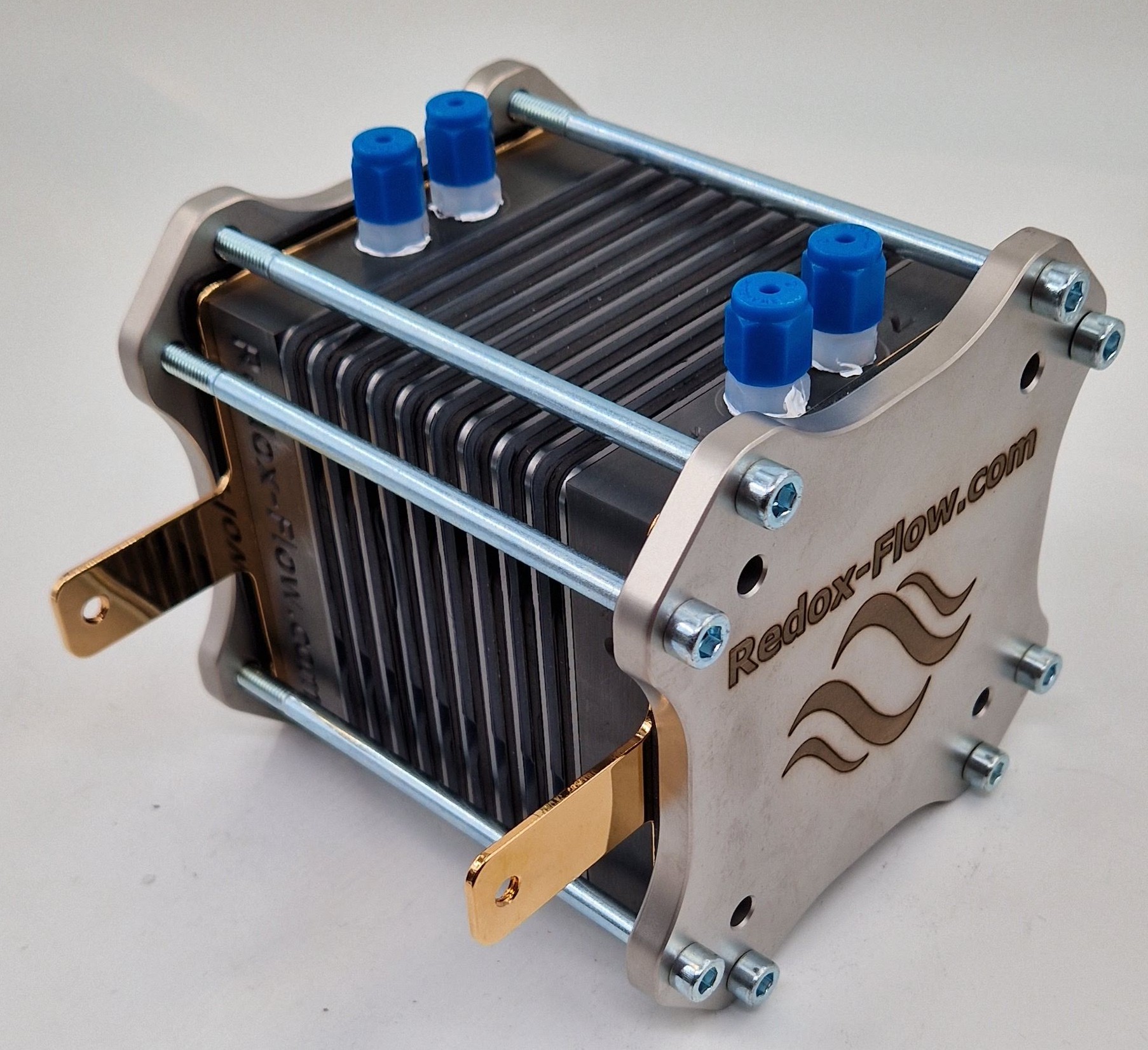

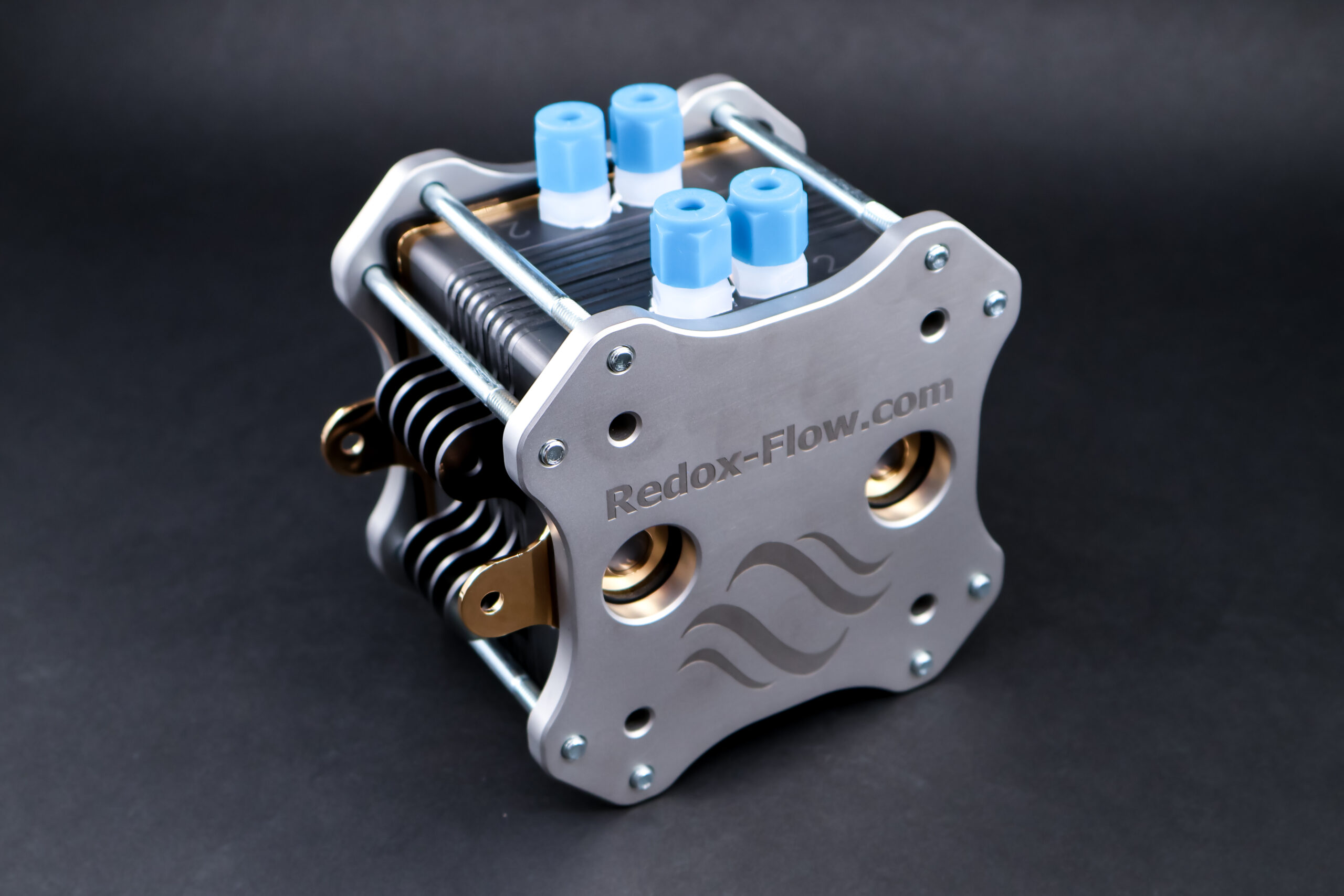

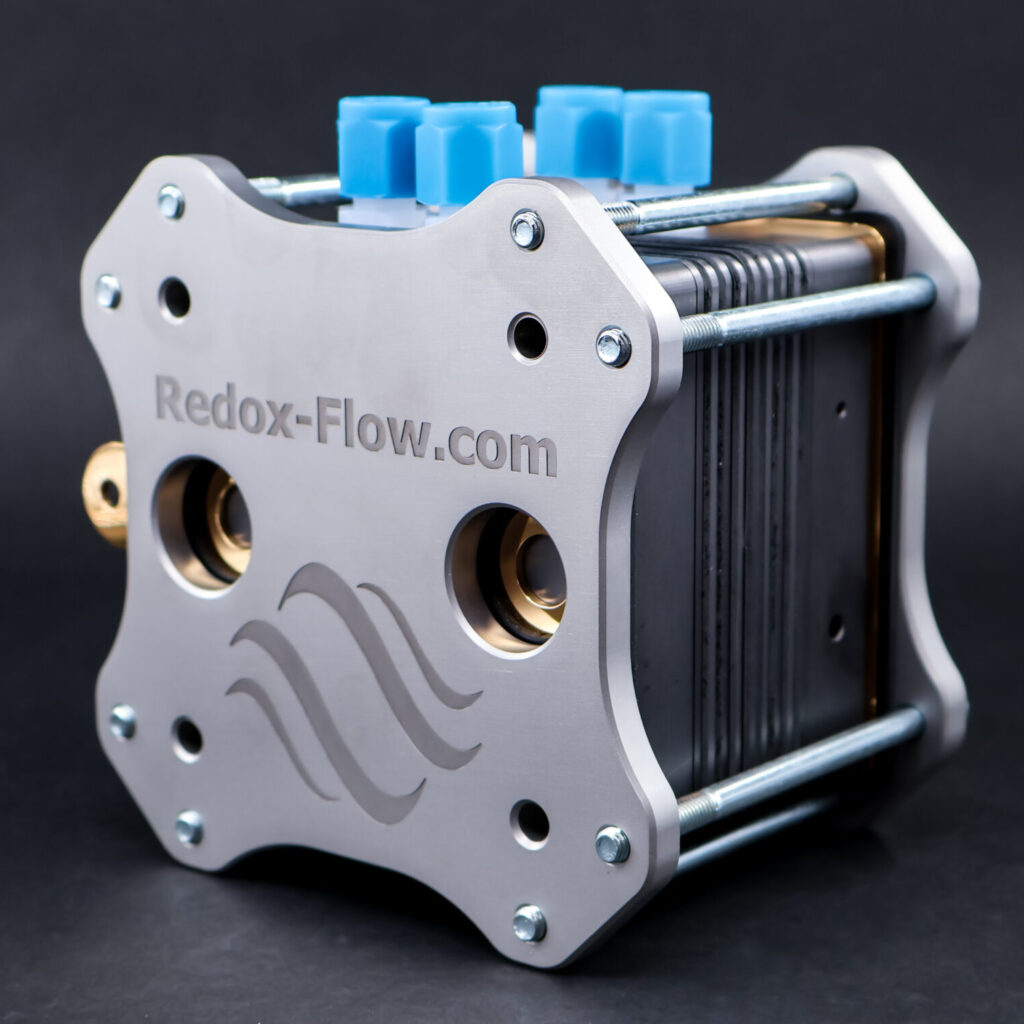

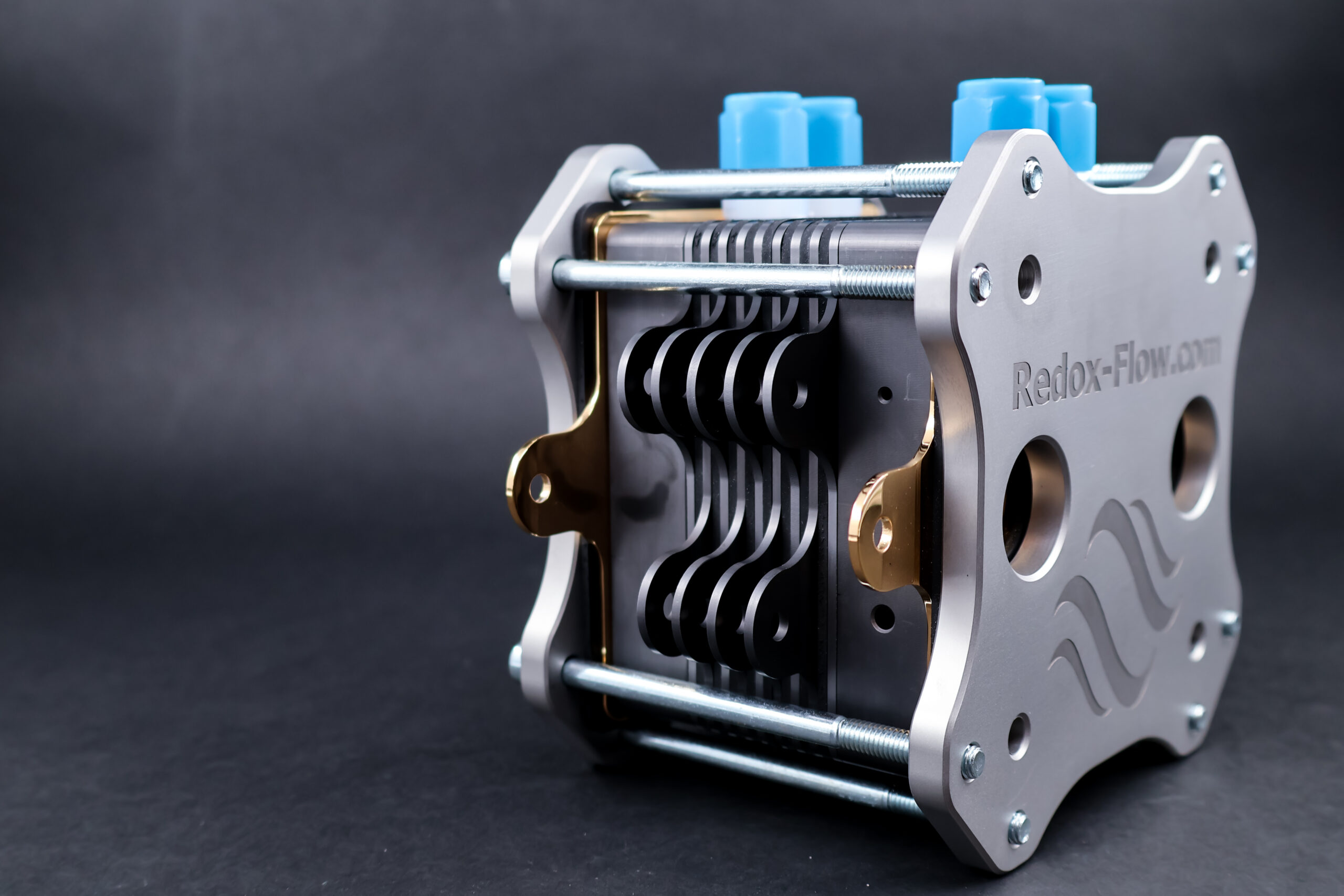

Flow battery stack with 25 cm2 active area per cell
The design of the S-stack is a result of almost 10 years of know-how in the field of flow battery test cells and maybe the only research stack product on the market.
The S-stack was developed for testing/optimisation of components (electrode/membranes/bipolar plates), testing of stack properties, upscaling and demonstration.
It can be tested with any number of cells between 1 and 9, electrodes must be at least 1 mm thick, but can be used for any type of electrode material.
Different electrode compressions can be obtained by different spacer thicknesses.
The S-Stack is supplied with hard bipolar plate materials.

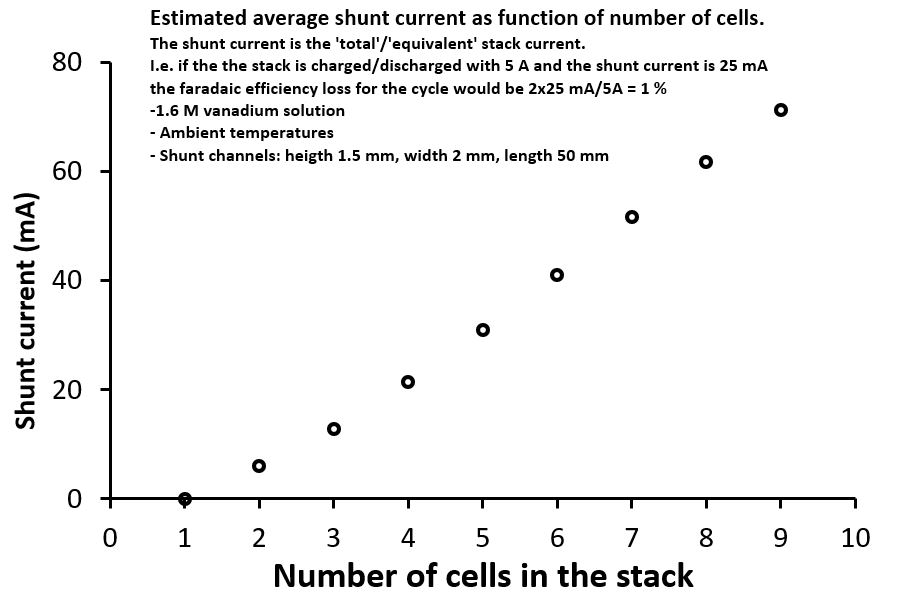

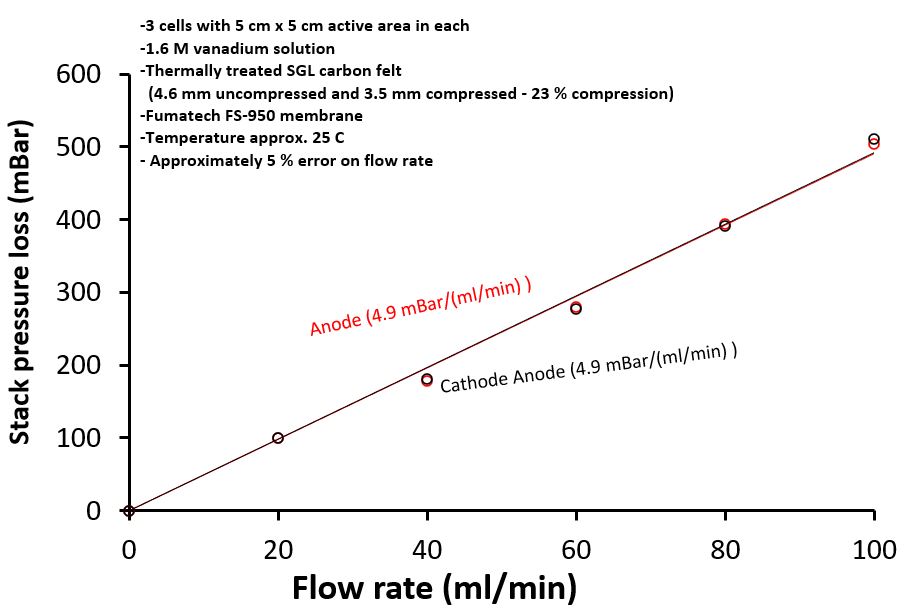

Design is focused on trade-of between minimizing pressure inside cell and keeping shunt currents low.
Some of the unique features of the S-Stack are
The electrolyte is only in contact with flow block (graphite), spacers (PTFE, Viton or EPDM), O-ring (Viton/EPDM), bipolar plate, electrode and membrane. The S-stack and S-cell is intended for optimisation studies, but can also be used a normal flow battery test cell like the A-cell.
Membranes and electrodes are not included, but we have a selection of these.
See our selection of membranes for flow-battery cells here.
See our selection of carbon electrodes for flow-battery cells here.

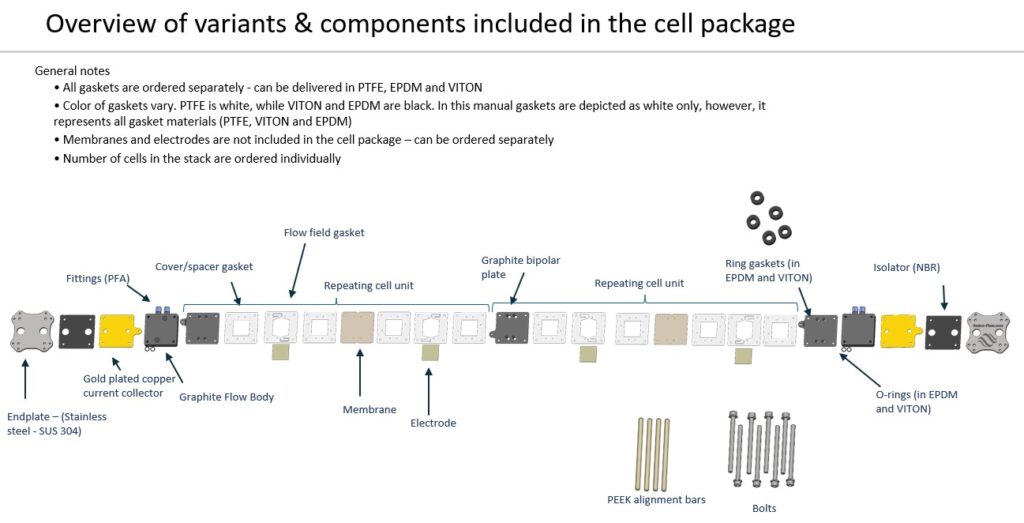

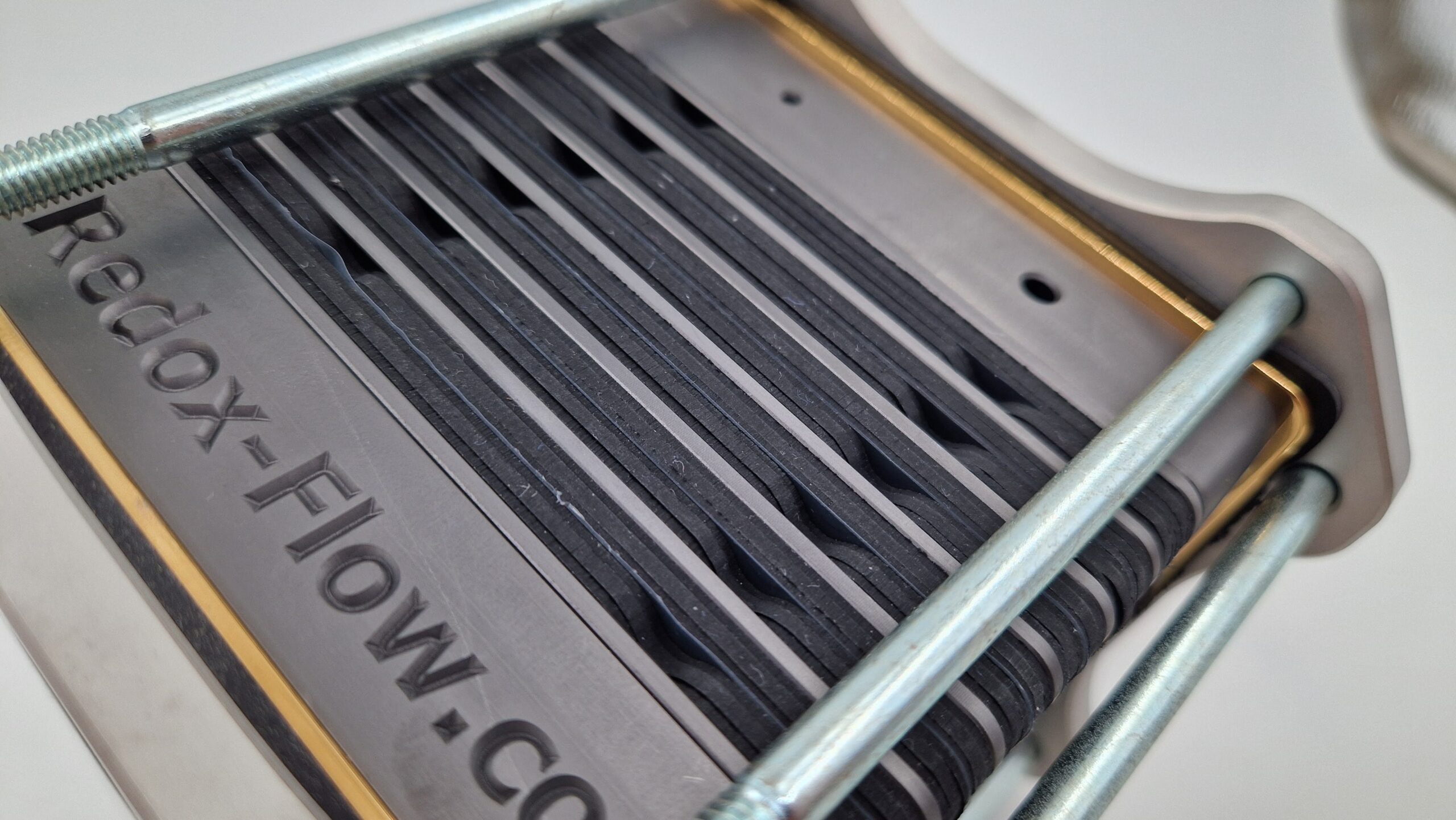

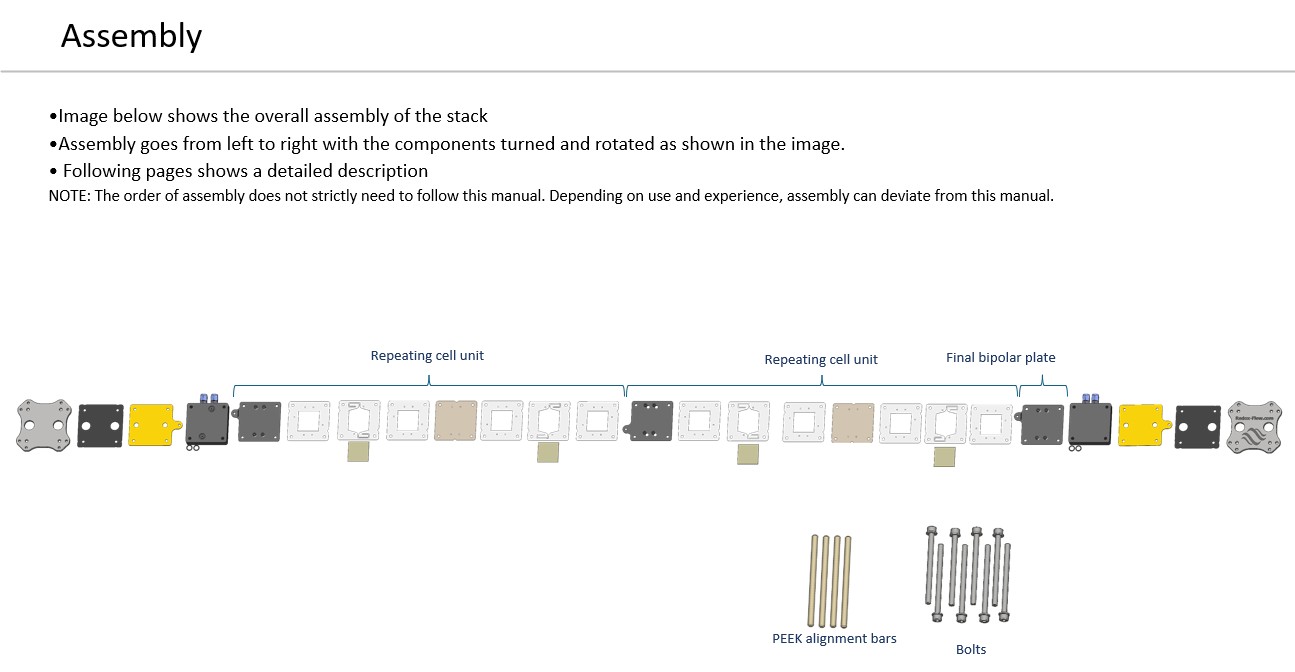

The stack can be configured wiht up to 9 cells. Each cell is build up around a membrane (not included), with an electrode on each side and a bipolar plate in graphite. The electrodes (5×5 cm, not included) are placed within a set of gaskets, consisiting of cover gaskets and a central flow-field gaskets, specifically designed for the S-Stack for best performance. Hence for each cell, 4 cover gaskets (2 sets) and 2 flow-field gaskets (1 set) are needed. The combined thickness of the cover gaskets and flow-field gasket on each side, should match the desired compressed thickness of the electrodes.

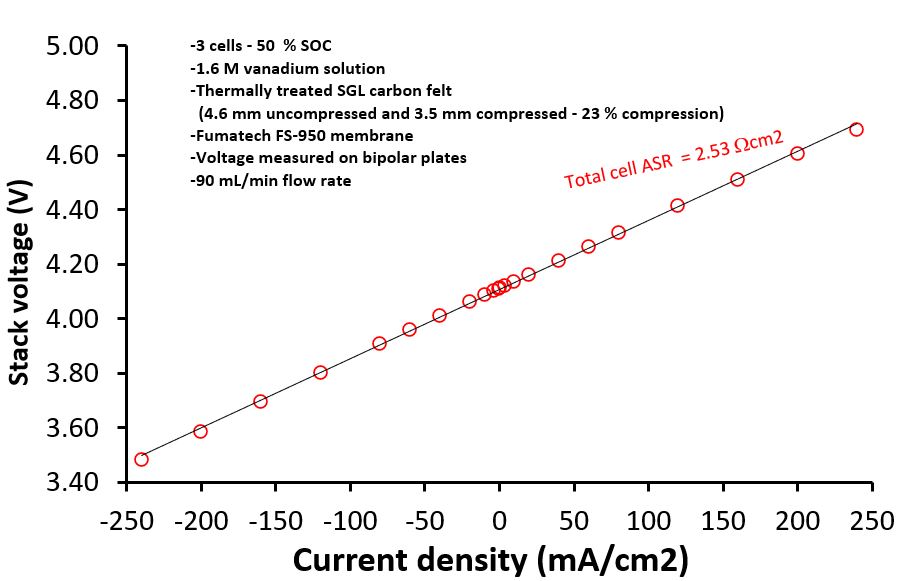

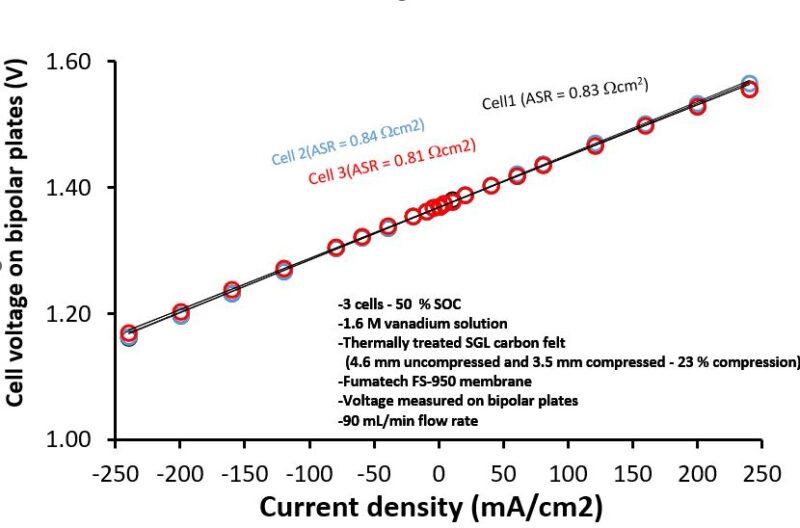

Top-performance – With SGL carbon felt and FS950 membrane, polarisation curve gives ASR of 0.8 Ωcm2 per cell – performance is not limited by cell design but limited by electrodes/membranes
Do you have specific questions or would you like help in selection and configuration of our product:
You are very welcome to contact us in the form here. We are ready to support you in selecting the best solutions for your R&D.
Always include as much information as you can about your project, what type of chemistry you are planning to use, what is the purpose of the equipment you are interested in. That will make it much easier for us to guide you towards the best solution for your project.
