Price range: 95.00 € through 570.00 €
Fumatech F-10150-PTFE PTFE-reinforced fluorinated cation exchange membrane for water electrolysis and flow batteries, offering high mechanical robustness, chemical stability, and selectivity in a 150 µm format.
The F-10150-PTFE is a 150 µm PTFE-reinforced fluorinated cation exchange membrane from Fumatech, designed for demanding electrochemical applications including water electrolysis and redox flow batteries where high mechanical durability and oxidative stability are essential.
The PTFE reinforcement delivers superior mechanical integrity — Young’s modulus >300 MPa, tensile strength >30 MPa, and burst test >3 bar — while keeping dimensional swelling in water below 6%. Ion selectivity is >95% and area resistance <1 Ω·cm² (measured after activation), making it a reliable choice for high-performance electrolysis cells.
The membrane is supplied in H⁺ form, dry and non-activated, on a PET backing foil. For most applications, activation can be carried out in-situ without any acid pretreatment prior to assembly. For immediate high performance, optional pre-activation in 10 wt% H₂SO₄ at 70–90°C for at least 6 hours is recommended, followed by thorough washing with demineralised water.
Main application area: PEM water electrolysis

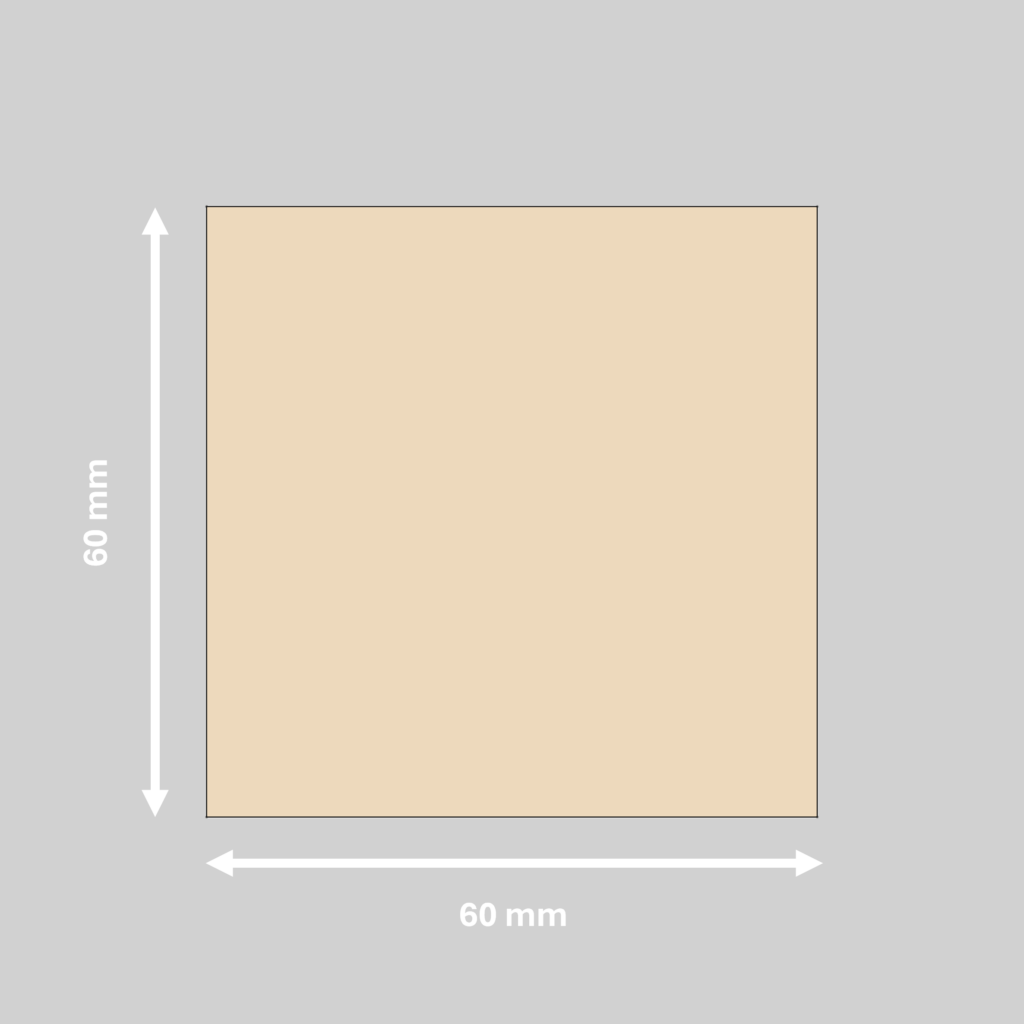

For other dimensions or specific cut-outs, please make an inquiry. We are happy to provide custom solutions for your project.
| Property | Unit | F-10150-PTFE |
| Membrane type | Cation exchange membrane | |
| Appearance | Slightly opaque / light brown | |
| Backing foil | PET | |
| Reinforcement | PTFE | |
| Counter ion | H⁺ form | |
| Delivery form | Dry, non-activated | |
| Thickness (dry) | µm | 150 – 200 |
| Weight per unit area | g m⁻² | 250 – 350 |
| Area resistance in 0.5 M H₂SO₄ | Ω cm² | < 1 |
| Selectivity 0.1 / 0.5 mol/kg KCl at T = 25 °C | % | > 95 |
| Dimensional swelling in H₂O at T = 25 °C | % | < 6 |
| Young’s modulus at 23 °C / 50% r.h. | MPa | > 300 |
| Tensile strength at 23 °C / 50% r.h. | MPa | > 30 |
| Elongation at break at 23 °C / 50% r.h. | % | > 15 |
| Burst test in water at T = 25 °C | bar | > 3 |
Copied from Fumatech’s offical datasheet
Do you have specific questions or would you like help in selection and configuration of our product:
You are very welcome to contact us in the form here. We are ready to support you in selecting the best solutions for your R&D.
Always include as much information as you can about your project, what type of chemistry you are planning to use, what is the purpose of the equipment you are interested in. That will make it much easier for us to guide you towards the best solution for your project.
