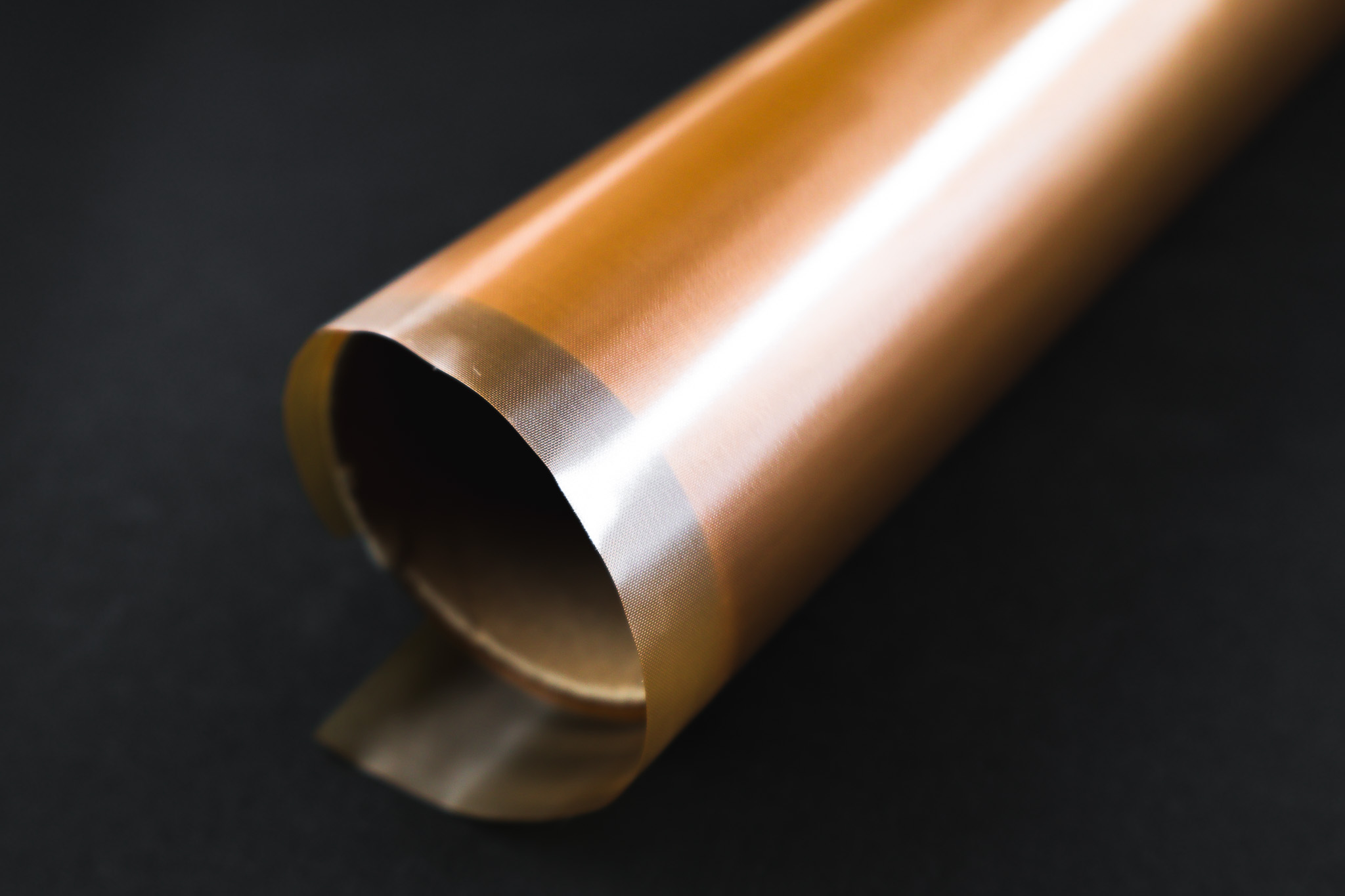

FAAM-PK-75 Anion Exchange Membrane
FAAM-PK-75 Anion Exchange Membrane - Image 2
FAAM-PK-75 Anion Exchange Membrane - Image 3
FAAM-PK-75 Anion Exchange Membrane - Image 4
FAAM-PK-75 Anion Exchange Membrane - Image 5

FAAM-PK-75 Anion Exchange Membrane

Price range: 95.00 € through 570.00 €

Fumatech FAAM-PK-75 PK-reinforced anion exchange membrane for alkaline electrolysis, combining robust mechanical stability with excellent chemical resistance in concentrated KOH (6–12 M) up to 100°C.

Read more about the product

▲ ▼

About the product

The FAAM-PK-75 is a 75 µm PK-reinforced anion exchange membrane from Fumatech with ternary ammonium functional groups, designed for alkaline water electrolysis using liquid aqueous KOH at concentrations of 6–12 M and temperatures up to 100°C.

The key differentiator from the FAAM-20 is the PK (polyketone) reinforcement layer, which significantly enhances mechanical robustness — Young’s modulus >1000 MPa in dry state — while keeping dimensional change under control: length increase under 9 M KOH treatment remains <2%, with swelling (hydration) of 40–60 wt%. This makes the FAAM-PK-75 particularly well suited for applications demanding greater mechanical durability, such as pressurised electrolysis cells. Thermal stability extends to 250°C in dry state, and the membrane is stable under highly alkaline conditions.

Note that unlike the FAAM-20, the FAAM-PK-75 is supplied without a PET backing foil. The membrane is self-activating in the cell upon contact with aqueous KOH within a few hours. Dry assembly is recommended; pre-activation can be done by soaking between stabilizing meshes in KOH solution for at least 24 hours in a closed container to prevent CO₂ contamination.

Main application area: Alkaline water electrolysis (AWE)




To suit your specific research needs, we provide membranes in several formats:
  • Standard Sheets: 12.5 x 12.5 cm and 20 x 30 cm sheets for custom cutting.
  • Pre-Cut for Our Cells:
    • Cut w. alignment holes: For all our single cell test hardware.
    • Cut for X-Stack: Perfectly sized for our X-Stack electrolyser.
    • Cut for S-Stack: Designed for our S-Stack flow battery.
    • Cut with manifold holes: For our 3 and 4-compartment X-Cell.

For other dimensions or specific cut-outs, please make an inquiry. We are happy to provide custom solutions for your project.

Property Unit FAAM-PK-75
Membrane type   Anion exchange membrane
Functional group   Ternary ammonium group
Appearance   Brown, transparent
Backing foil   None
Reinforcement   PK
Counter ion   None
Delivery form   Dry
Thickness (dry) µm 60 – 80
Weight per unit area (dry) g m⁻² 60 – 80
Young’s modulus (dry) MPa > 1000
Temperature durability (dry)   No oxidation below 250 °C
pH durability range   Stable under highly alkaline conditions
Treatment with 9 M aqueous KOH at 20 °C for 1 day
Thickness increase % 20 – 40
Length increase % < 2
Swelling (hydration) wt % 40 – 60

Copied from Fumatech’s offical datasheet

Technical Datasheet fumasep FAAM-PK-75_v2-2
