X-Cell – The Most Flexible Electrolysis Cell for R&D

FCP-X-01-001

From: $3 417.28

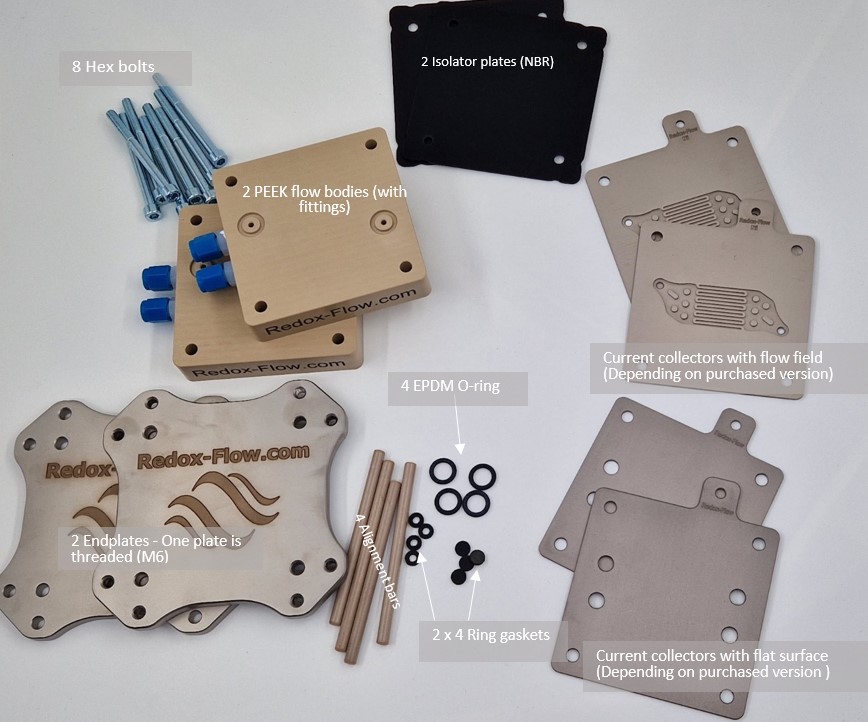

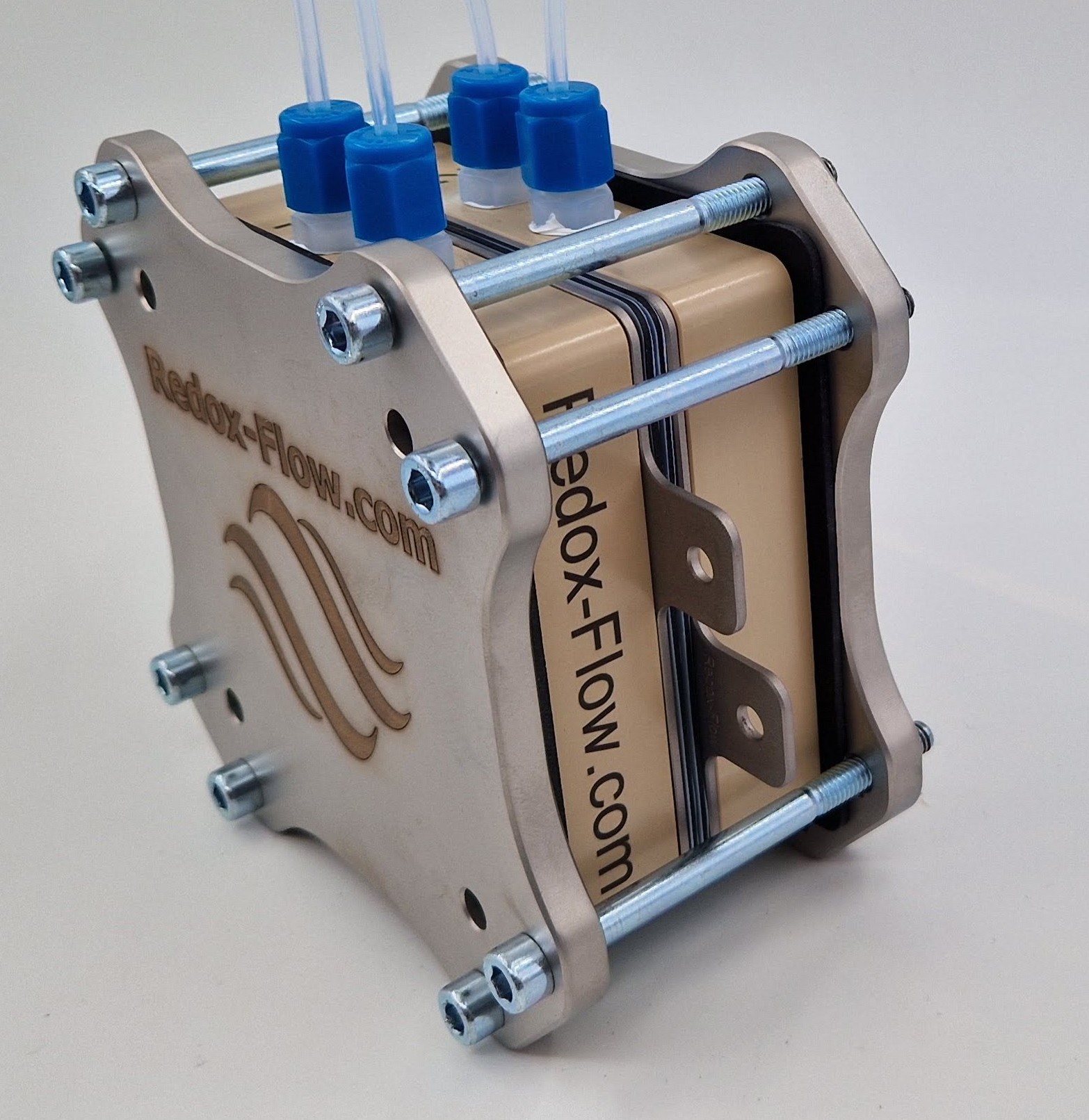

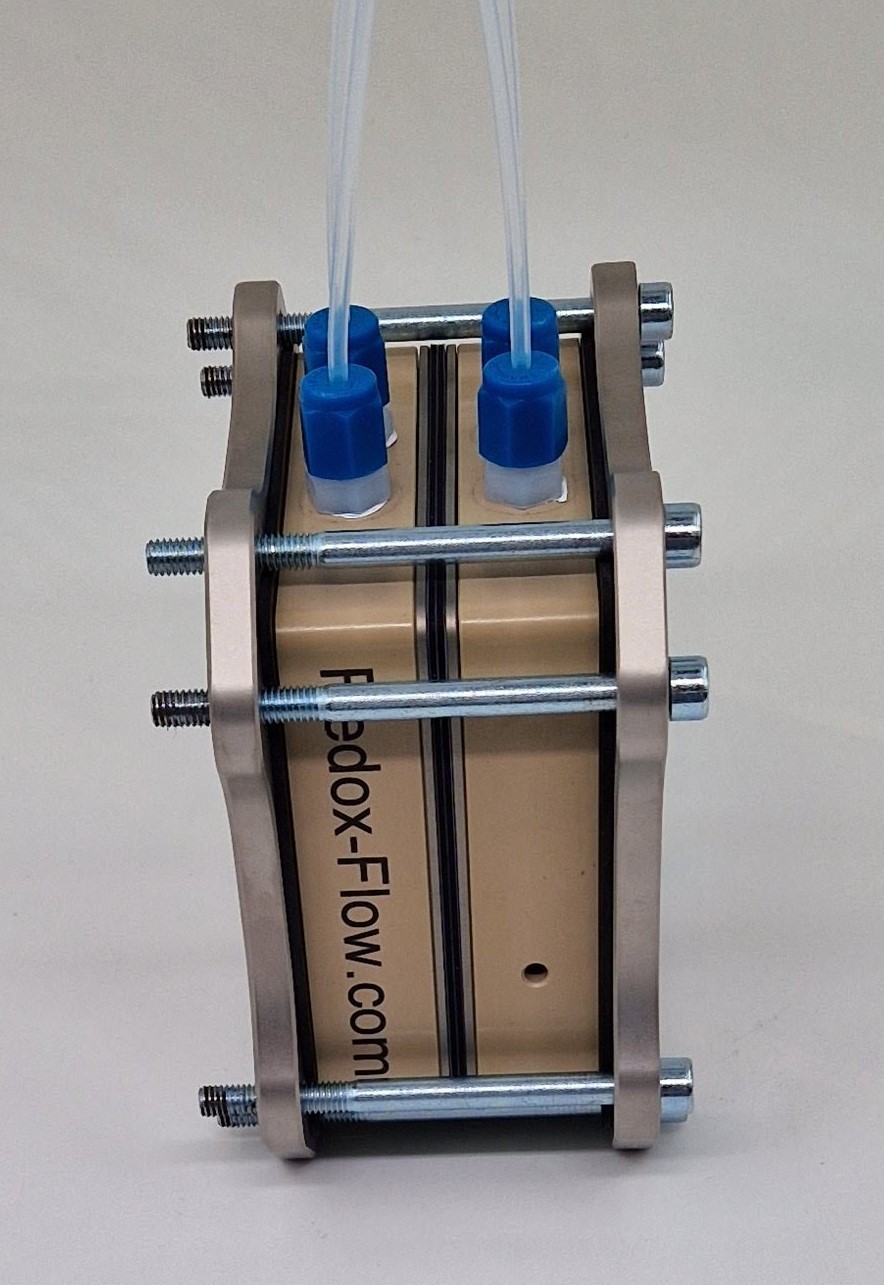

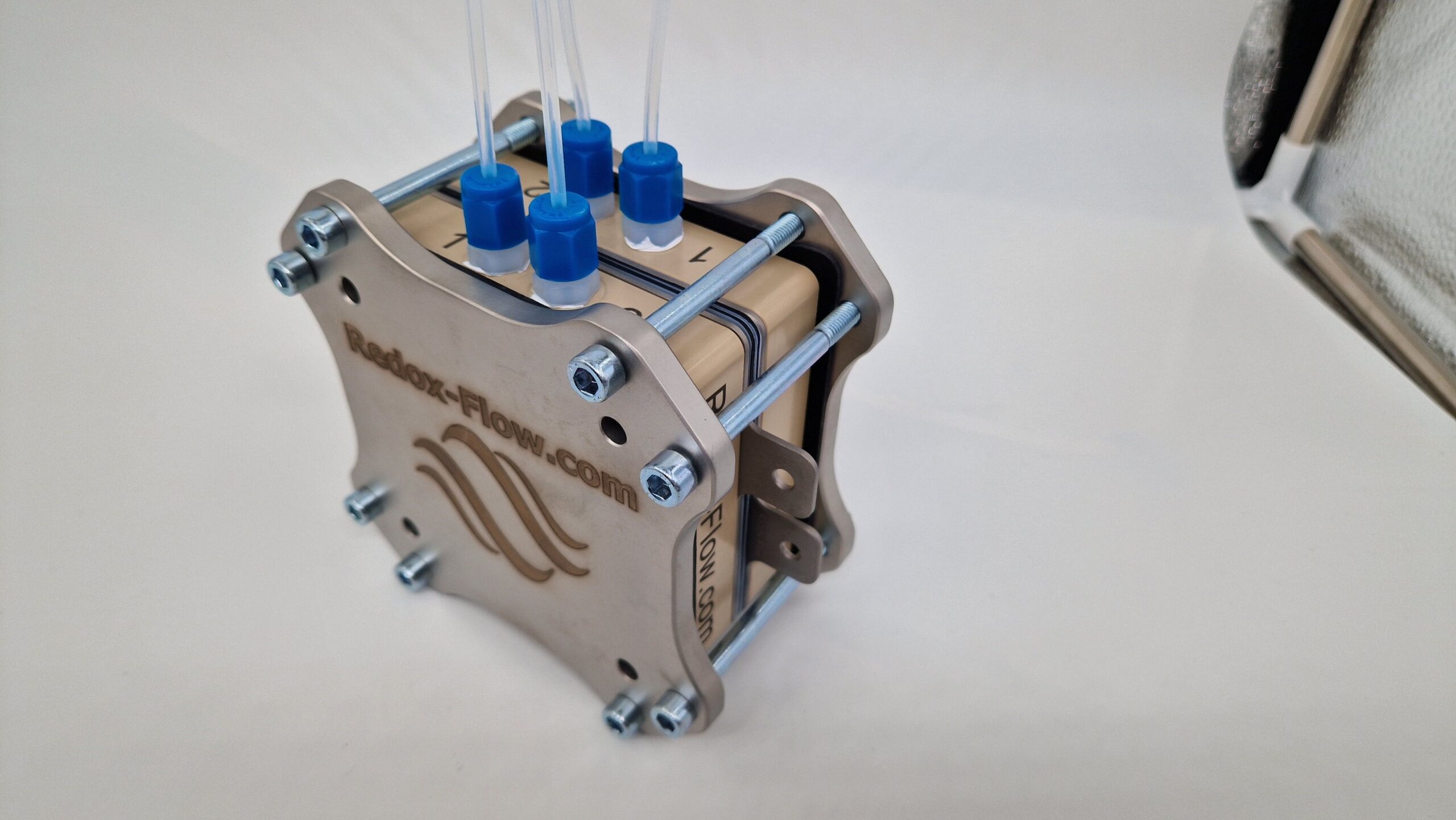

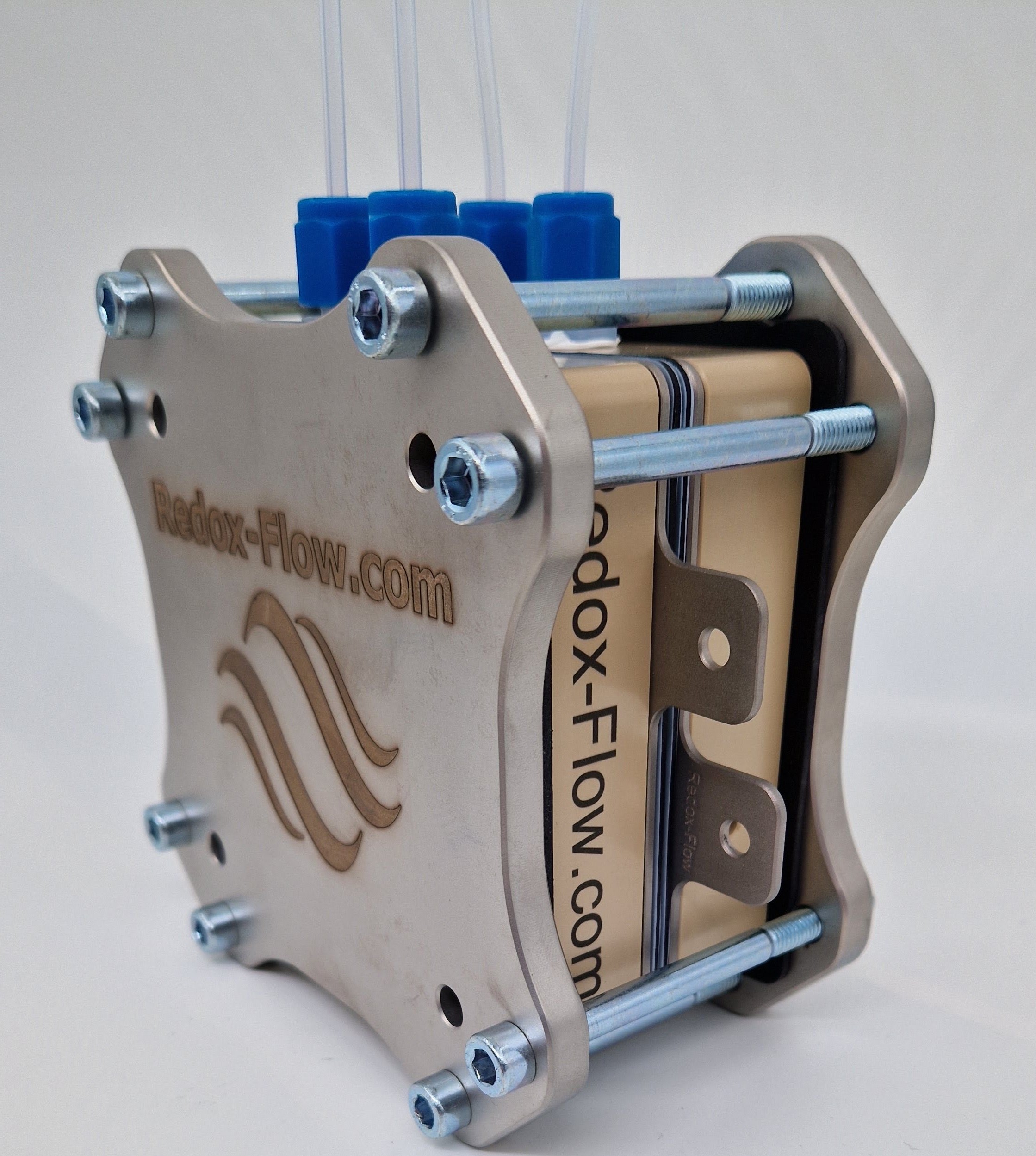

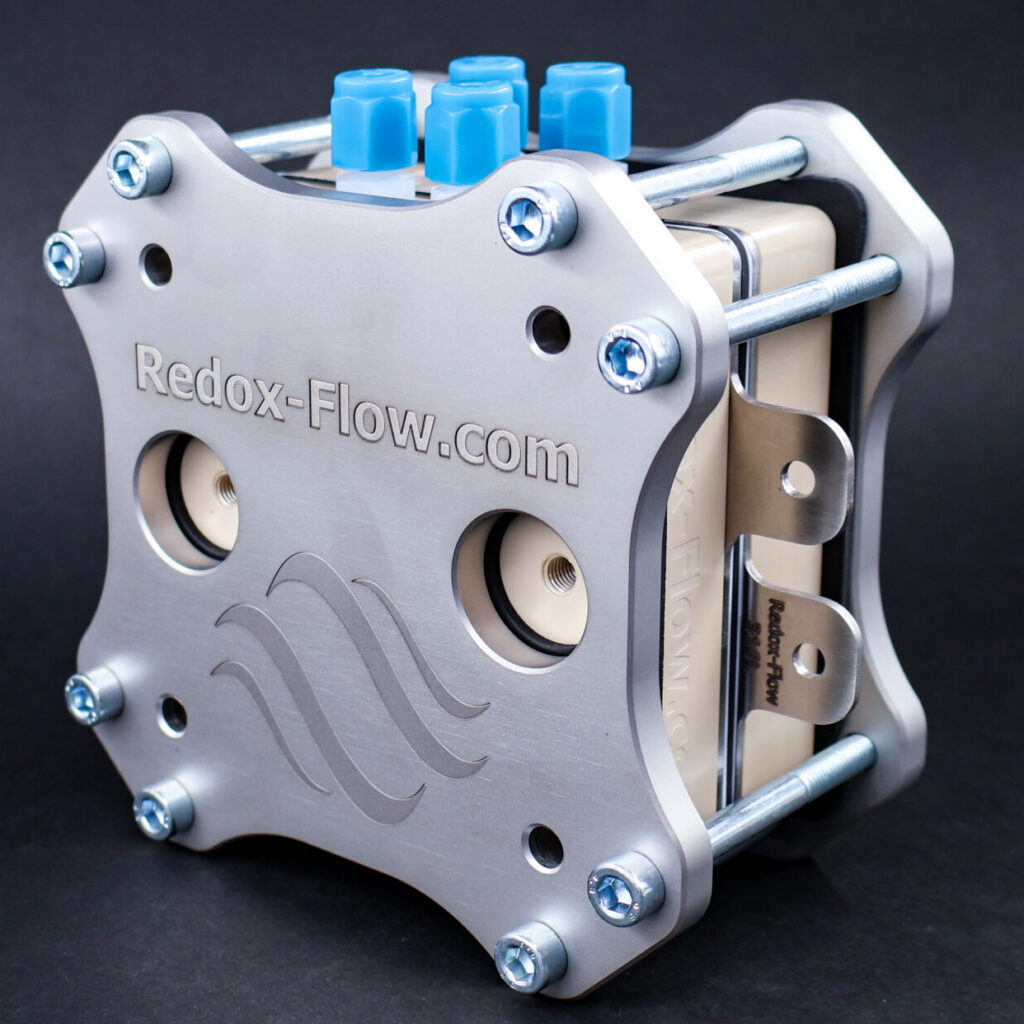

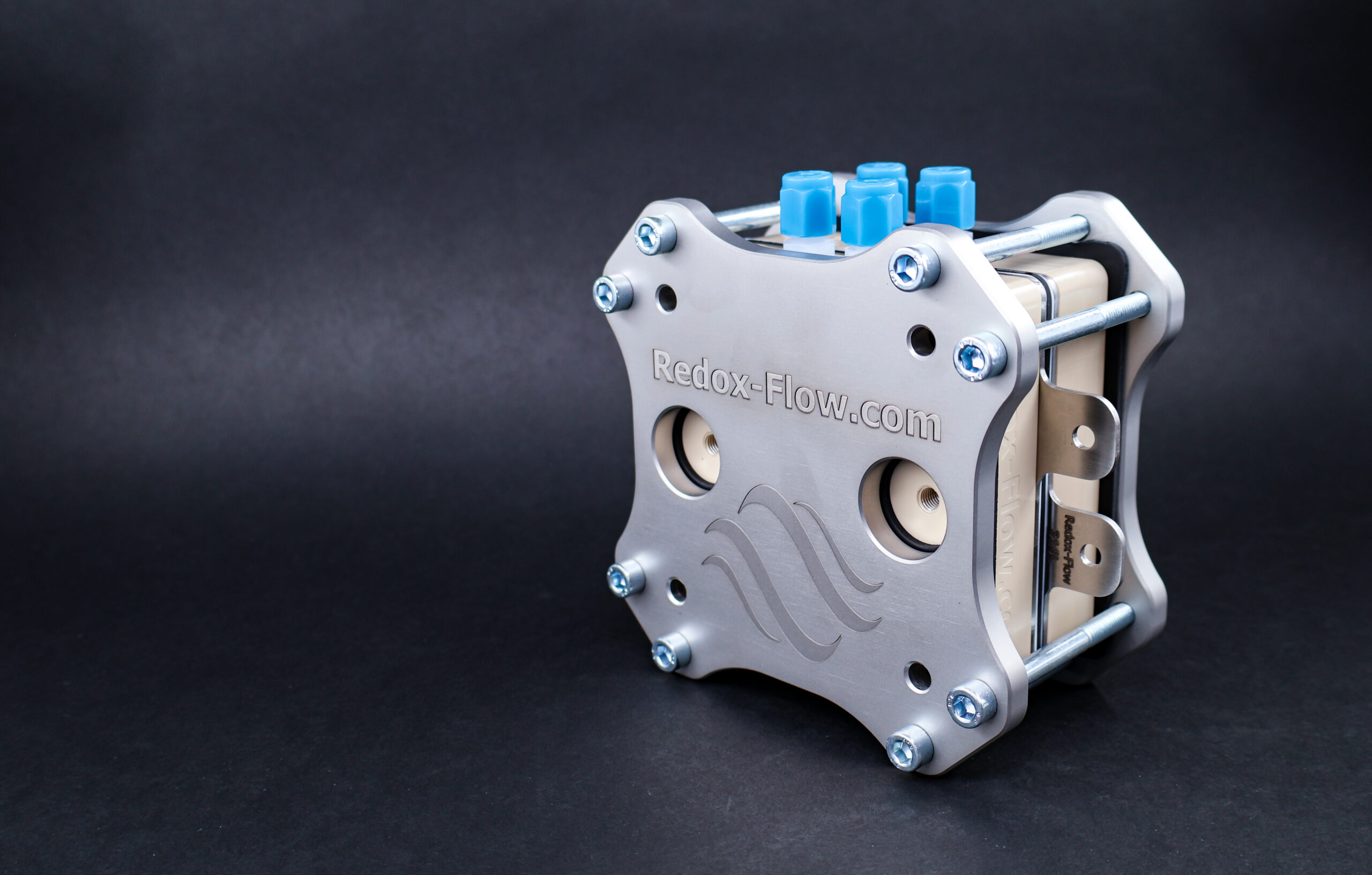

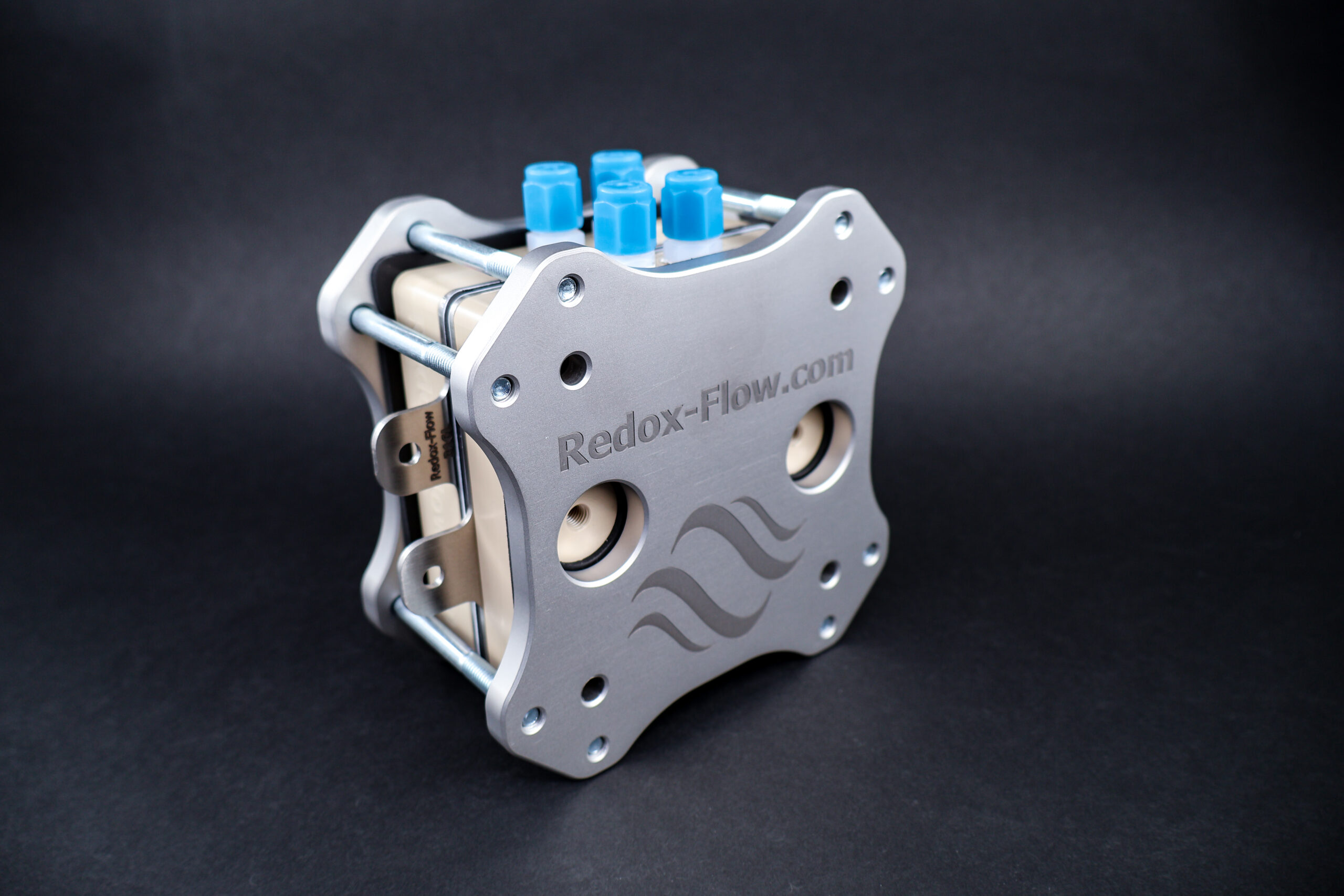

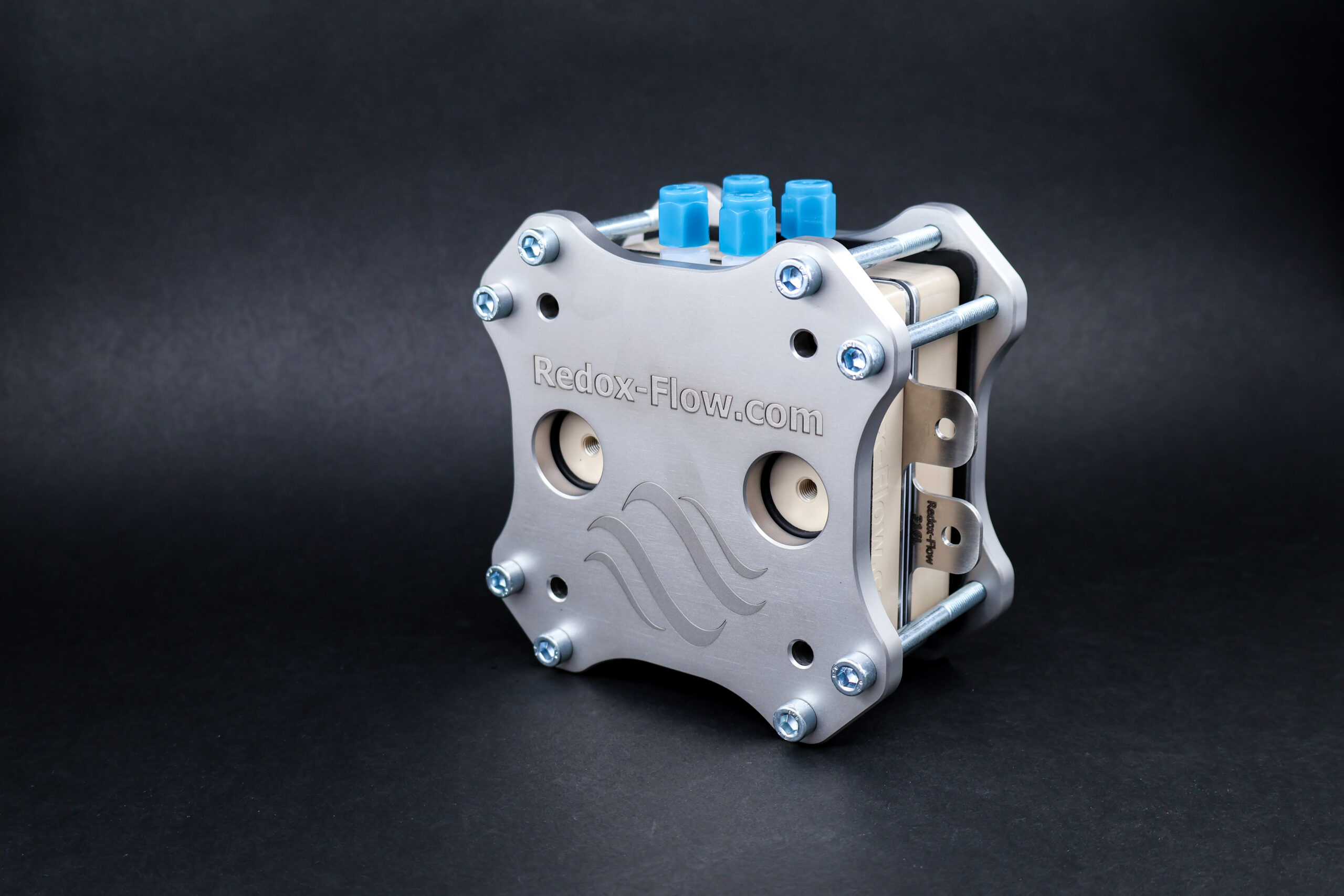

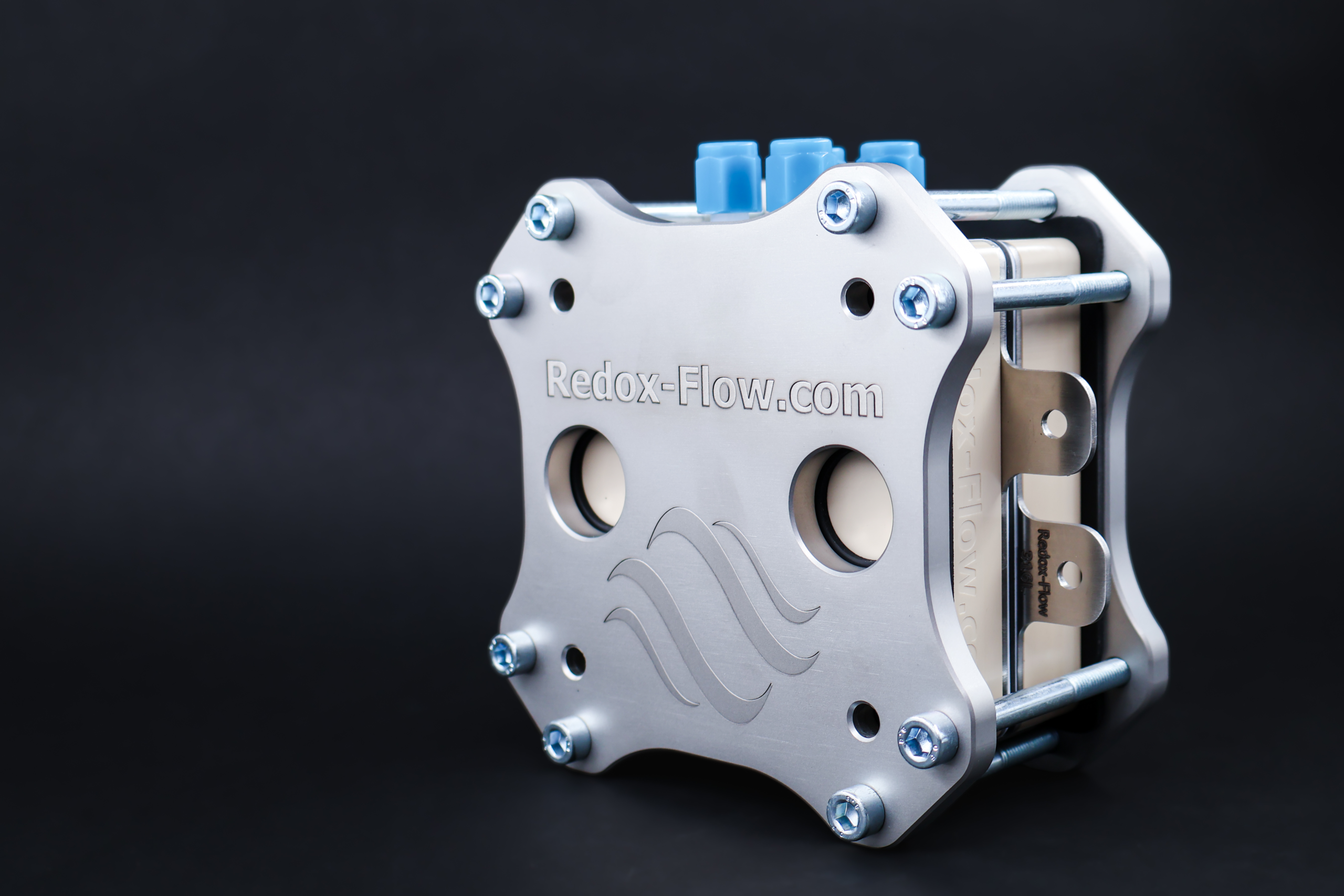

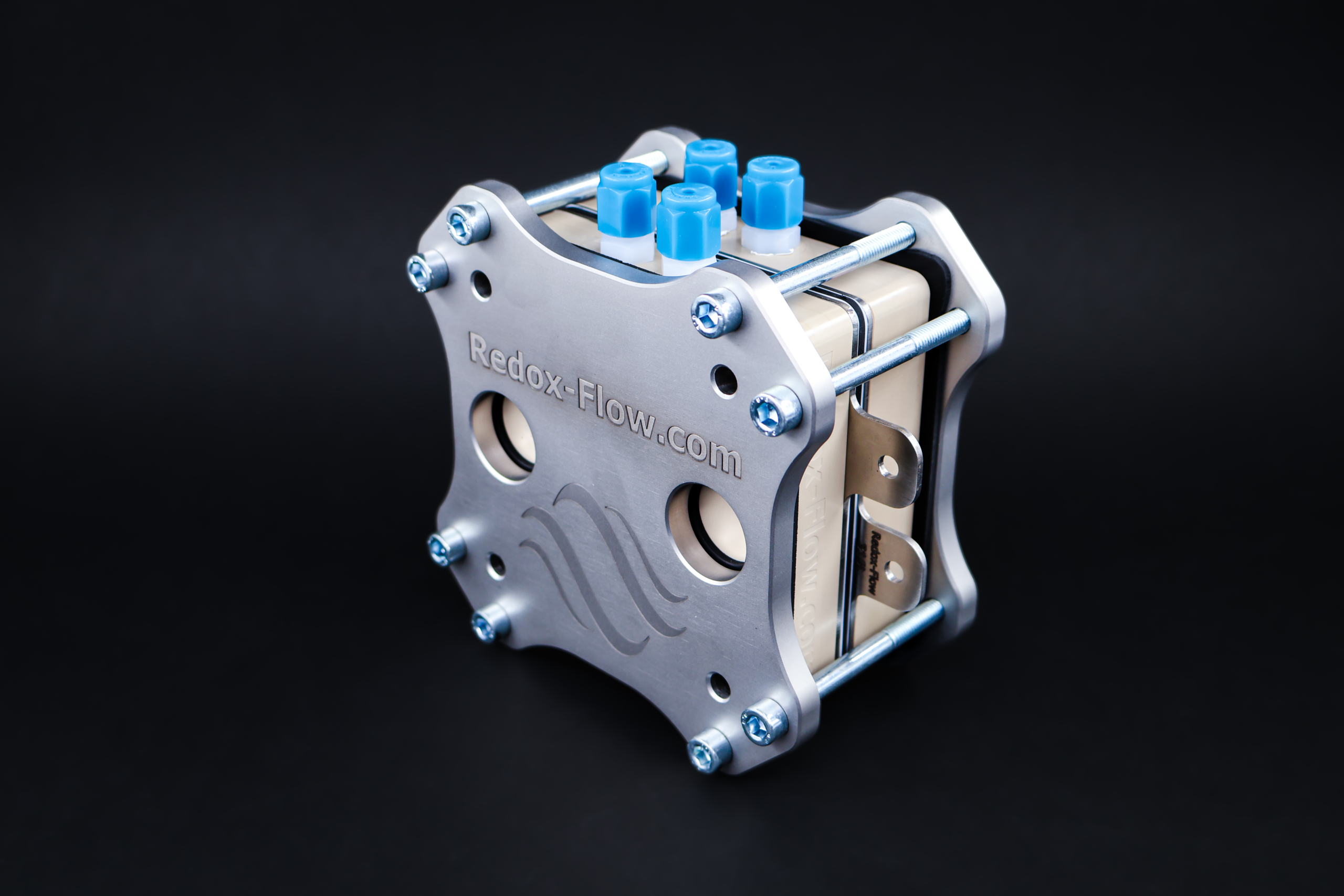

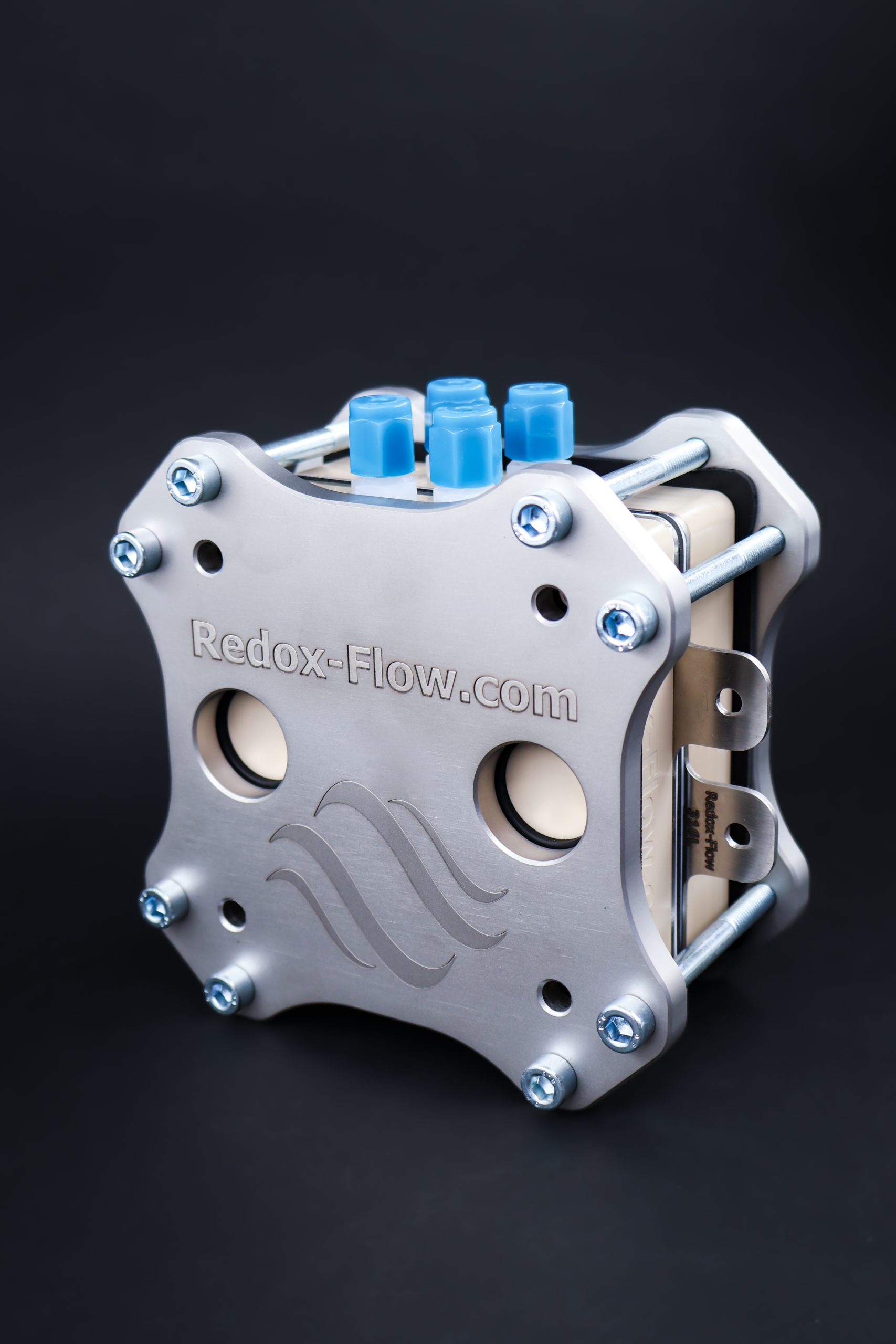

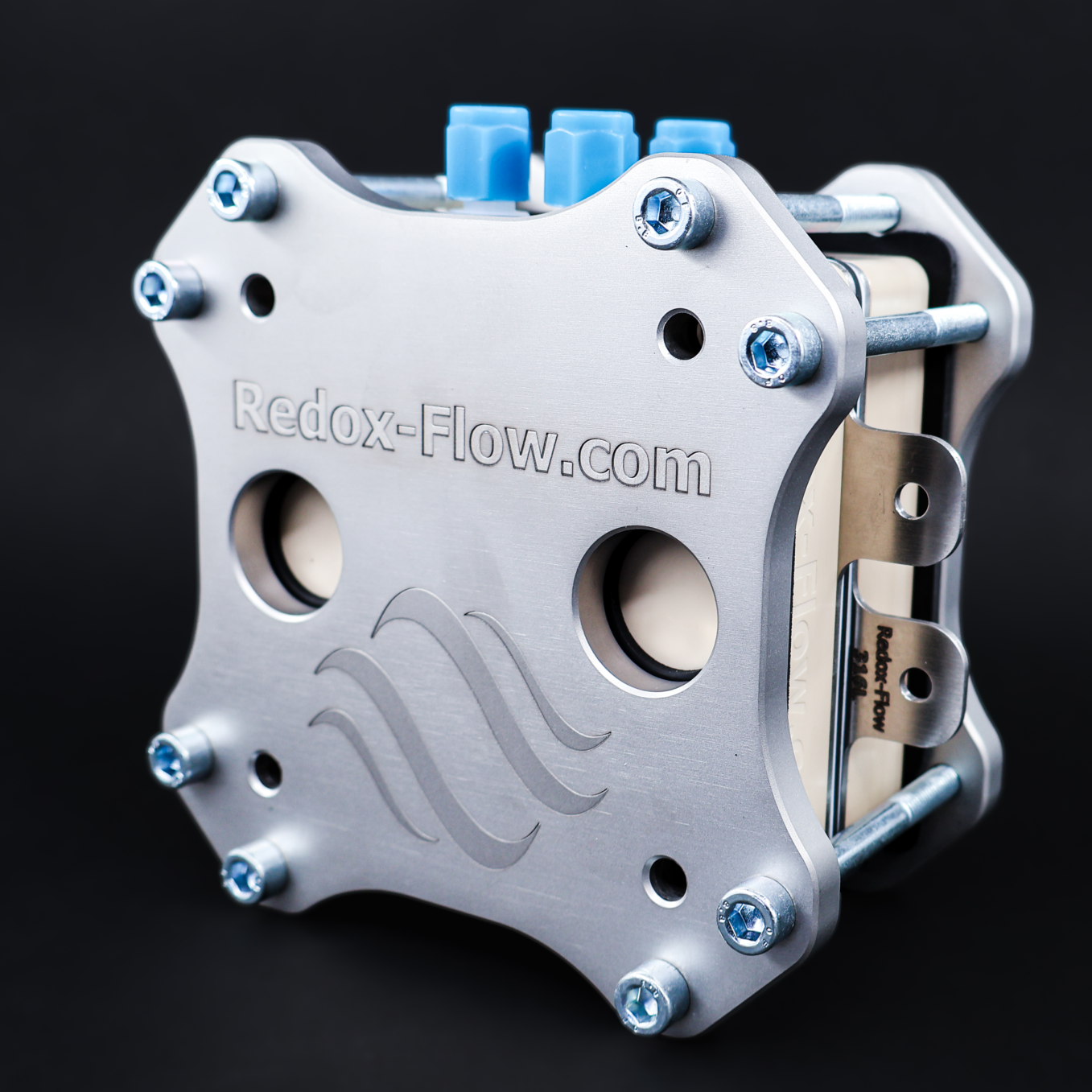

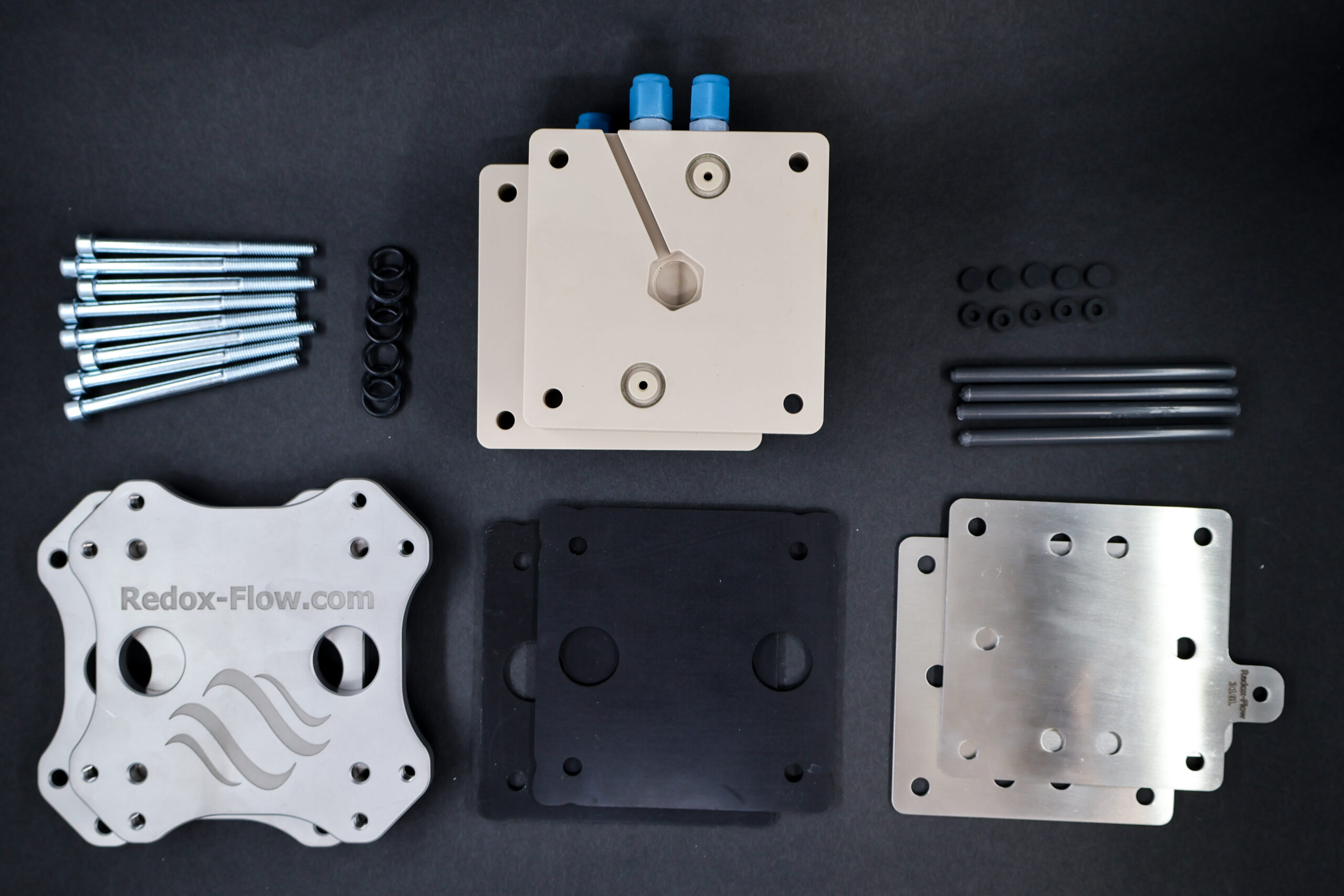

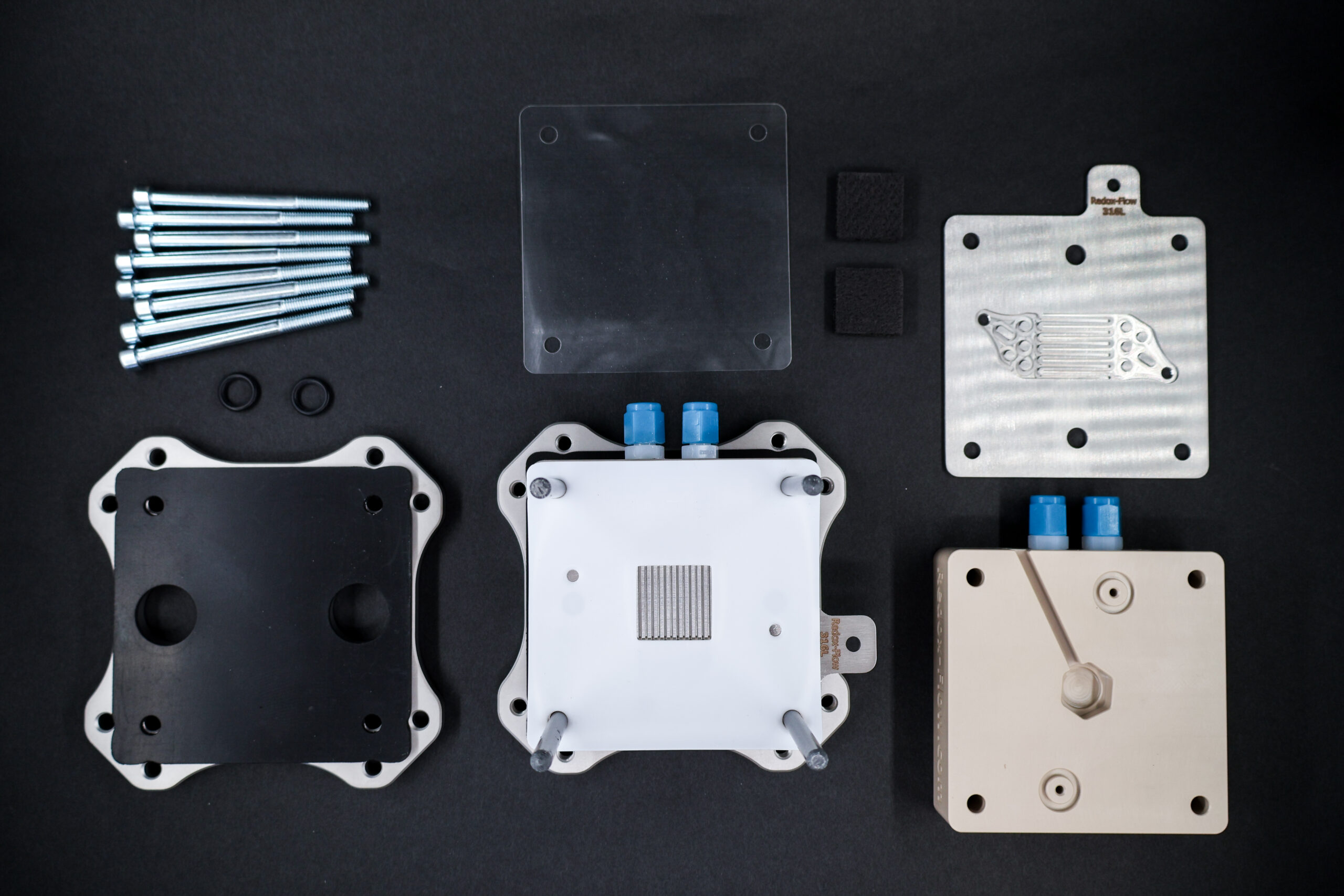

The X-Cell is a modular, high-performance flow cell designed for virtually any electrolysis application. From hydrogen production to CO₂ reduction and redox flow batteries, it adapts to your setup — not the other way around.

  • Build your own cell with interchangeable current collectors
  • Supports PEM, AEM, alkaline, and non-aqueous systems
  • High-temperature, full-pH operation with minimal catalyst contamination
  • Accurate temperature measurement and control
  • Build for fast assembly
  • Designed for high chemical resistance and minimal leaching or catalyst poisoning
  • Compatible with 2.5 × 2.5 cm and 5 × 5 cm active areas

Explore the most versatile electrochemical flow cell on the market.

Configure product

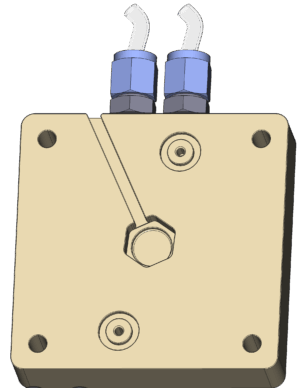

Flow body X-cell × 2

Includes two flow bodies. PEEK is recommended for most applications. For applications involving halogens, PTFE is recommended.

Anode Current Collector

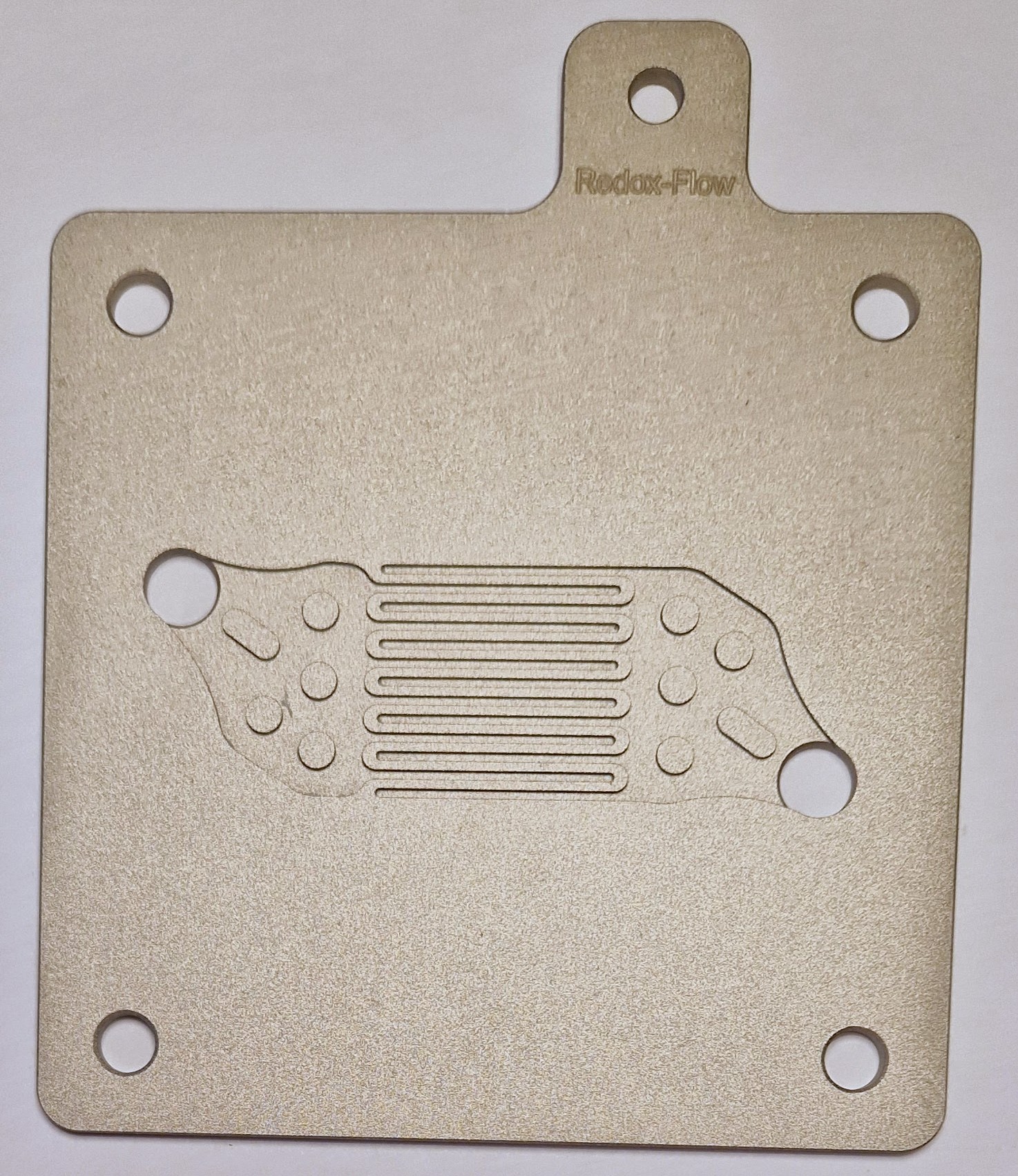

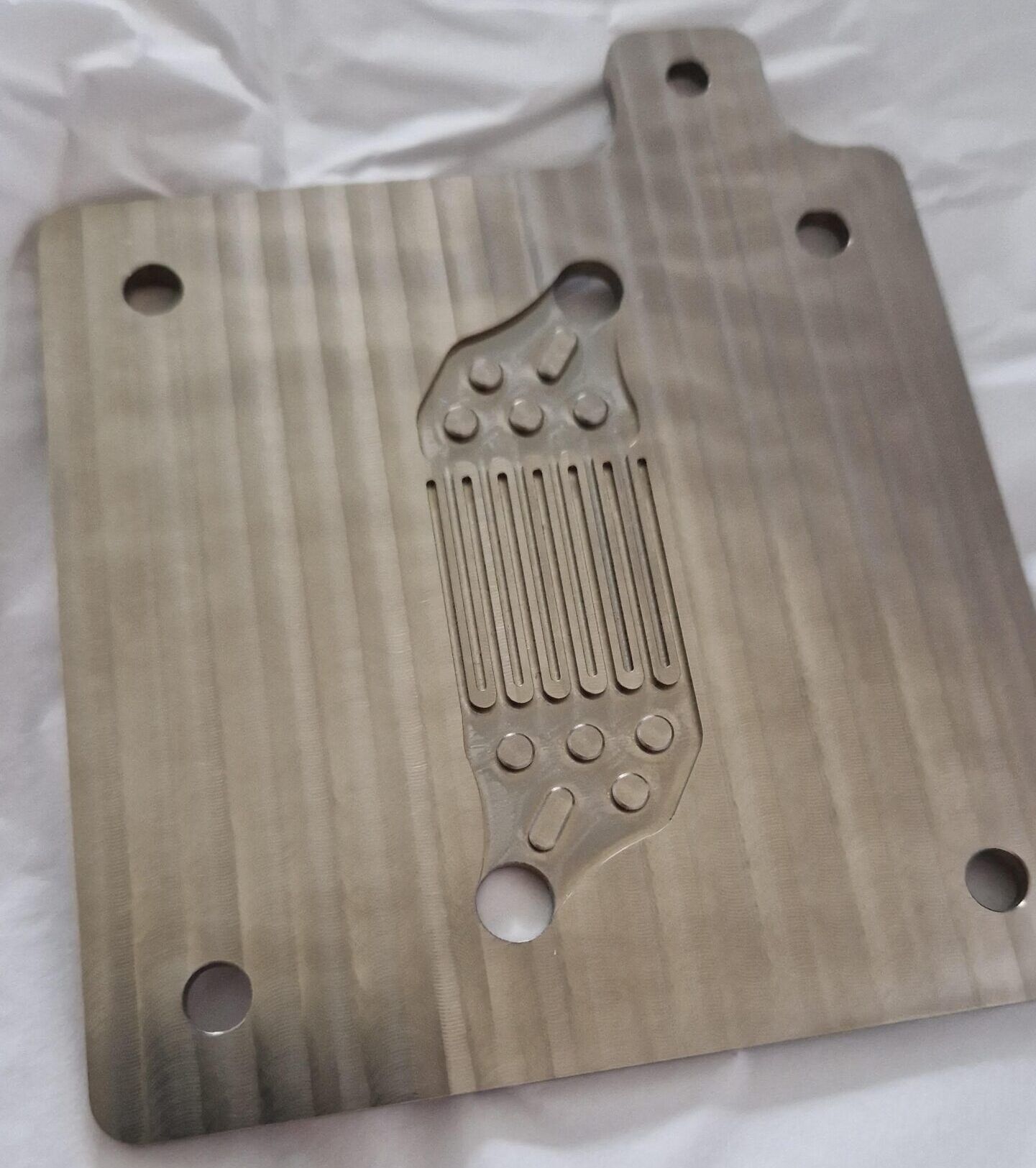

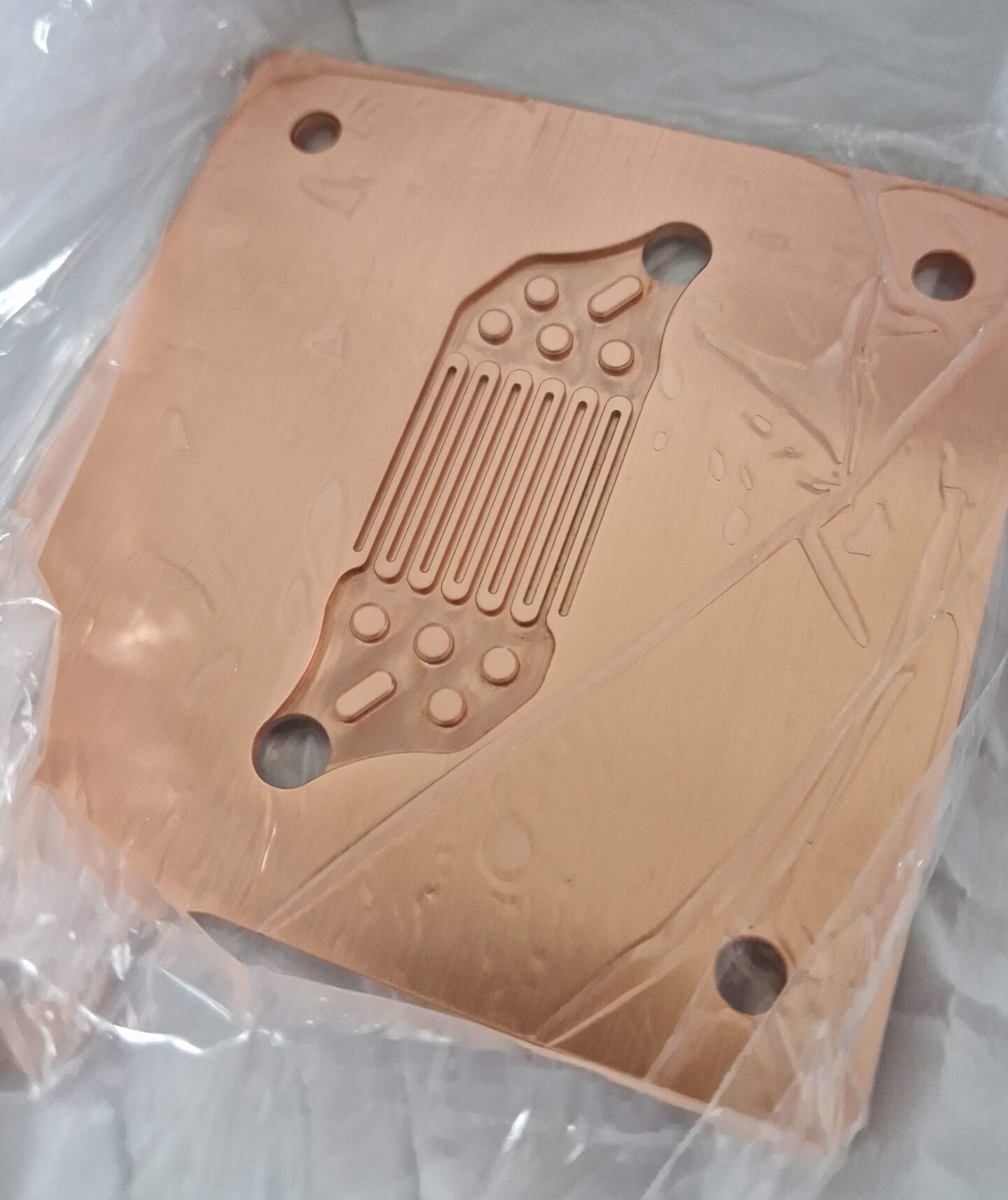

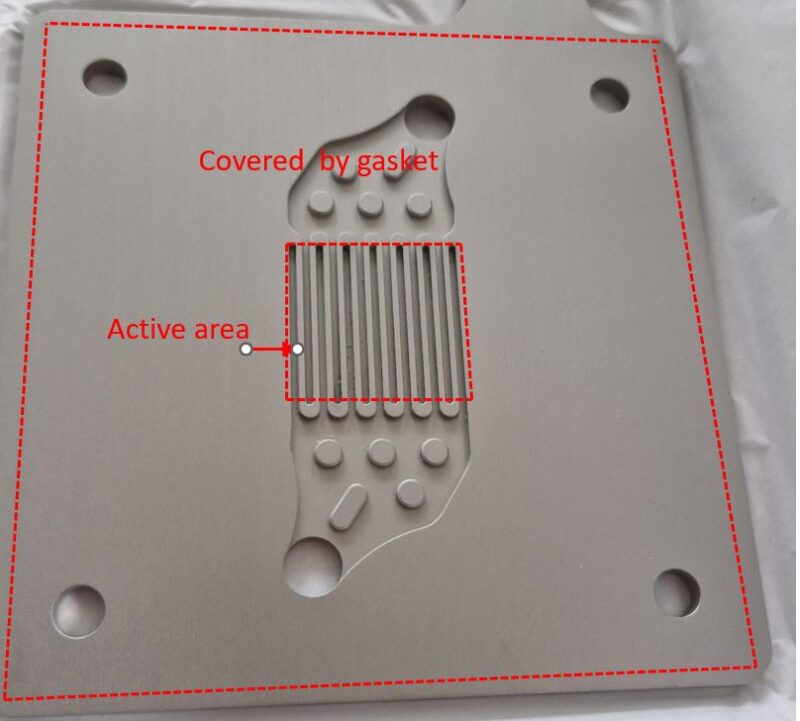

Current collectors for the X-cell with and without flow field (Nickel, Titanium, Stainless Steel and Copper) – For other materials please make an inquiry.

Thickness: 2mm

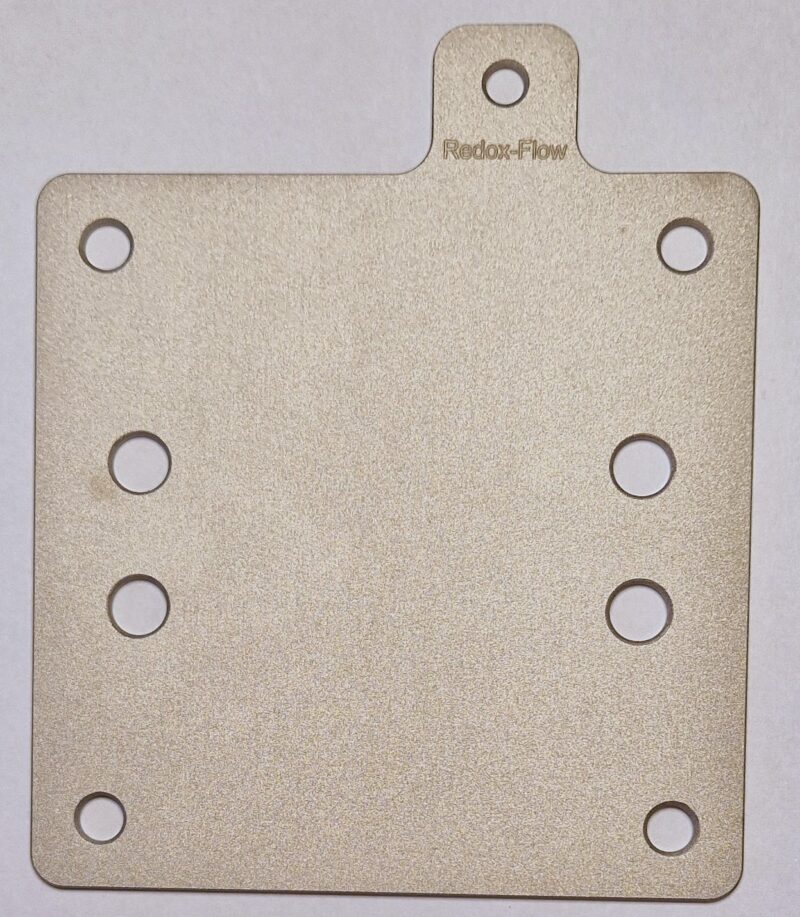

Flat Current Collectors (No Flow Field) are recommended for thick electrodes (>1 mm)

Flow field is recommended for thin electrodes (<1 mm)

Cathode Current Collector

Cover gaskets

Recommend a thin pack in PTFE for most applications.

Extra Cover gaskets

Recommend EPDM or VITON for thicker cover gaskets

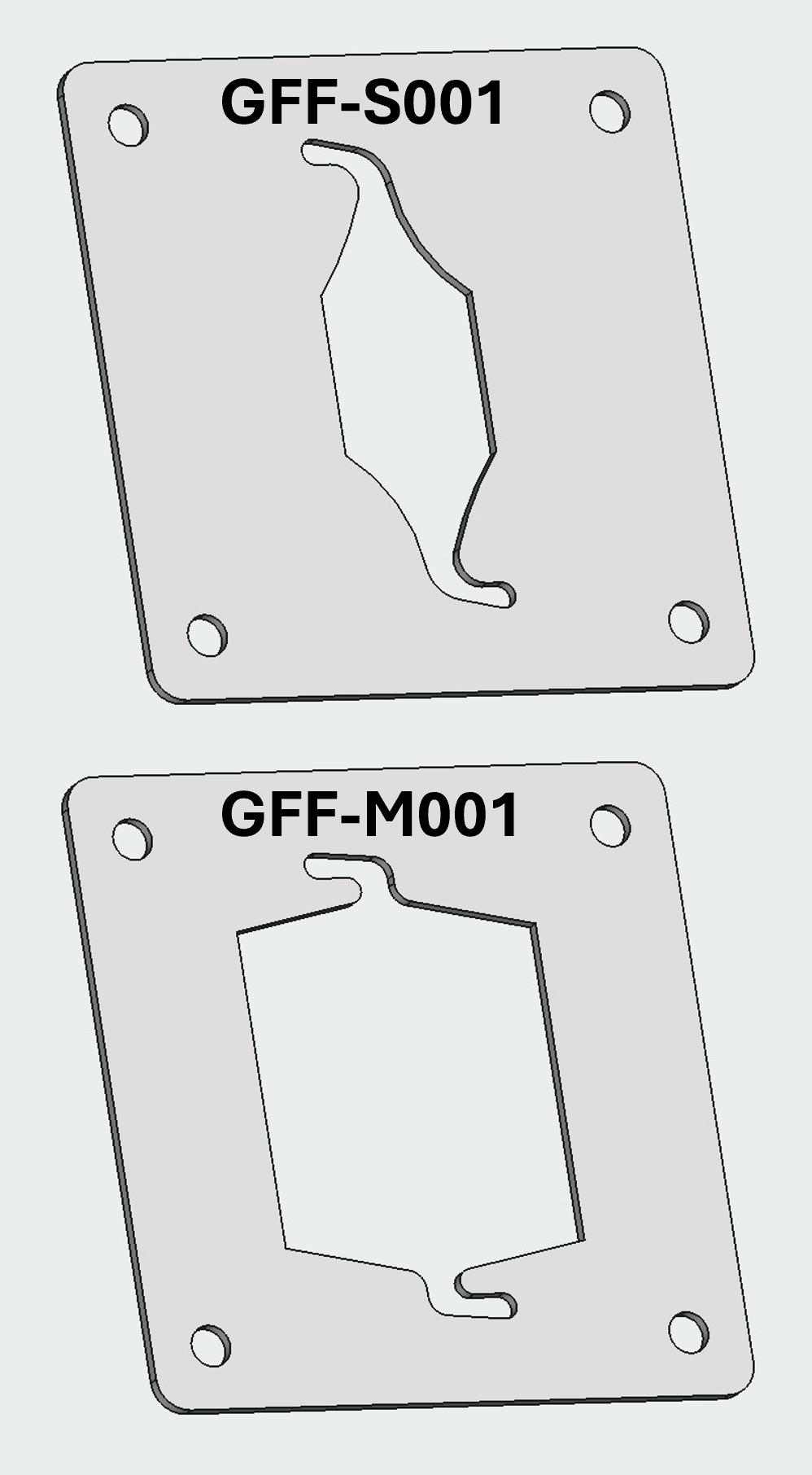

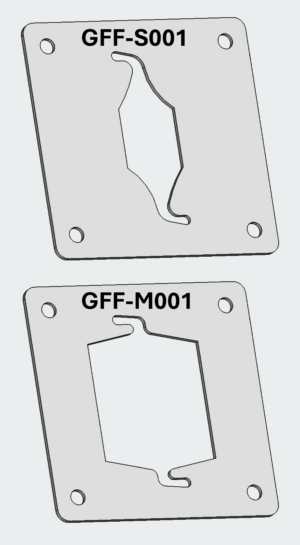

Flow Field gaskets

Used only with flat current collectors
Recommend a Thick pack in either EPDM or Viton for most applications

About the product

Modular Electrolysis Cell for Versatile Flow Applications

The X-Cell is a high-performance, modular electrolysis cell designed for a wide range of electrochemical applications in flow. It is especially suited for research and development where flexibility, chemical compatibility, and ease of configuration are essential. The design allows users to adapt the cell to specific experimental needs without switching platforms. It is compatible with all our other electrochemical flow-cells, such as the S-Cell and A-Cell

Key Features and Flexibility

  • Fully modular design with interchangeable current collectors
  • Choice of flat surface or flow-field collectors, which can be combined in asymmetric configurations
  • Standard materials include nickel, stainless steel, titanium, copper, and platinum-coated titanium
  • Compatible with both ion exchange membranes and porous separators
  • Operates with a wide variety of electrolytes, including acidic, neutral, and alkaline solutions
  • Designed for high chemical resistance and minimal leaching or catalyst poisoning
  • Suitable for operation at elevated temperatures (up to 90 °C)
  • Active area options: 2.5 × 2.5 cm and 5 × 5 cm (interchangeable)

Gasket Configuration

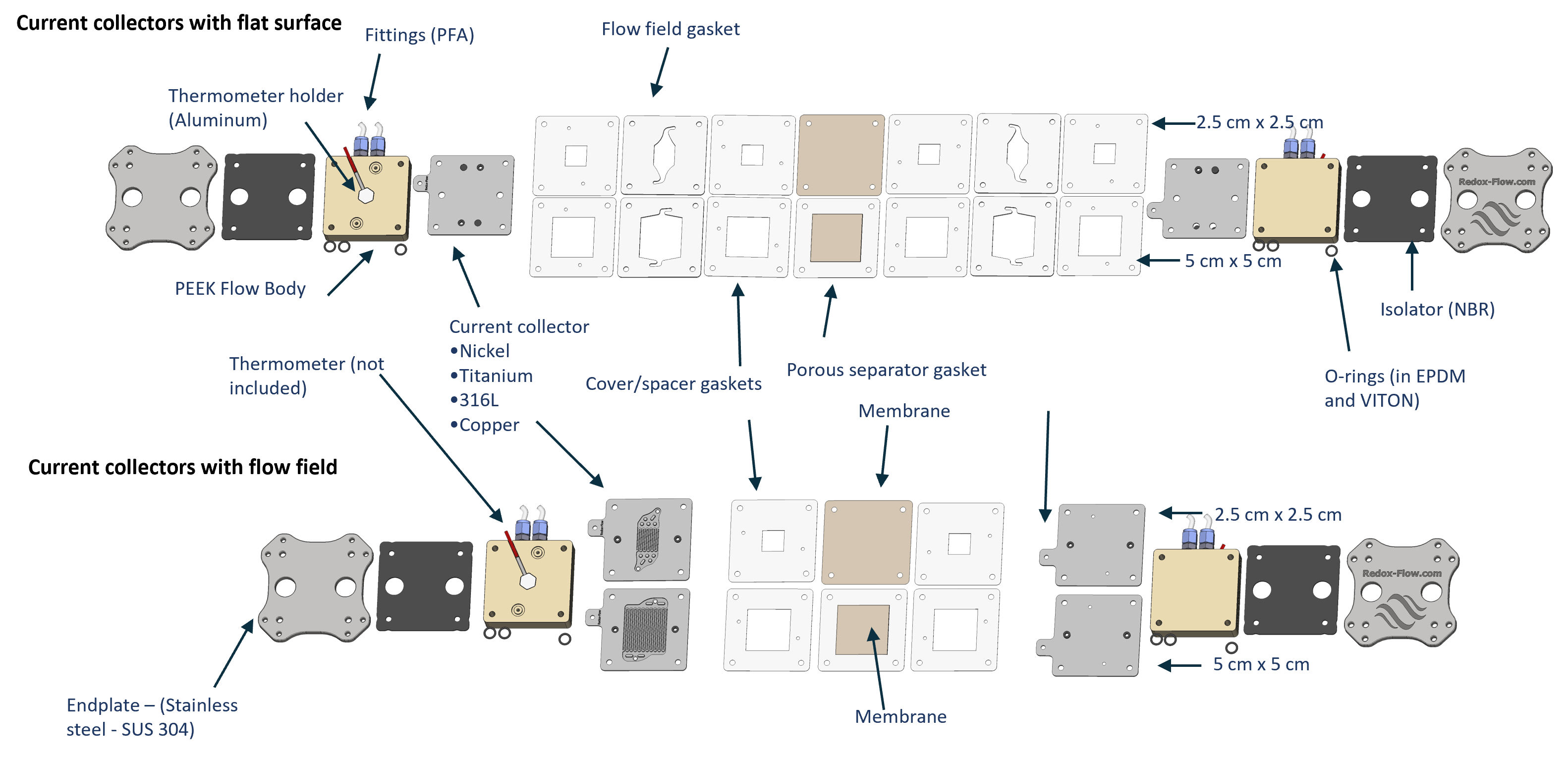

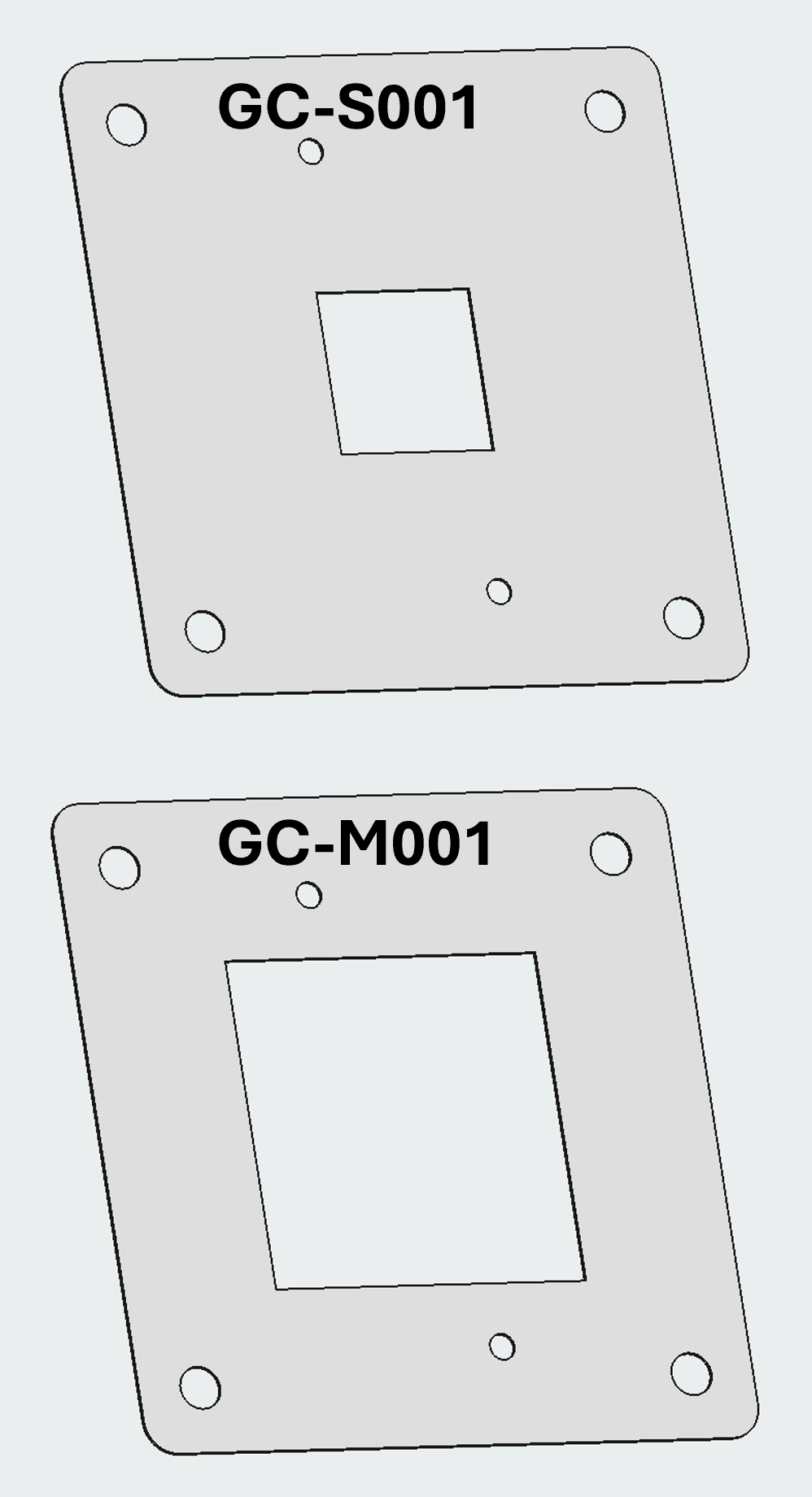

Gasket selection depends on electrode thickness and whether flat or flow-field current collectors are used:

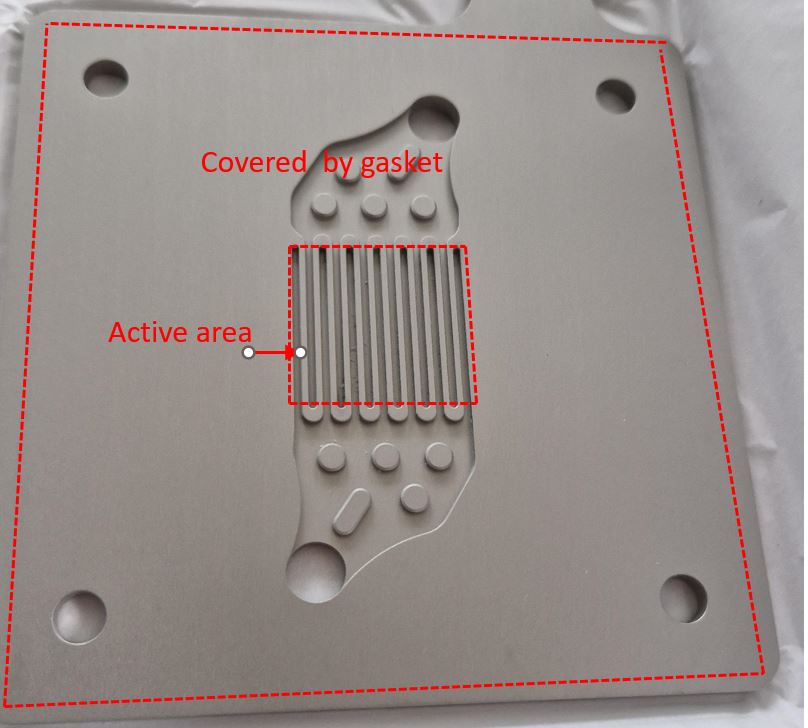

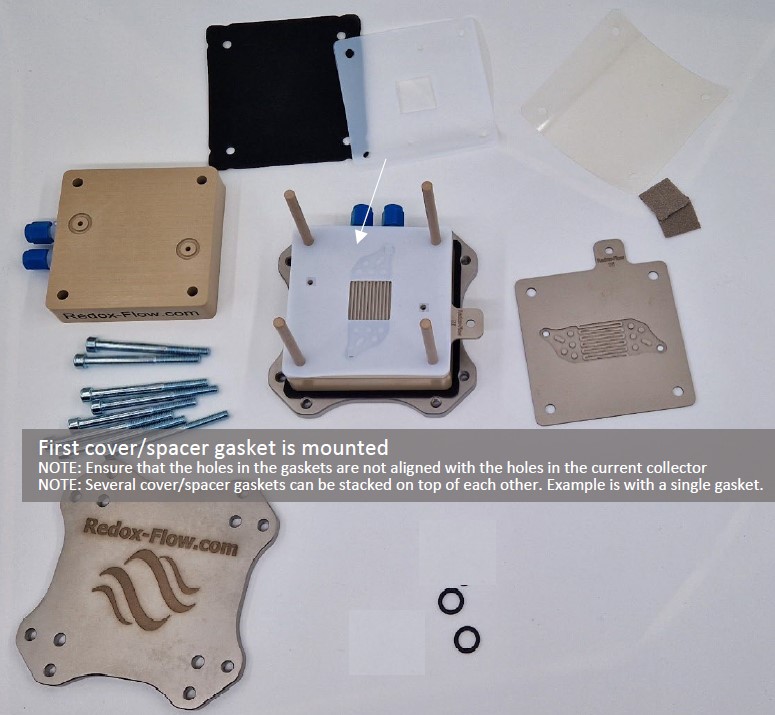

  • For flat collectors: both flow-field and cover gaskets are required. Flow-field gaskets should be at least 0.5 mm thick (1 mm recommended). Cover gaskets are used to fine-tune the total thickness.
  • For flow-field collectors: only cover gaskets are needed. For electrodes over 0.5 mm, use EPDM or VITON to improve sealing.

Temperature Monitoring and Control

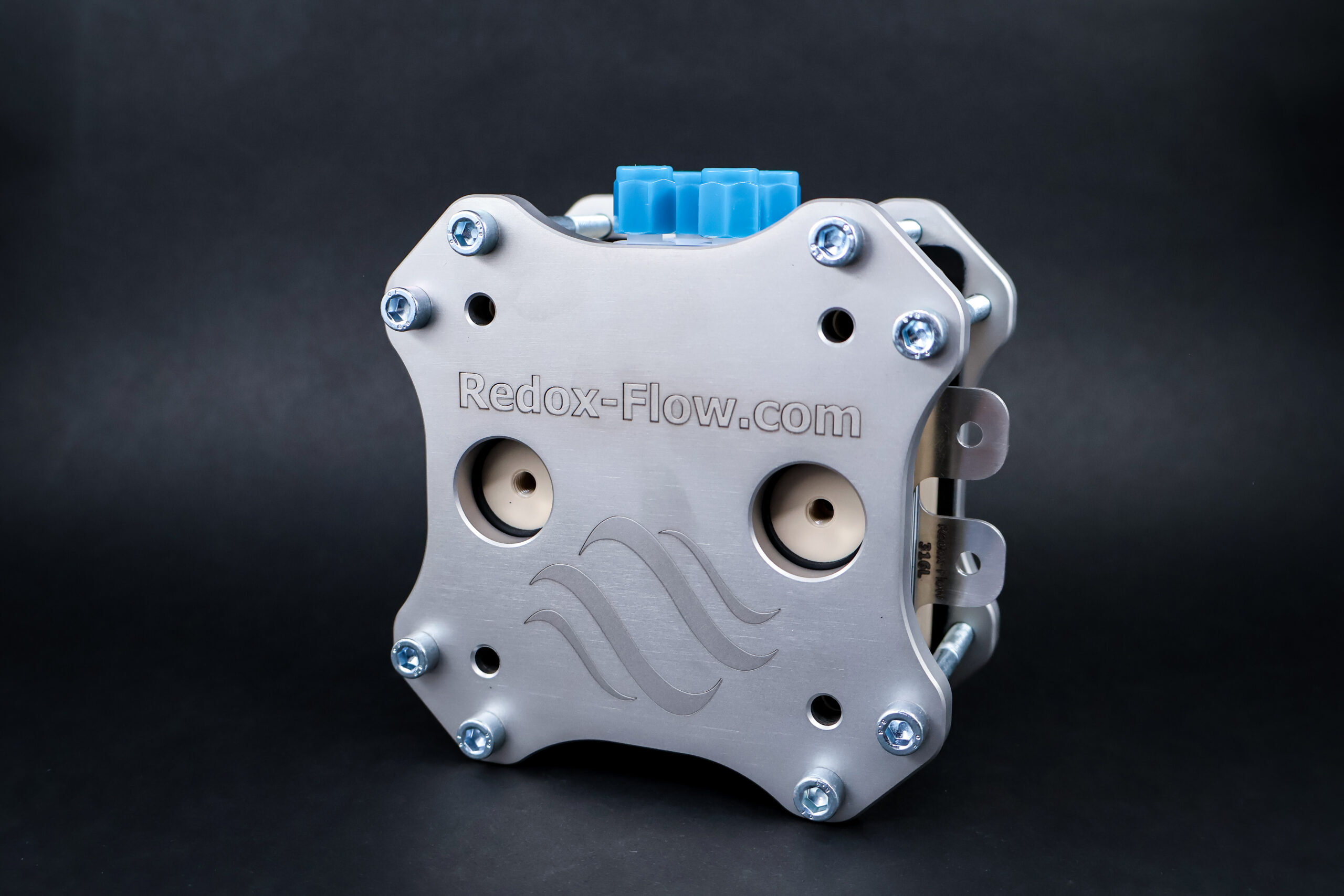

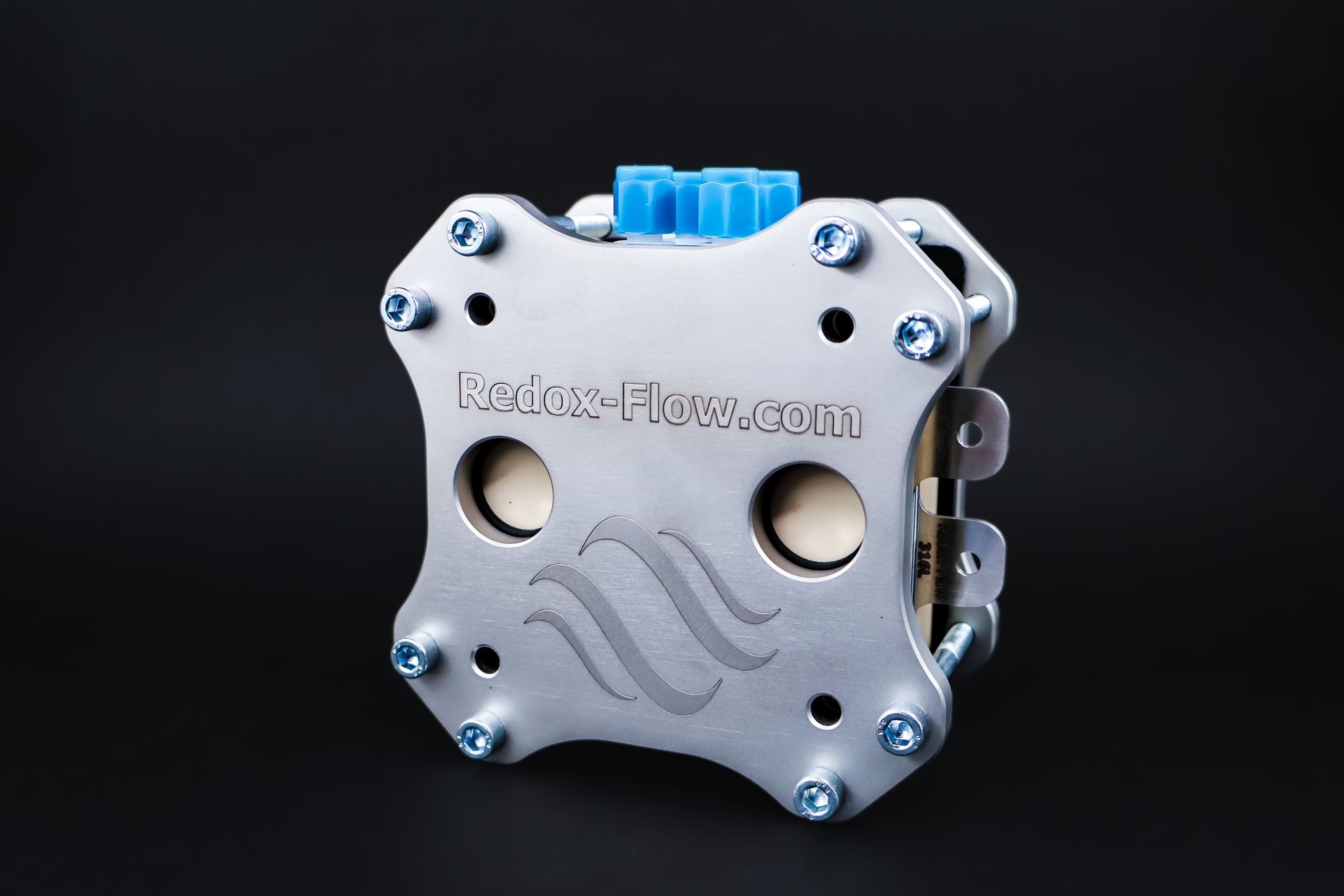

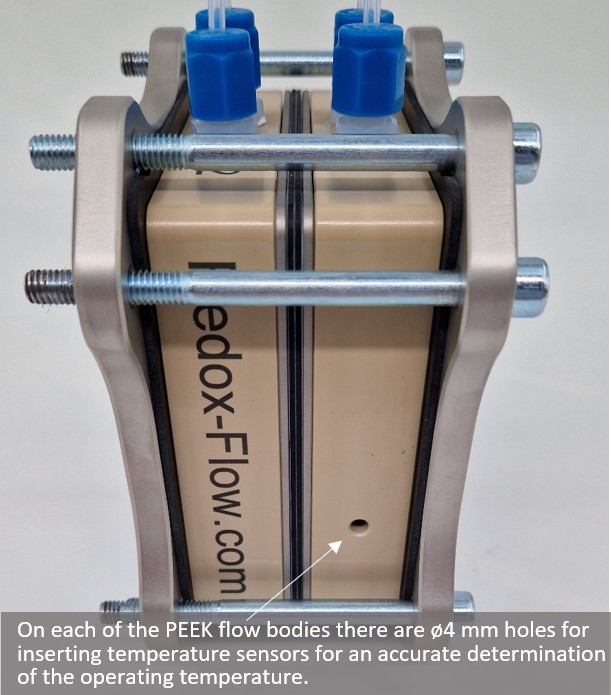

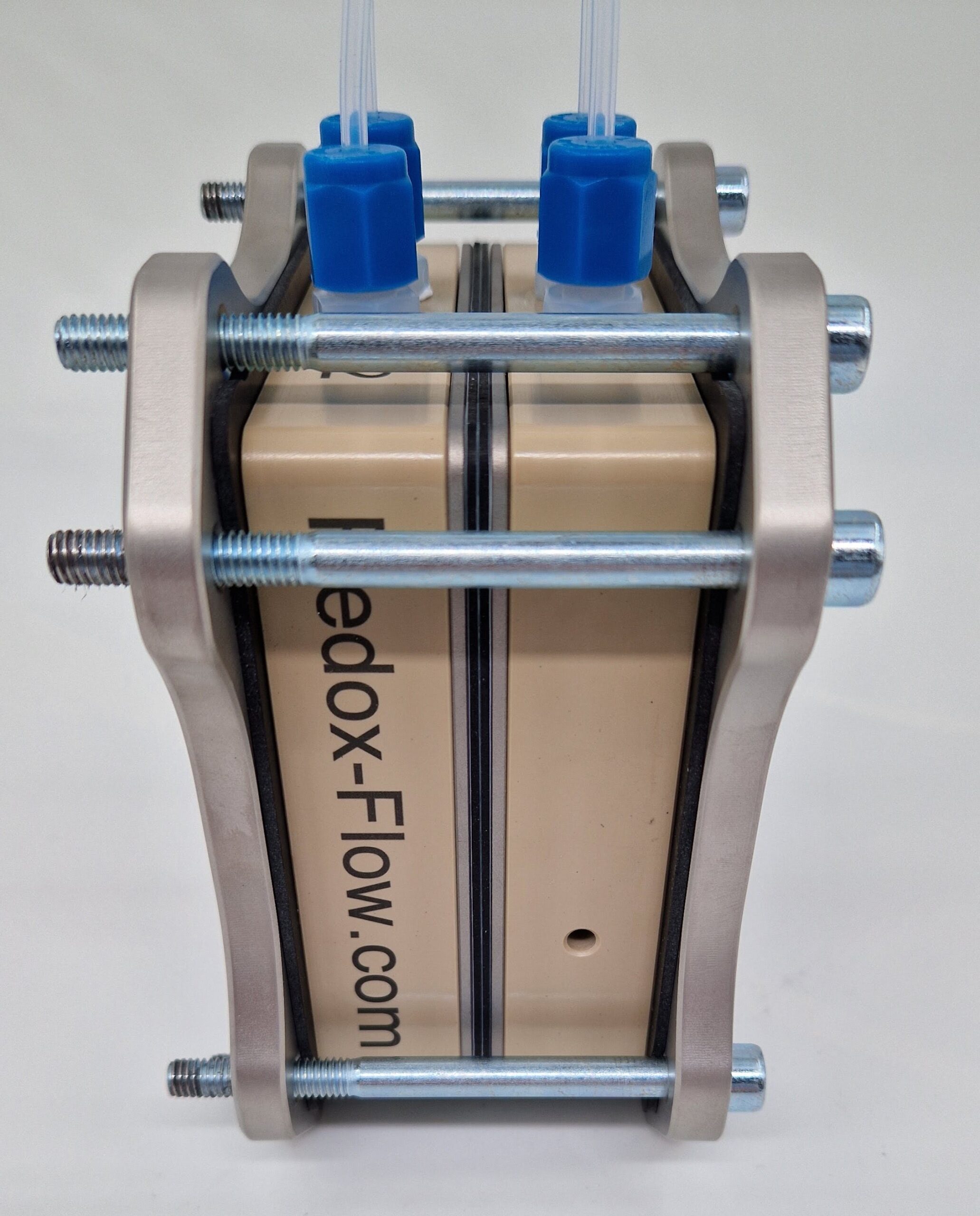

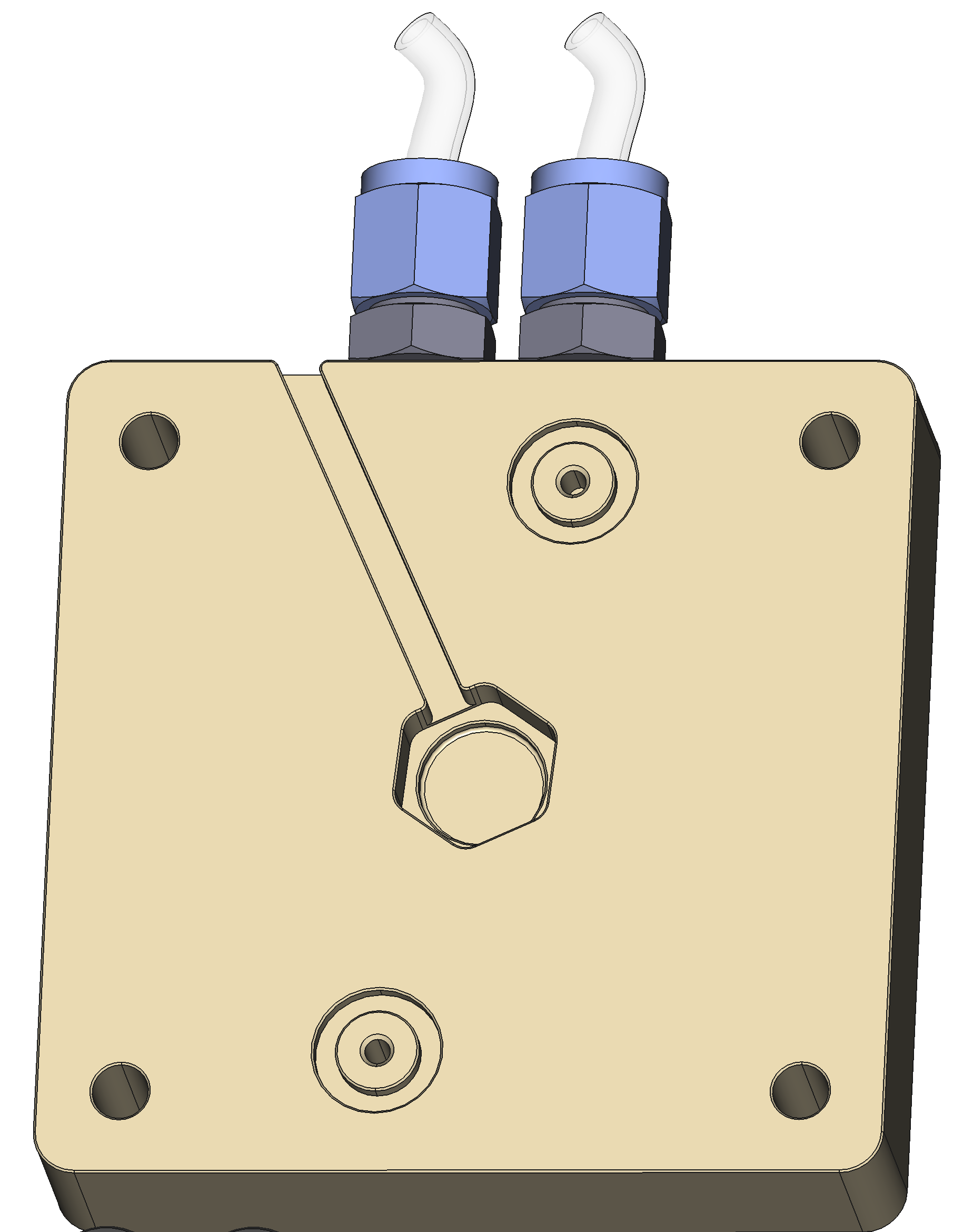

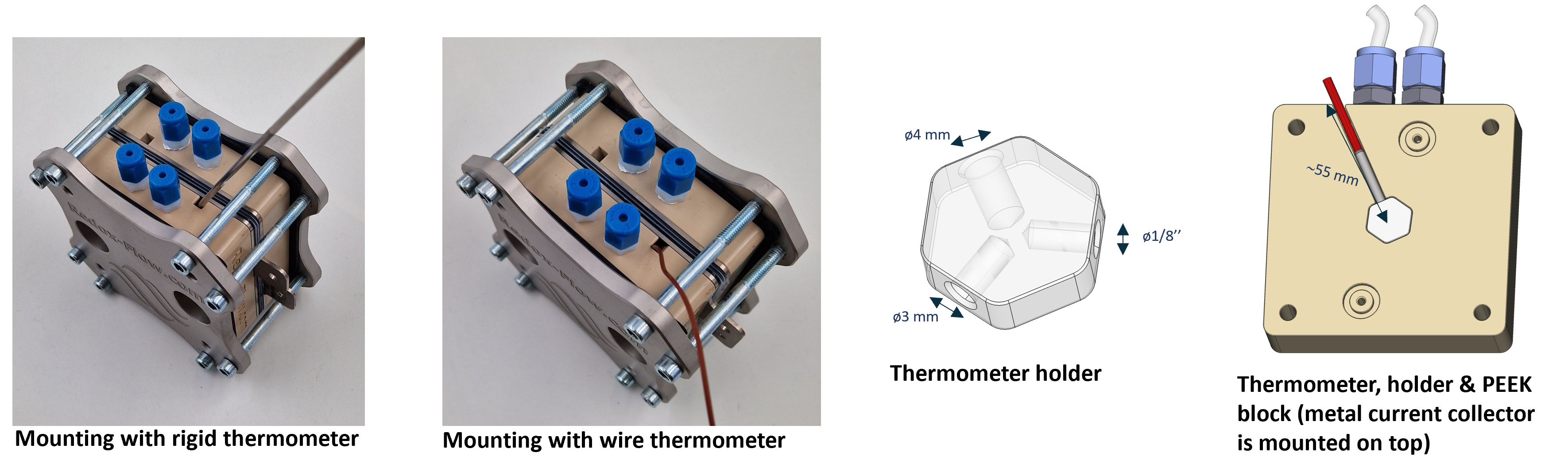

The latest version of the X-Cell (launched April 2025) includes an integrated temperature measurement system. An aluminum sensor block is embedded in the PEEK flow body and pressed against the current collector to enable accurate temperature readings. It supports common thermometer and thermocouple sizes (3 mm, 4 mm, and 1/8″).



This system can be used in combination with a dedicated temperature control setup based on a flow heat exchanger principle. See our Temperature Control Solution.

System Integration and Instrumentation

The X-Cell integrates with a range of Redox-Flow.com test equipment:

Application Areas

The X-Cell supports a broad range of electrochemical processes, including:

  • Alkaline water electrolysis
  • PEM and AEM water electrolysis
  • CO₂ electrolysis and electrochemical reduction (see also 3-compartment X-Cell)
  • Electrochemical metal recovery and refining
  • Desalination and ion removal
  • Organic electrosynthesis and non-aqueous systems
  • Redox flow battery testing
  • General-purpose electrochemical flow testing
  • Active Area: 2.5cm x 2.5cm and 5cm x 5cm – for other active areas please make an inquiry
  • Current collectors with and without flow field – any electrode thicknesses

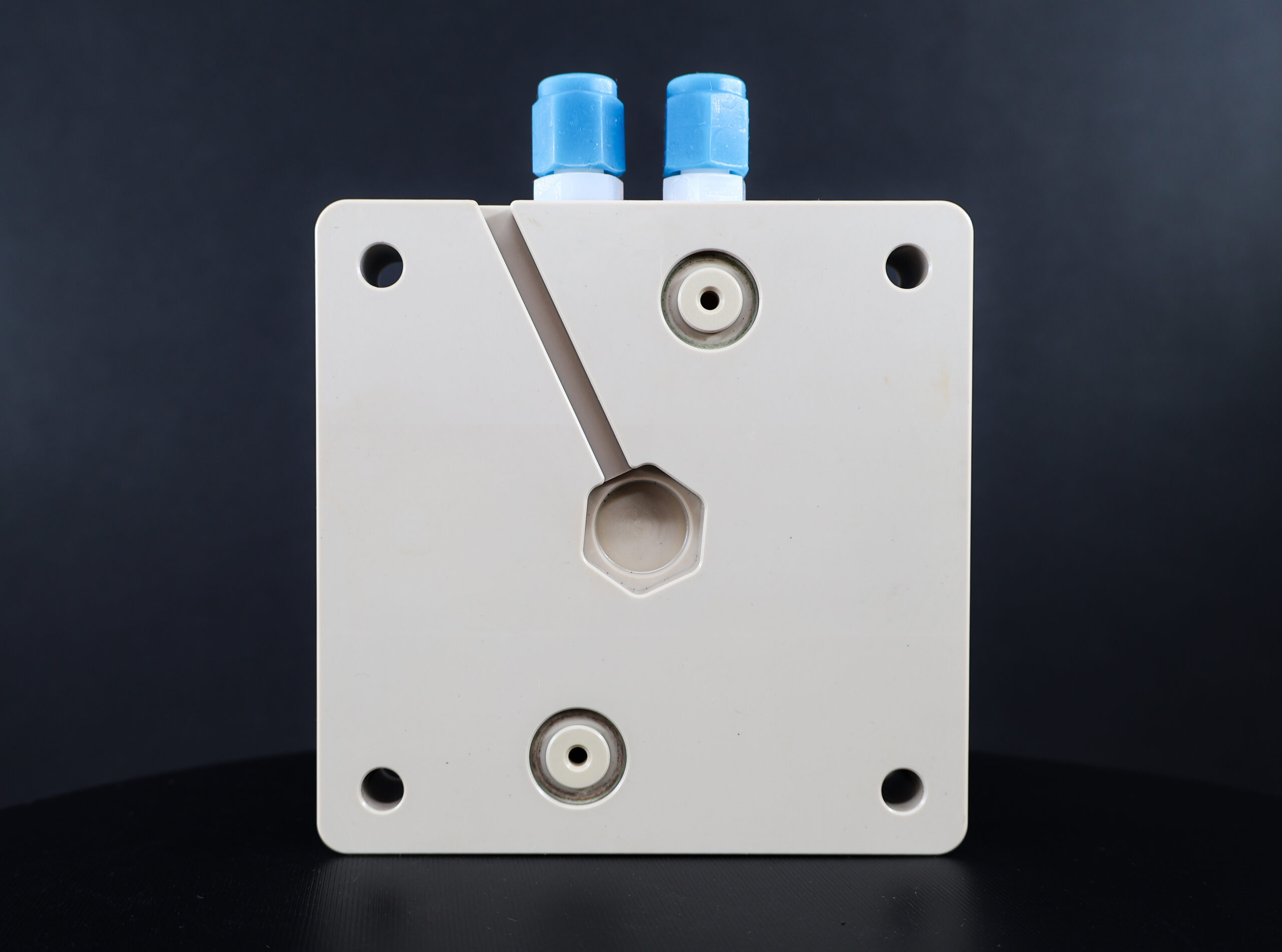

  • Main flow body is machined in highly corrosion resistant PEEK
  • Can be operated up to 95°C
  • Full pH range – depending on current collector and gasket materials
  • Standard materials for current collectors: Nickel, Titanium, Stainless Steel and Copper – for other materials please make an inquiry, we can do many
  • Swagelok fittings for tight connecting to 1/8” tubing – For other tubing dimensions please make a request
  • Gaskets/Spacers Materials: PTFE, EPDM or VITON



PERFORMANCE DATA

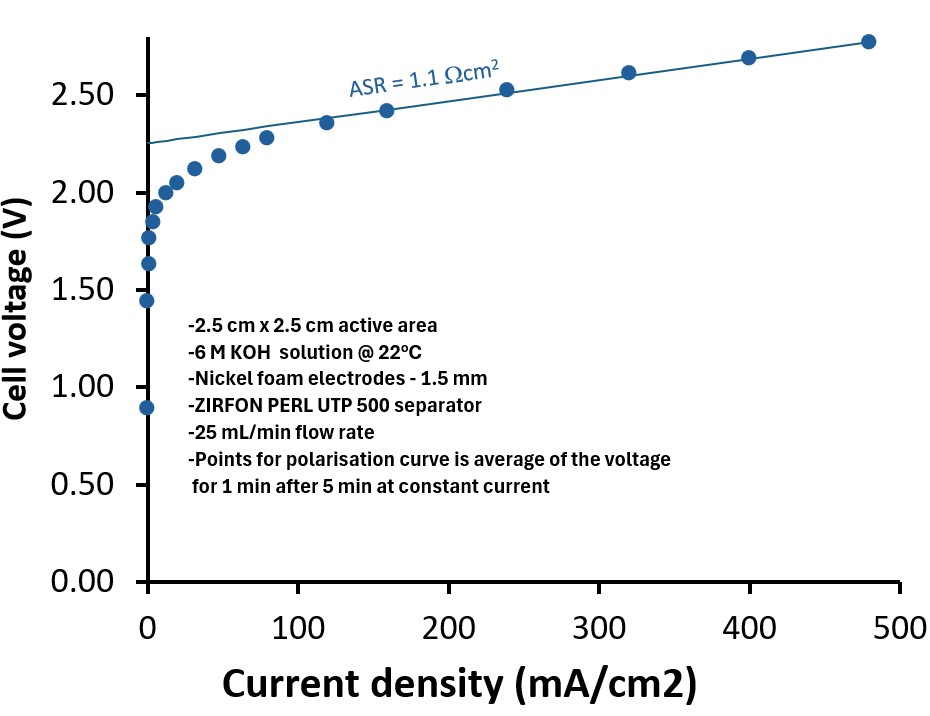

Figure below shows the polarization curve for a setup with nickel foam electrodes, 6 M KOH measured at room temperature. Here an area specific resistance of about 1.1 Ωcm2 is found and the activation voltage is about 2.2 V. This is similar to the values found in litterature recorded under similar conditions, thus the ‘relatively’ poor performance is because of the low temperature and that the electrodes are untreated (no catalysts). Thus much better performance can be obtained with higher temperature, thinner separator and treated electrodes.

Performance data for electrolysis cell for hydrogen evolution reaction

Support & Inquiry

Do you have specific questions or would you like help in selection and configuration of our product:

X-Cell – The Most Flexible Electrolysis Cell for R&D

You are very welcome to contact us in the form here. We are ready to support you in selecting the best solutions for your R&D.

Always include as much information as you can about your project, what type of chemistry you are planning to use, what is the purpose of the equipment  you are interested in. That will make it much easier for us to guide you towards the best solution for your project.
