Inline Pressure Unit Single

AP-PU-01-002

595.00 €

Pressure Measurement Unit that can be connected to flow battery or electrolyser cell HIGHLIGTHS:

Inline pressure unit with one independent relative pressure sensors (included)
Can be used for measurement of e.g. hydraulic resistance of electrodes
Pressure sensor also include temperature measurement

About the product

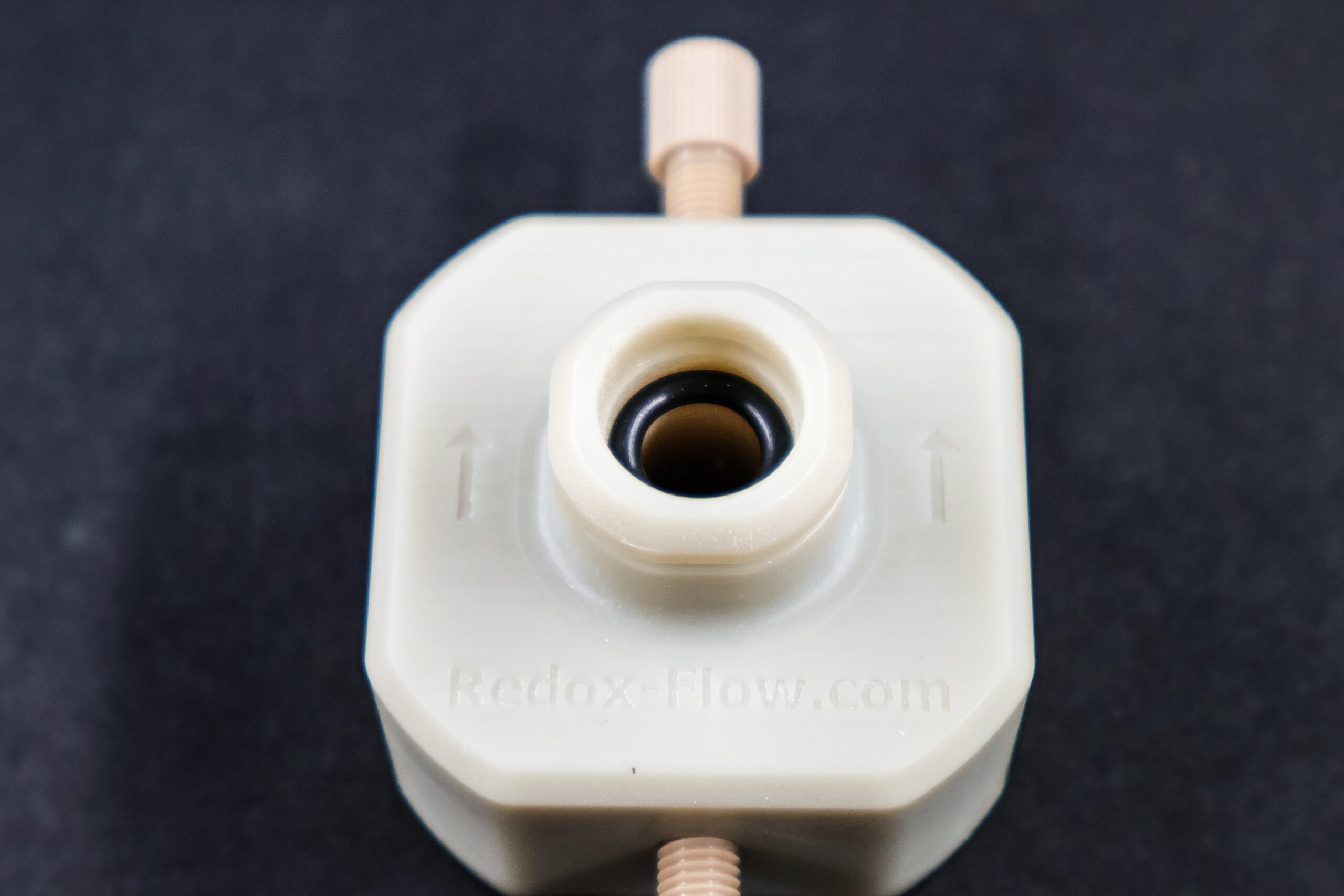

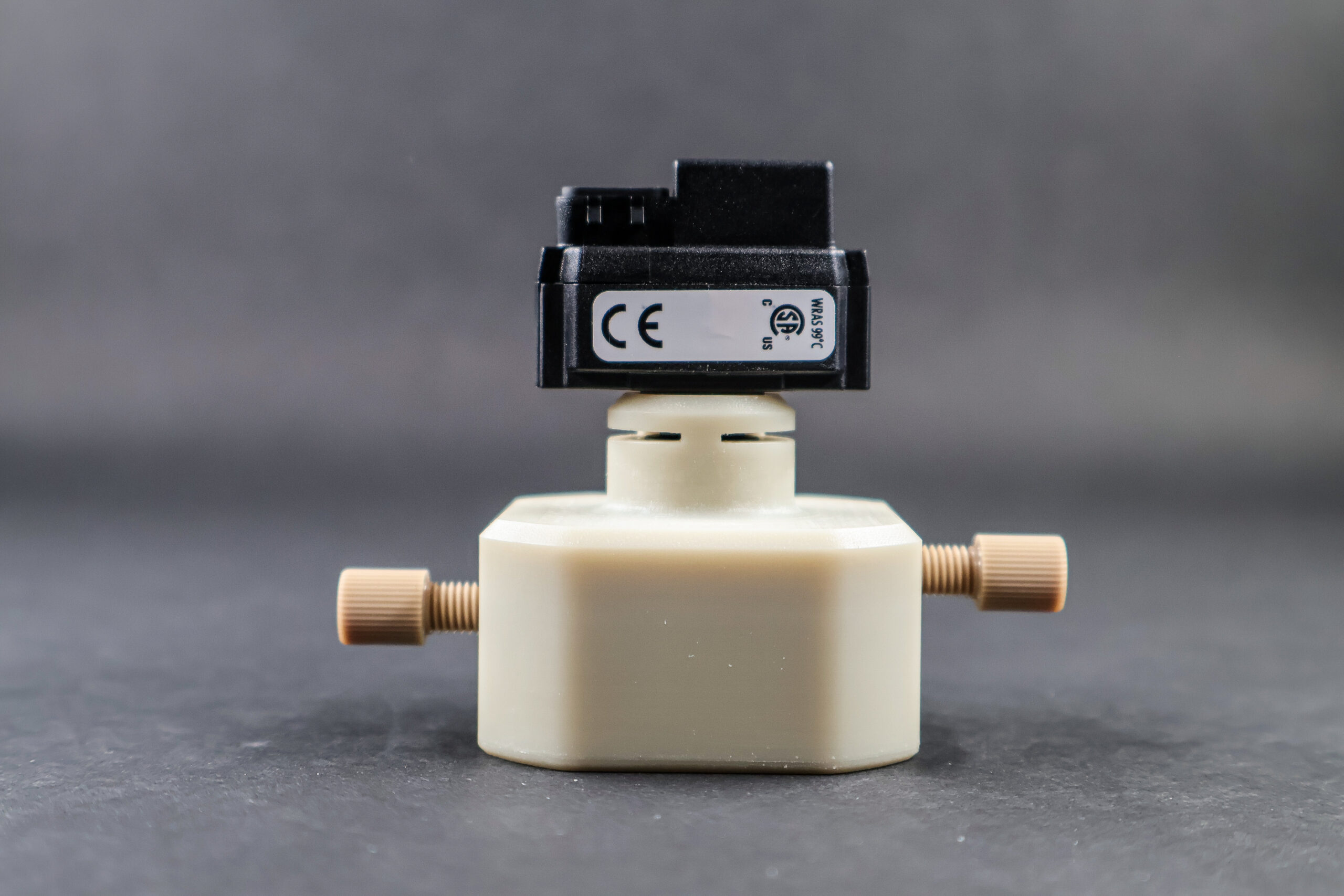

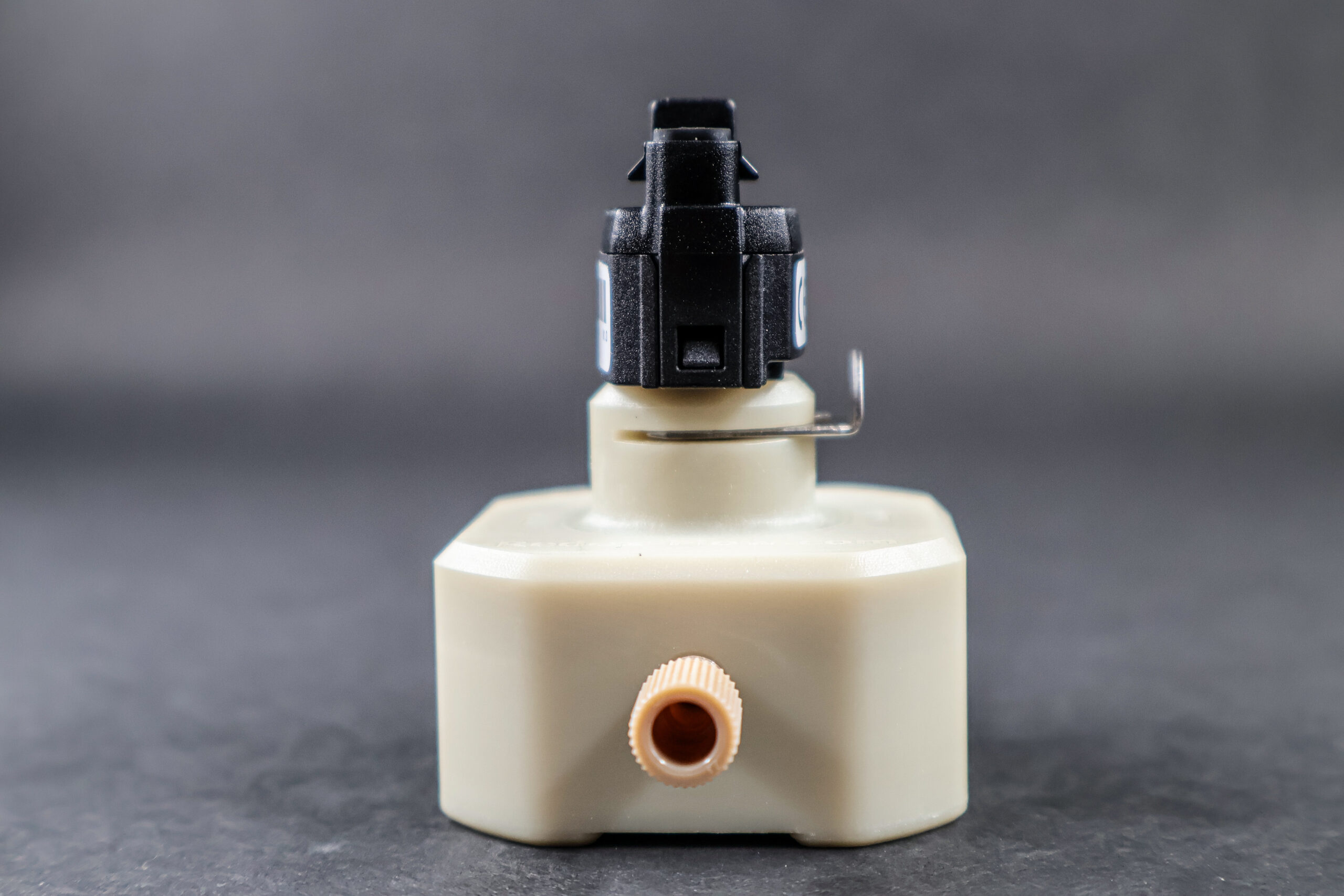

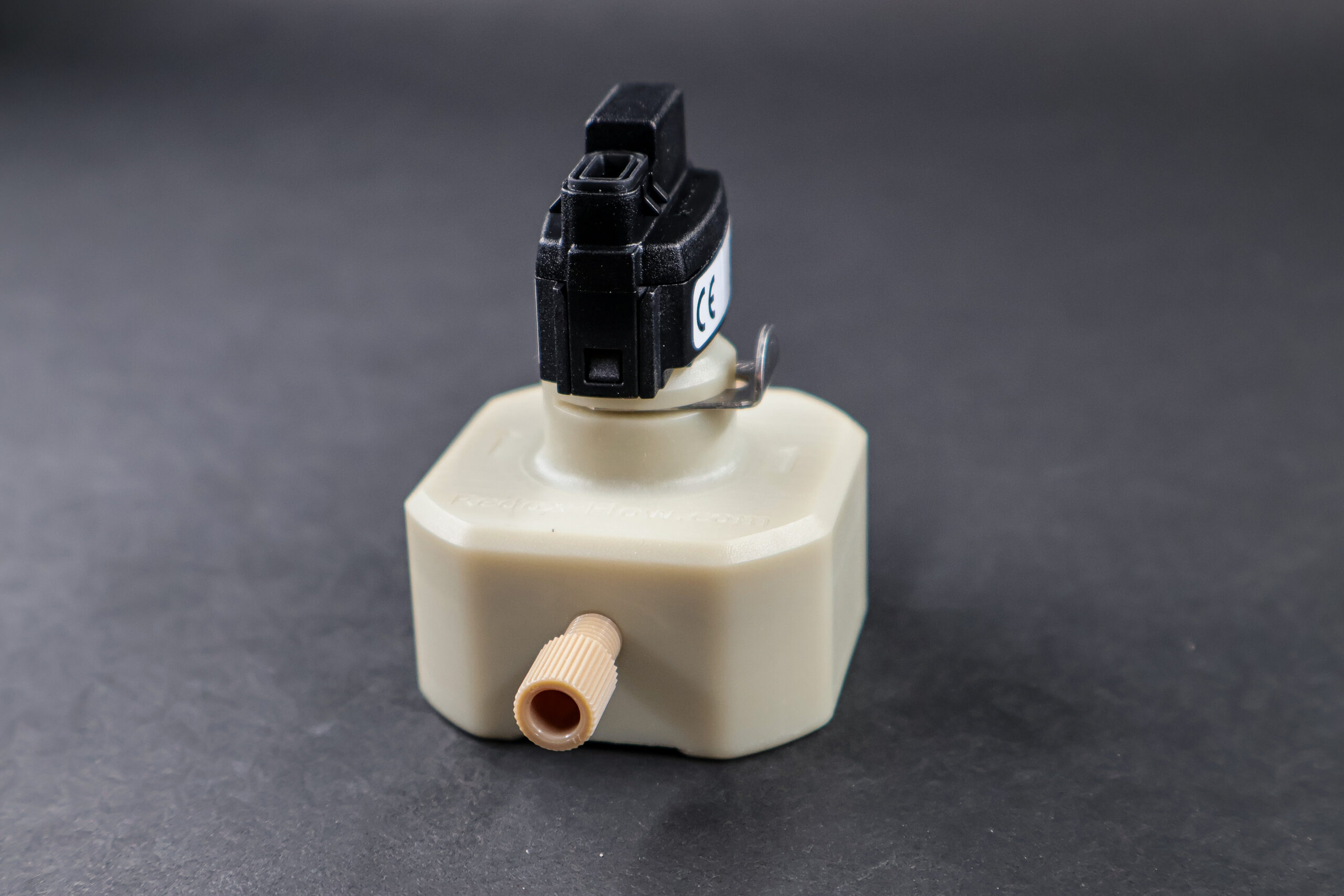

DESCRIPTION: This inline pressure unit can be connected to a flow battery or electrolyser test cell for measurement of differential pressure e.g. for determination of hydraulic resistance of electrode materials.

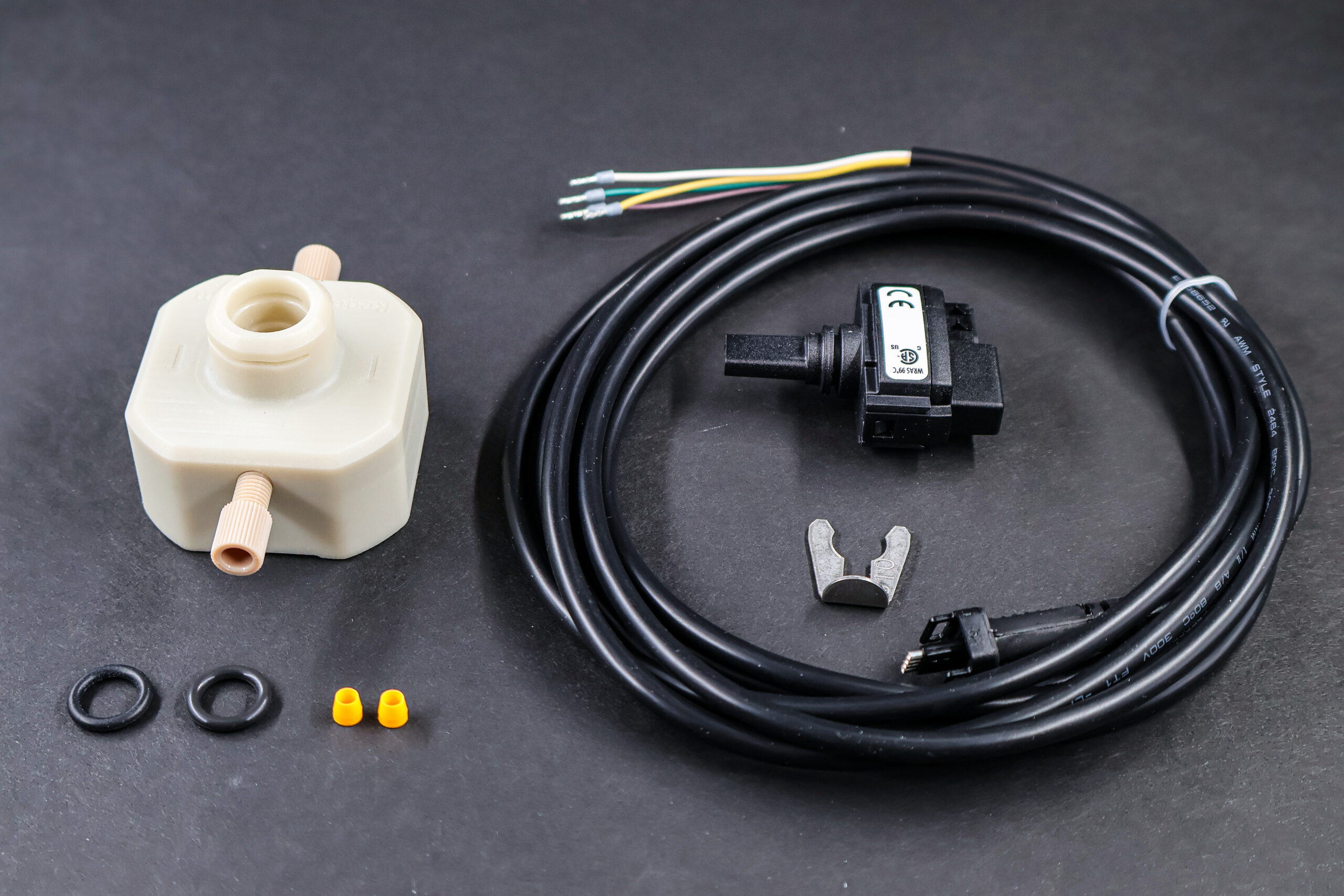

It comes with one relative pressure sensors (0-1.0 bar, 0.5-3.5V output), inline holder unit and fittings for connecting to tubes (1/8” is standard).
Pressure sensors are very corrosion resistant and have been tested extensively with various redox solutions (including standard 1.6 M vanadium solutions and 6 M KOH solutions) without failure.

Inline pressure unit can be operated in two ways (Integration possibility 1 or 2, see below). The first is to measure the pressure difference between the inlet/outlet (possibility 1) on one side OR measure the inlet pressure on both sides (possibility 2).

Important – you need two pressure units for these configurations.

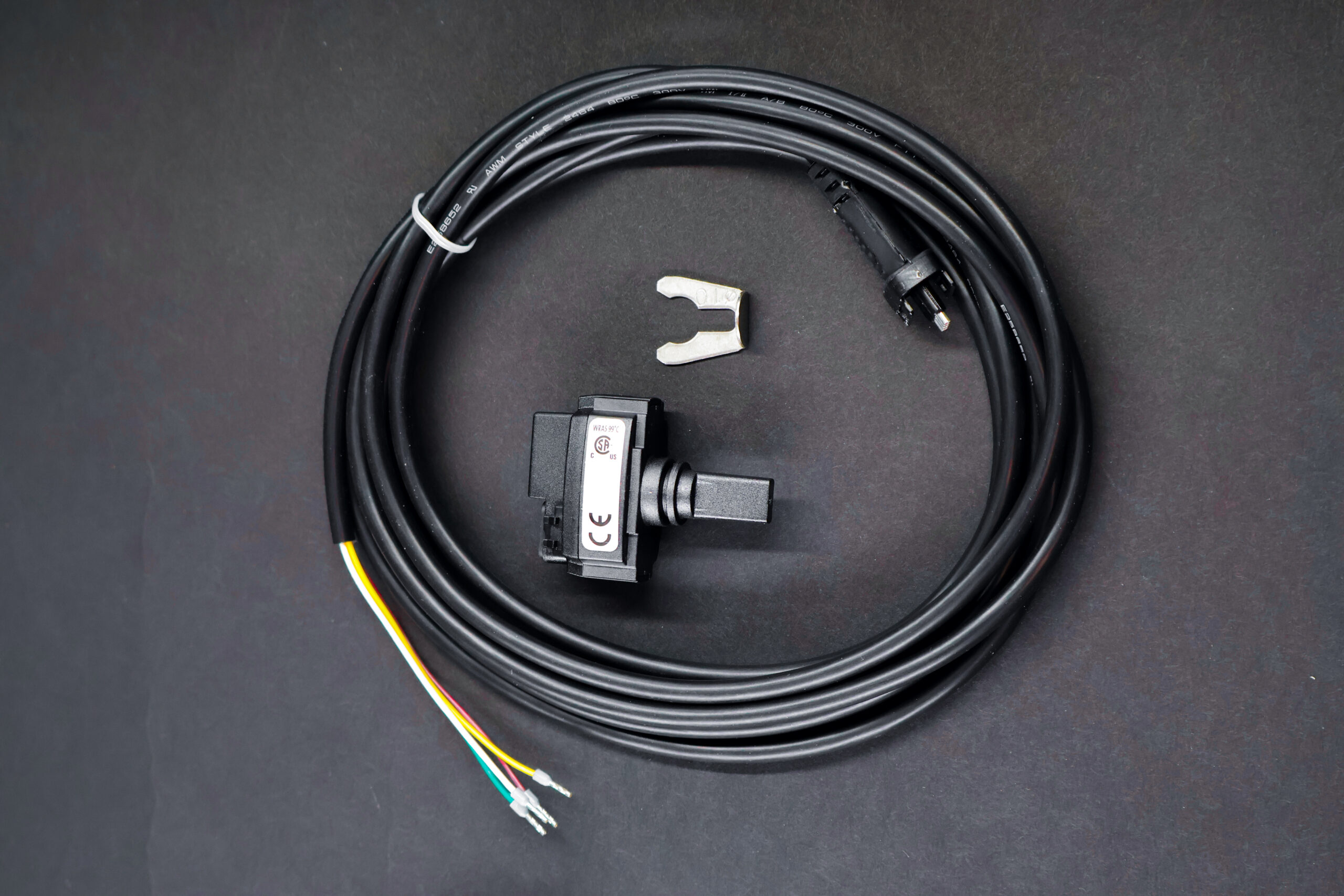

Please note that the pressure sensor comes without 5 V power source and that some wiring/soldering is needed to make it operational (consult Assembly Manual for more details)

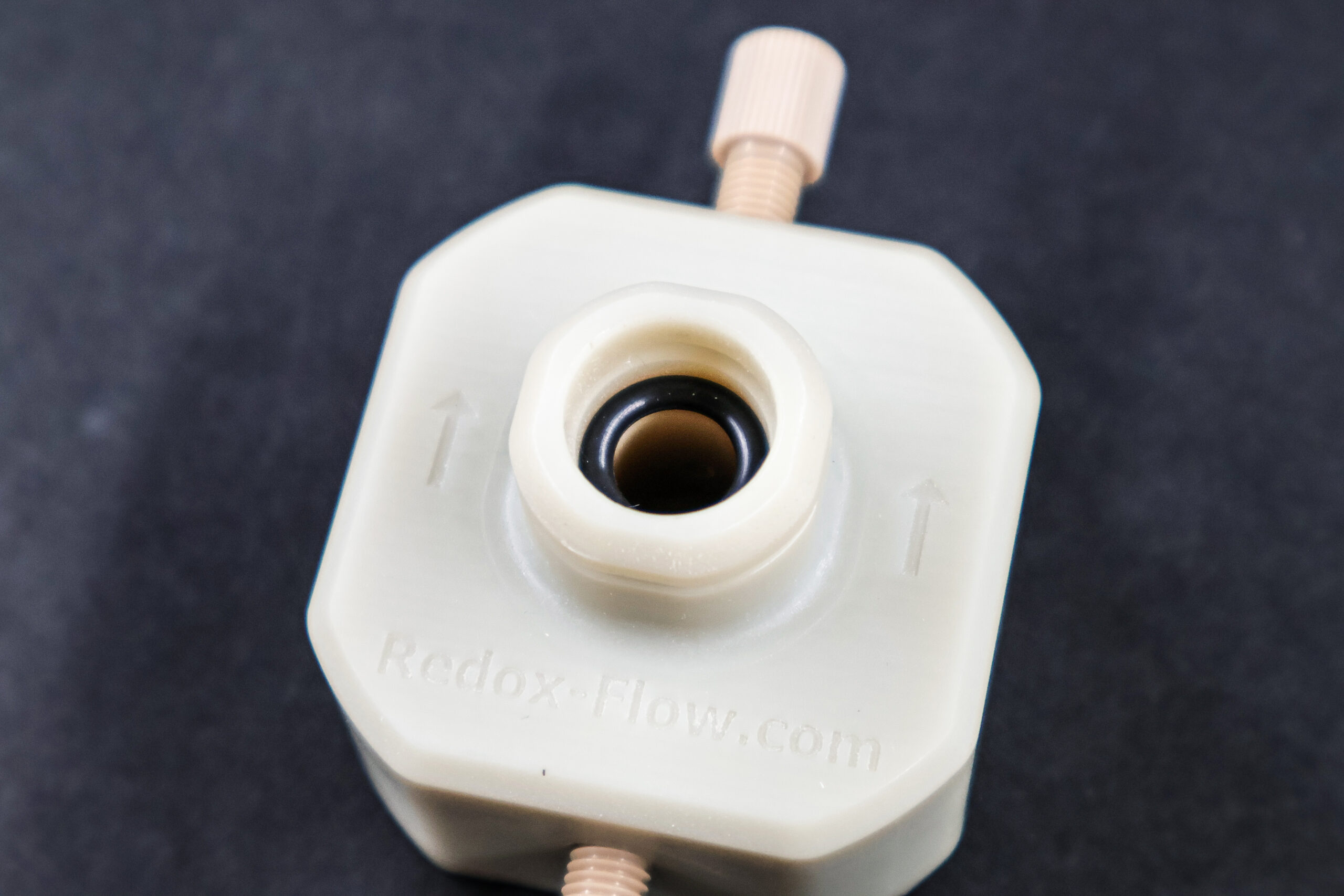

Inline pressure unit with one relative pressure sensor
Main body in polypropylene
Pressure sensors specs- 0 bar-1.6 bar (for other pressure ranges please make a request) analog output 0.5 – 3.5V output, 1 mbar resolution
Sensor housing in contact with liquid is corrosion resistant PPS.
Pressure sensors also include additional temperature measurement (0.5-3.5 V output) – i.e. direct contact between temperature sensor and liquid
Powered by 5 V power source (not included) – The sensors come unconnected and costumers have to do (simple) wire connections including: (i) soldering of 5 V power source to the sensors and (ii) connection of analog output from sensors to data acquisition equipment e.g. the AUX Unit.
Voltage output from pressure and temperature sensing must be connected to data acquisition equipment (not included) – We recommend to use the AUX Unit for data acquisition, in this way you get your battery data and pressure/temperature data into the same file.
Standard tube fittings are for 1/8” OD tube – please make a request for other diameters

Pressure Sensor Datasheet

Support & Inquiry

Do you have specific questions or would you like help in selection and configuration of our product:

Inline Pressure Unit Single

You are very welcome to contact us in the form here. We are ready to support you in selecting the best solutions for your R&D.

Always include as much information as you can about your project, what type of chemistry you are planning to use, what is the purpose of the equipment you are interested in. That will make it much easier for us to guide you towards the best solution for your project.
