Current Collectors & Bipolar Plates X-Cell (1)

Price range: 410.00 € through 940.00 €

Current collectors for the X-cell with and without flow field (Nickel, Titanium, Stainless Steel, Pt coated Titanium and Copper) – For other materials please make an inquiry.
Thickness: 2mm
Amount: 1 piece per package

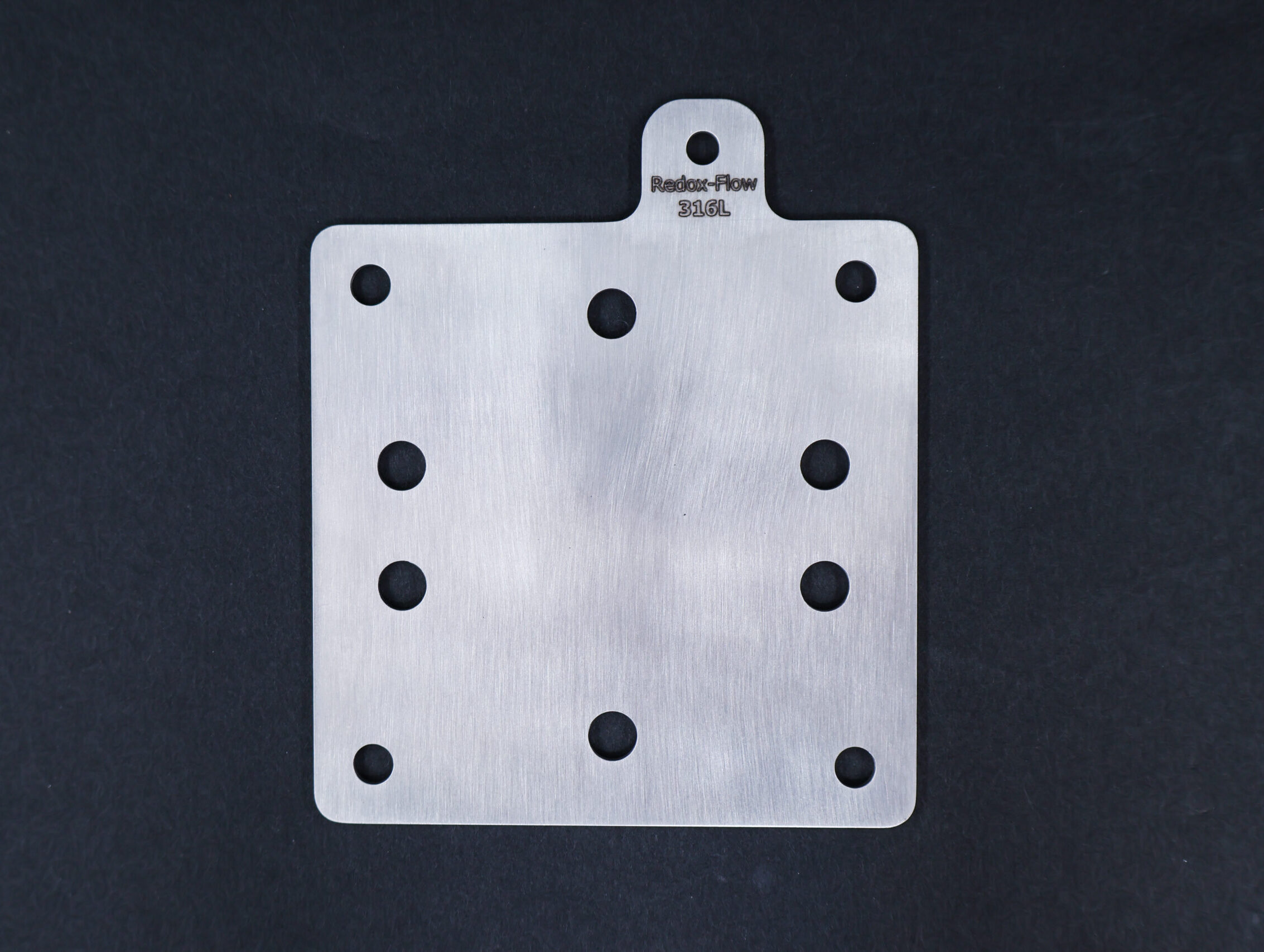

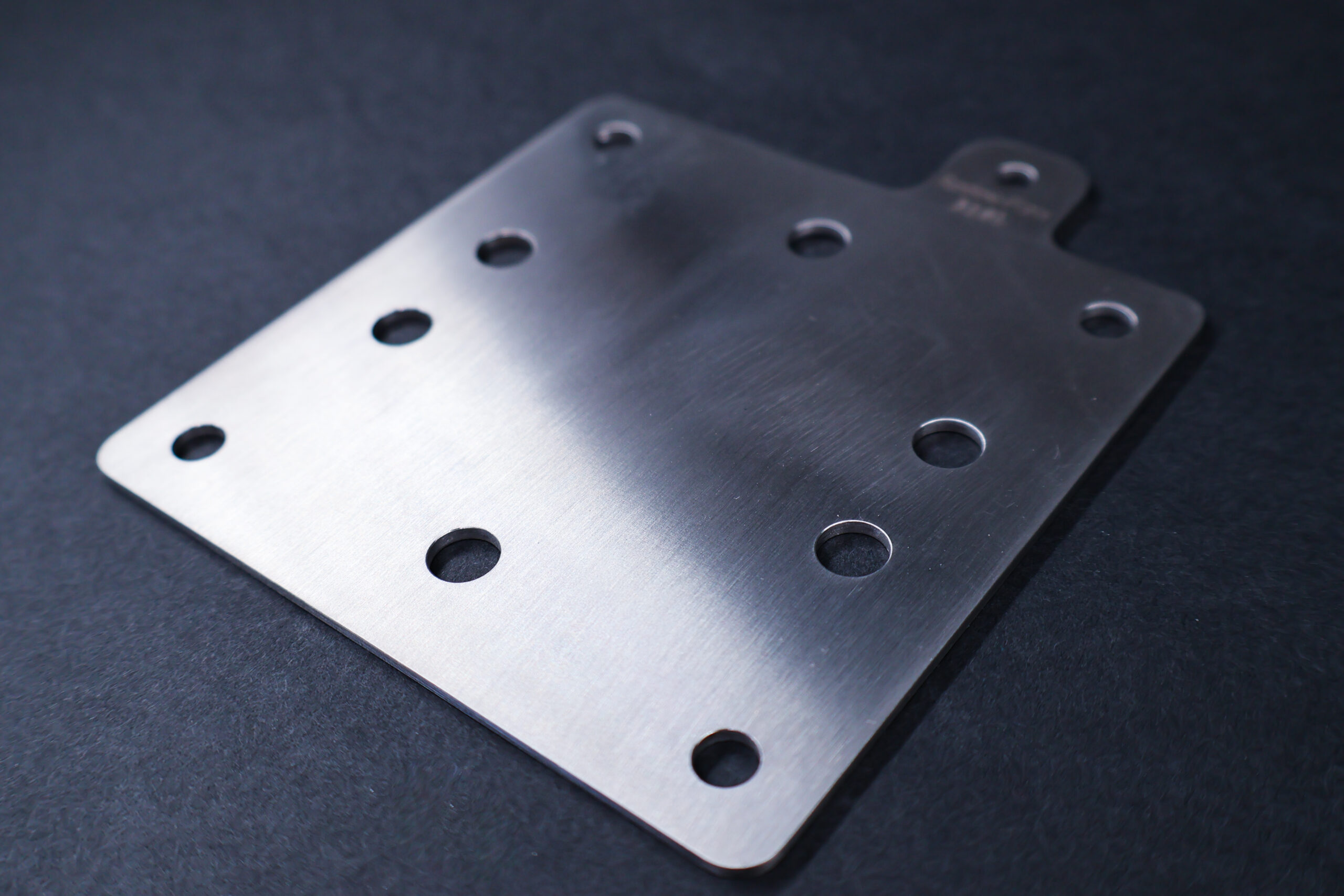

Flat current collectors can be used with the X-Cell General Electrolyser, X-Cell with multiple compartments, X-Cell with reference electrode measurements and the X-Cell stack
Current collectors with flow-field can be used with the X-Cell General Electrolyser, X-Cell with multiple compartments and the X-Cell with reference electrode measurements

Read more about the product

Flow Field Area

Material Surface

Clear

▲ ▼

About the product

Precision cut bipolar plates and current collectors for X-cells. NOTE: All plates are sold as single pieces (not pairs)

Current collectors for the X-cell with and without flow field (Nickel, Titanium, Stainless Steel and Copper) – For other materials please make an inquiry.

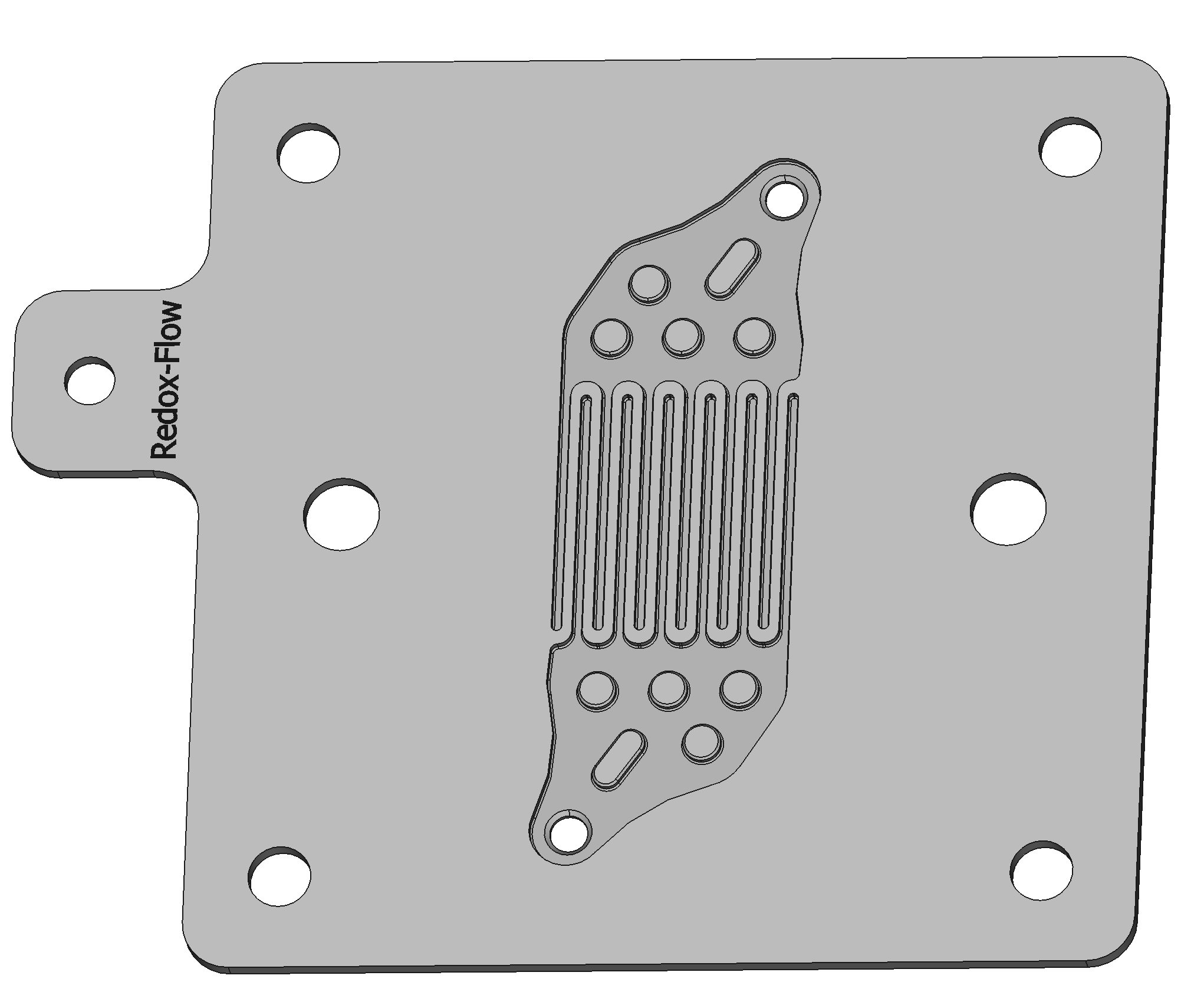

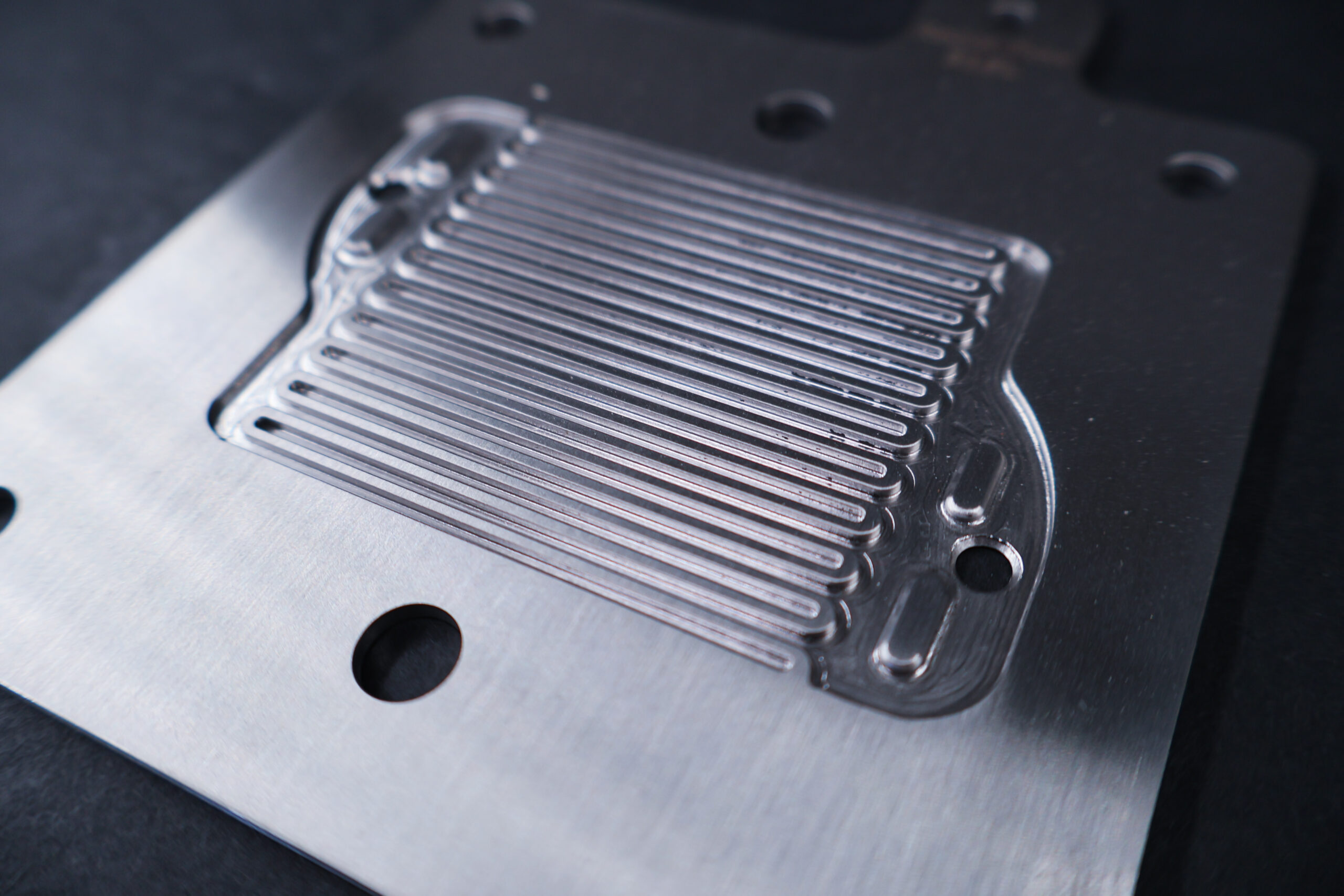

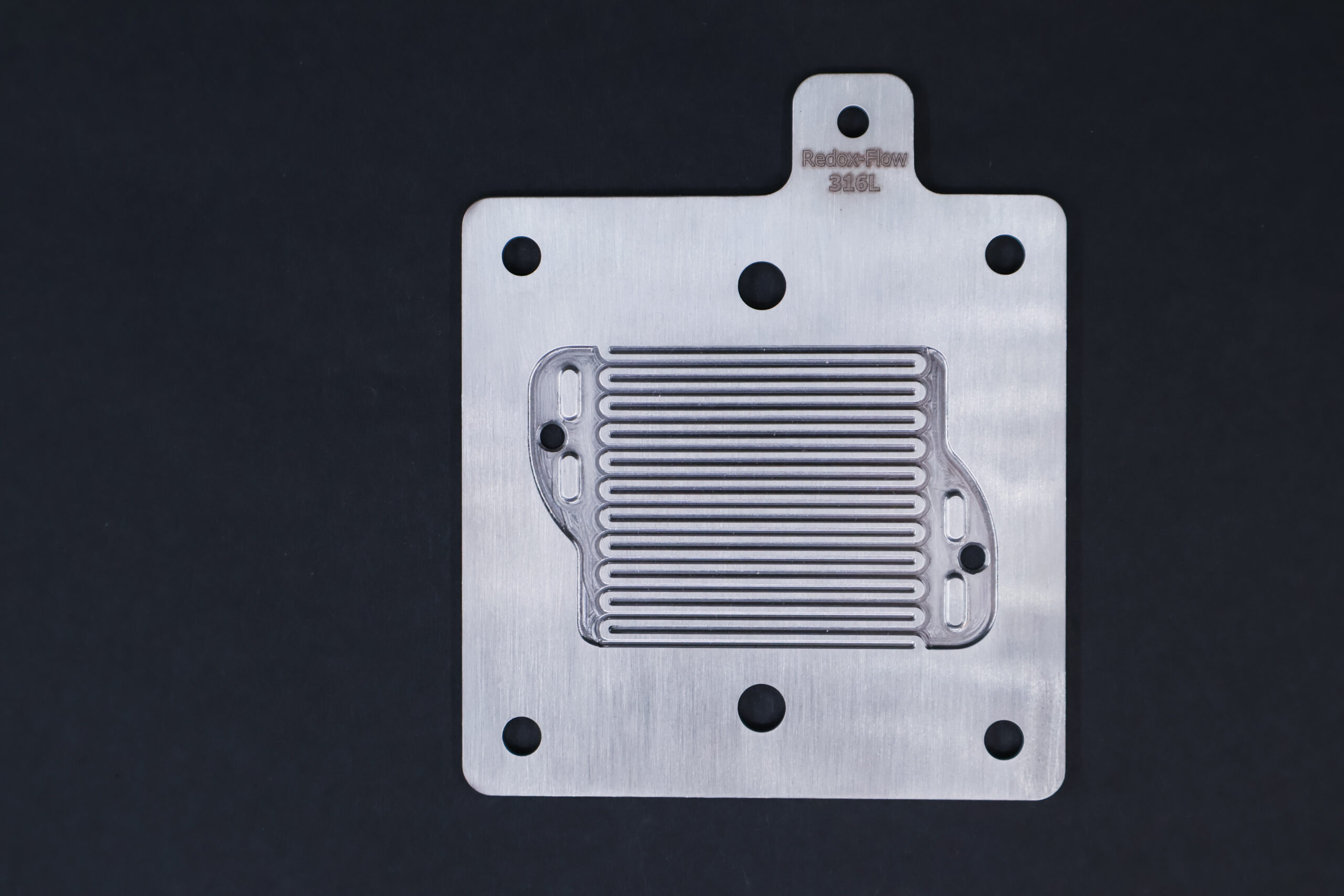

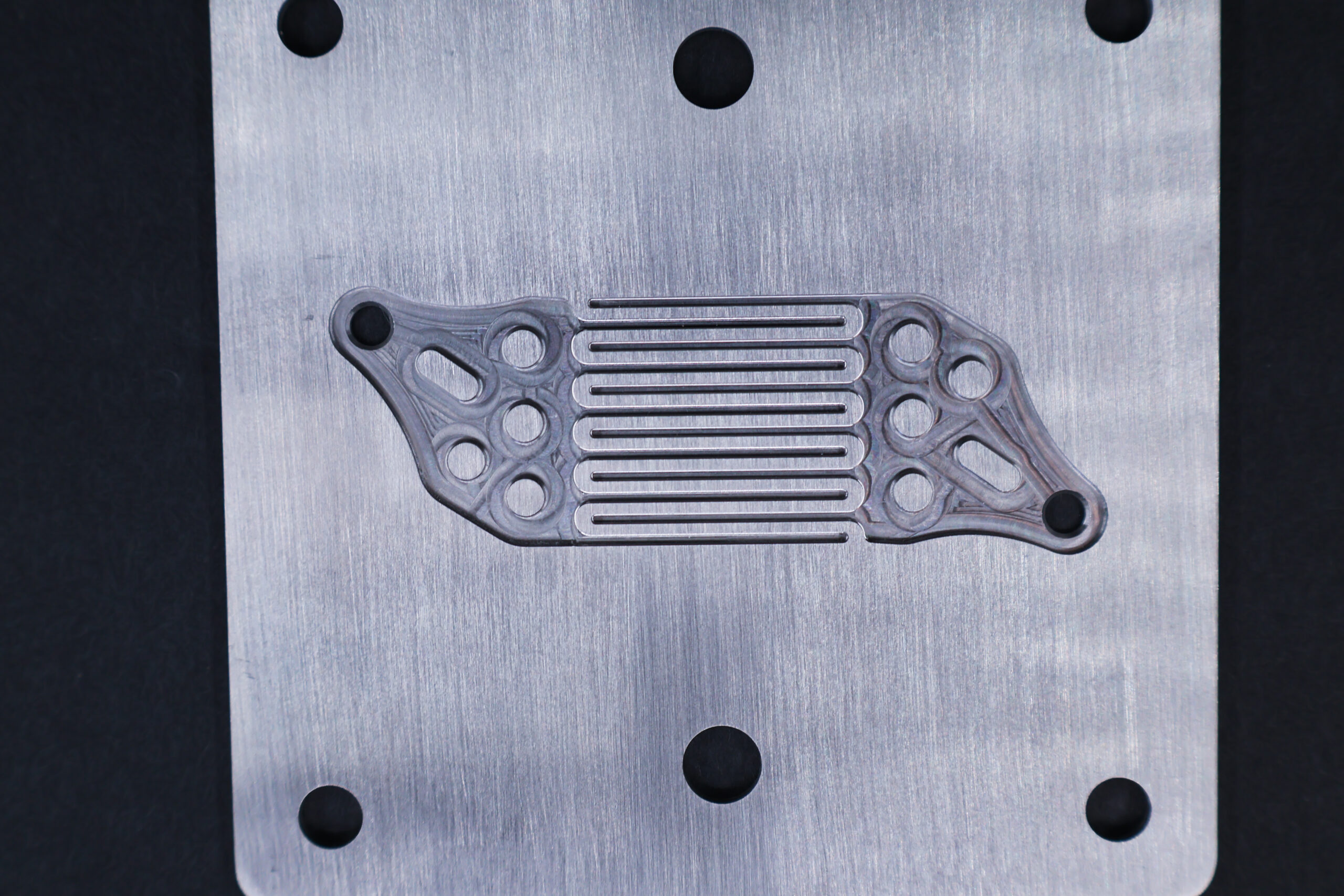

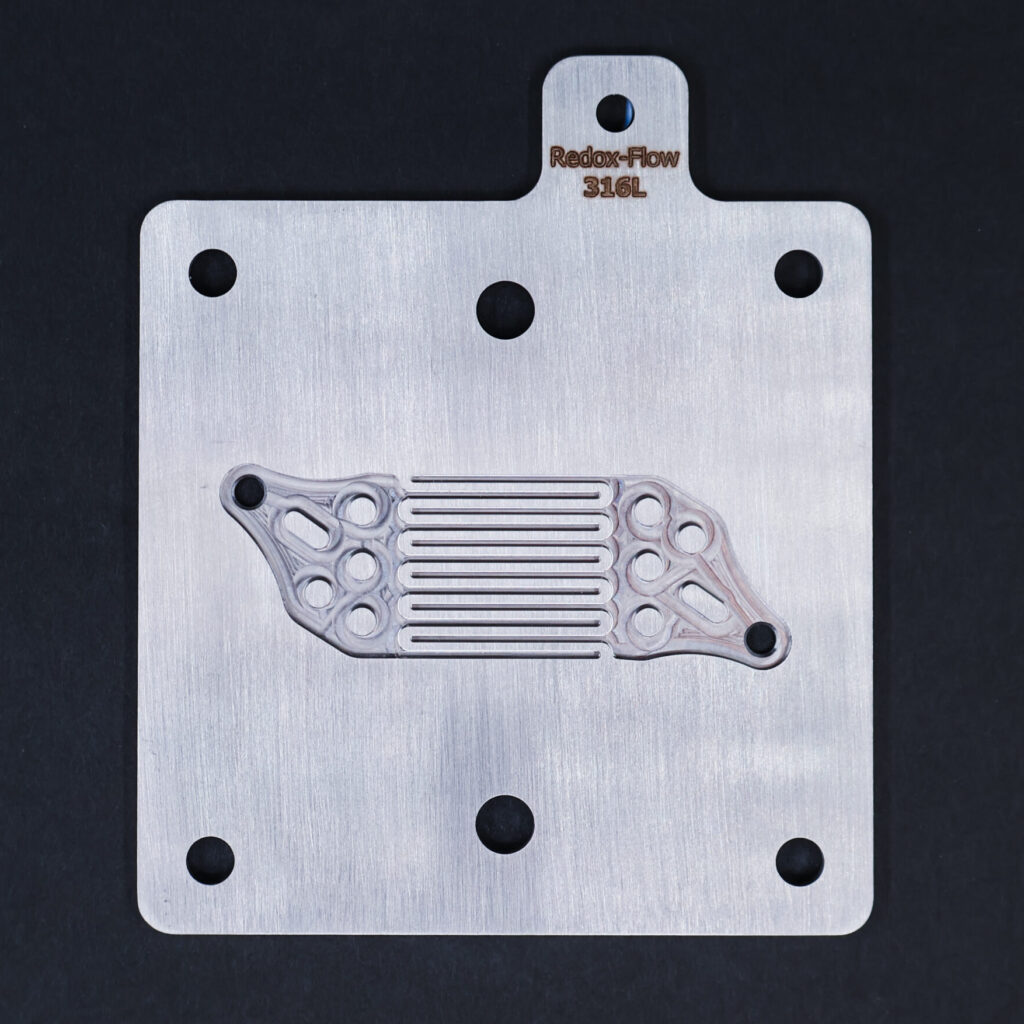

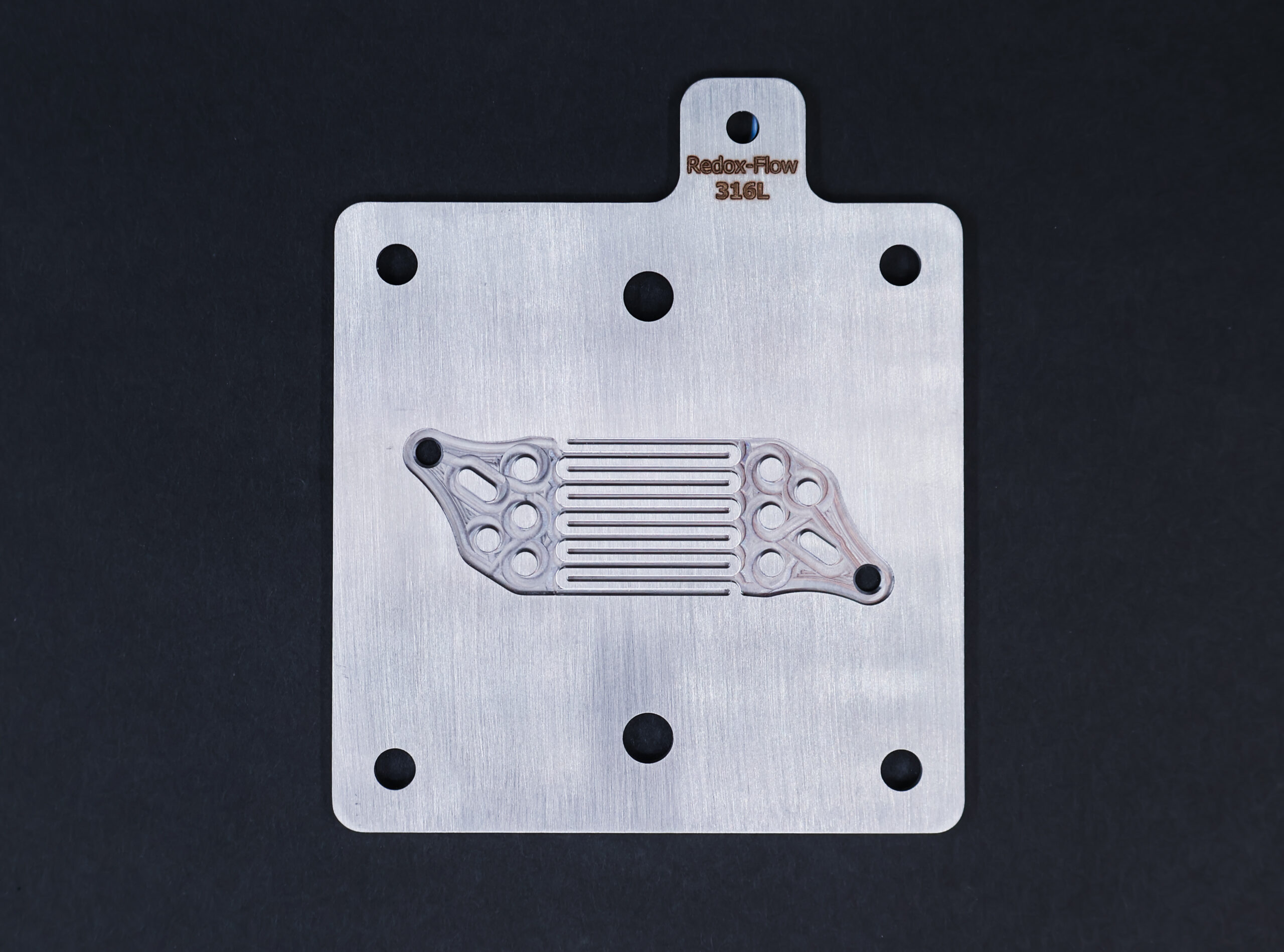

The flow-field is an interdigitated flow field – for other flow fields, please make an inquiry

As a general note, flow field is recommended for use in combination with thin electrodes (<1 mm thickness) and flat current collectors are recommended for use in combination with thicker electrodes (>1 mm thickness).
