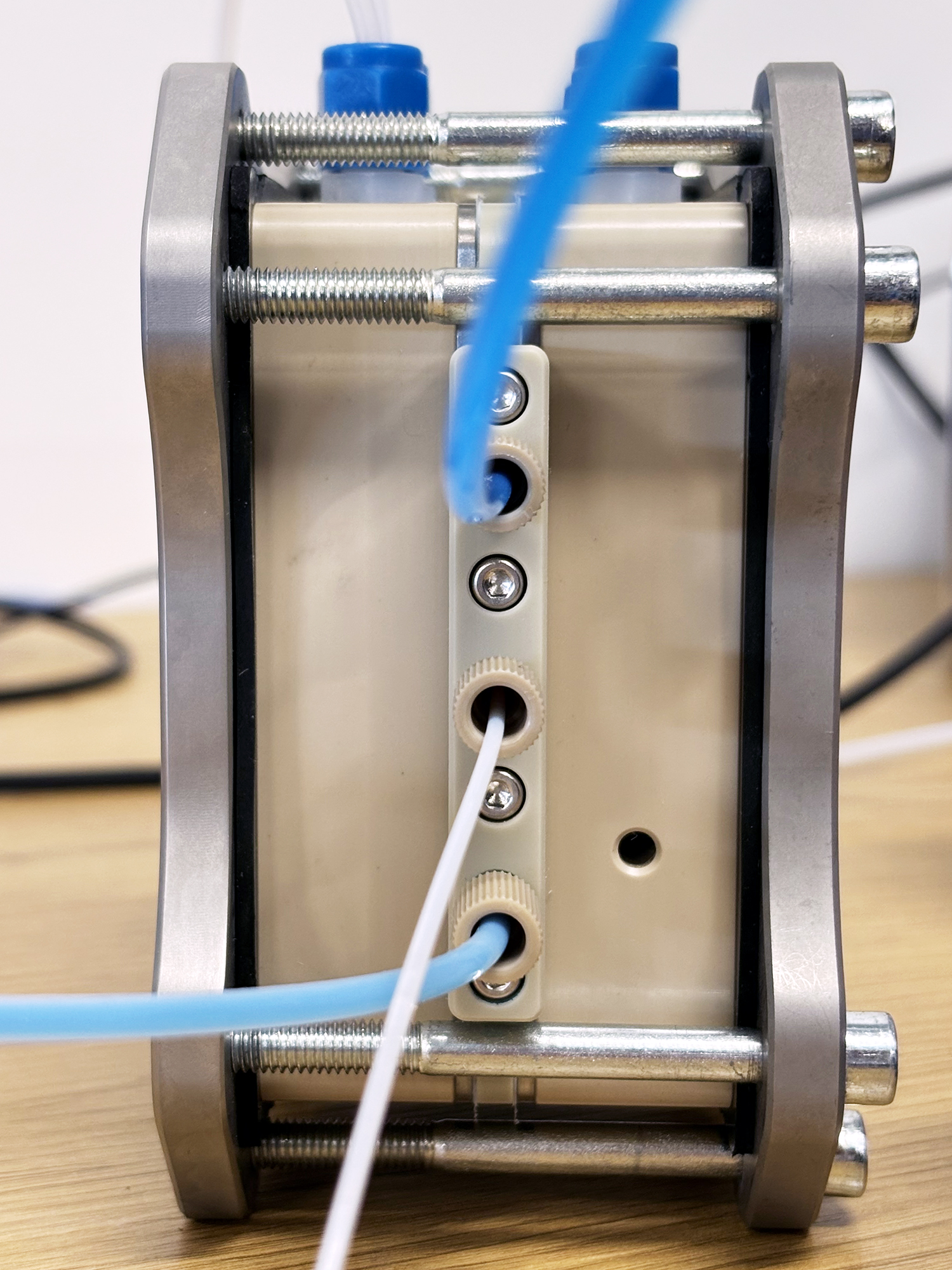

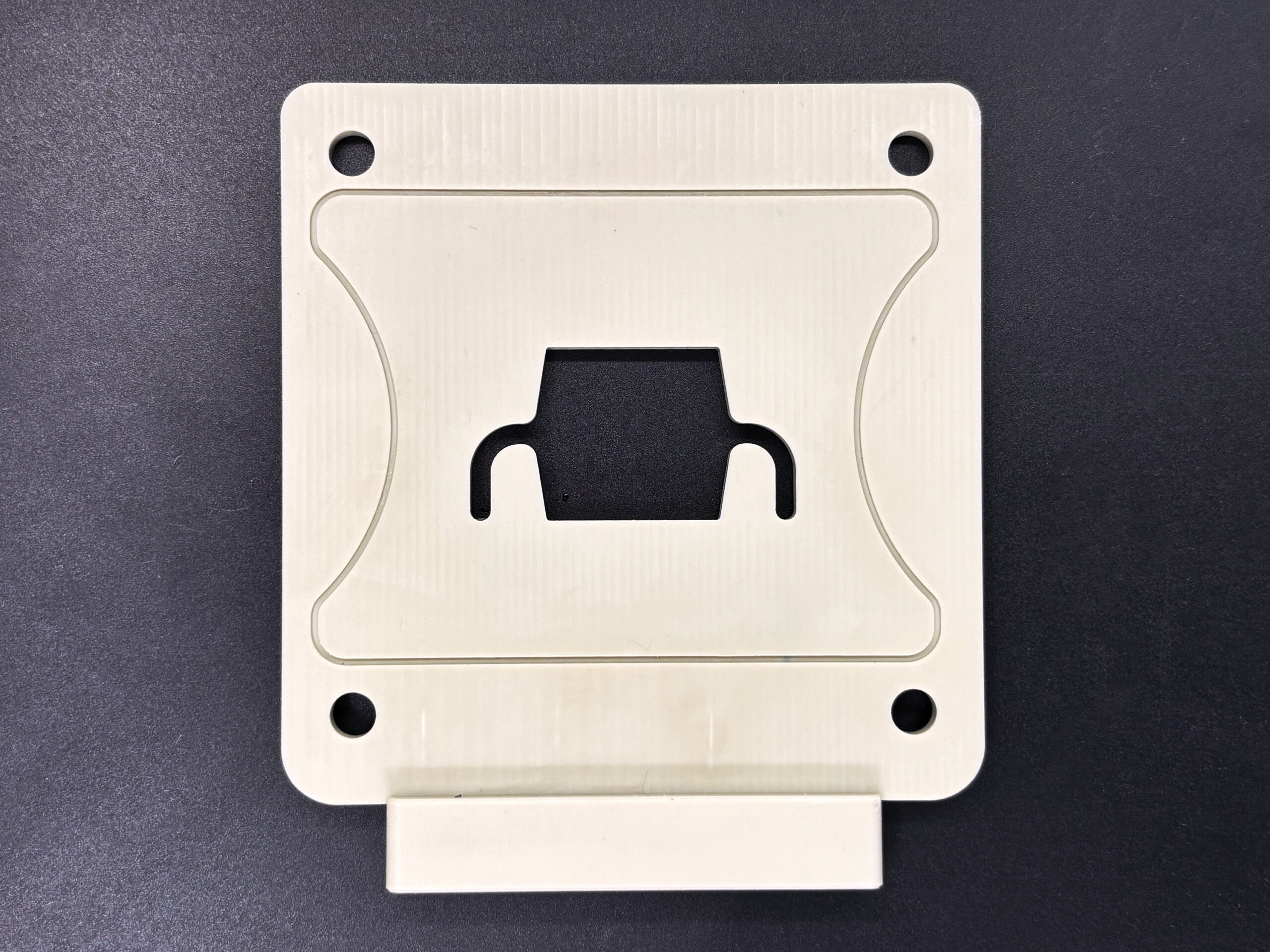

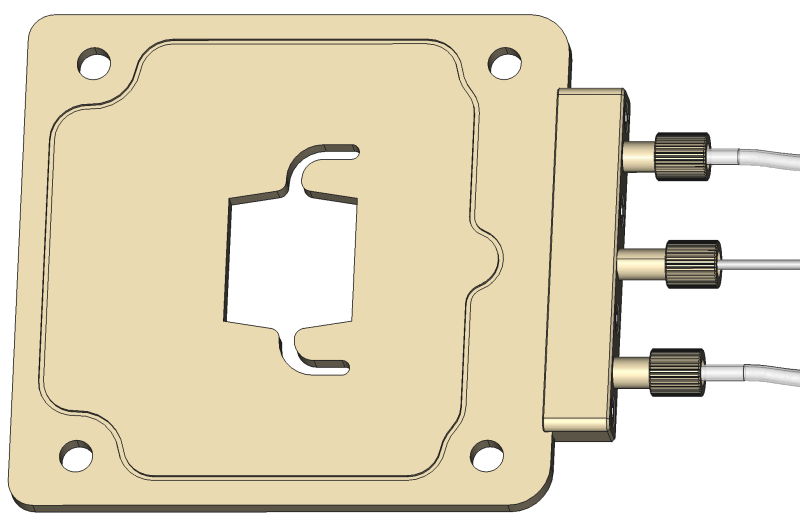

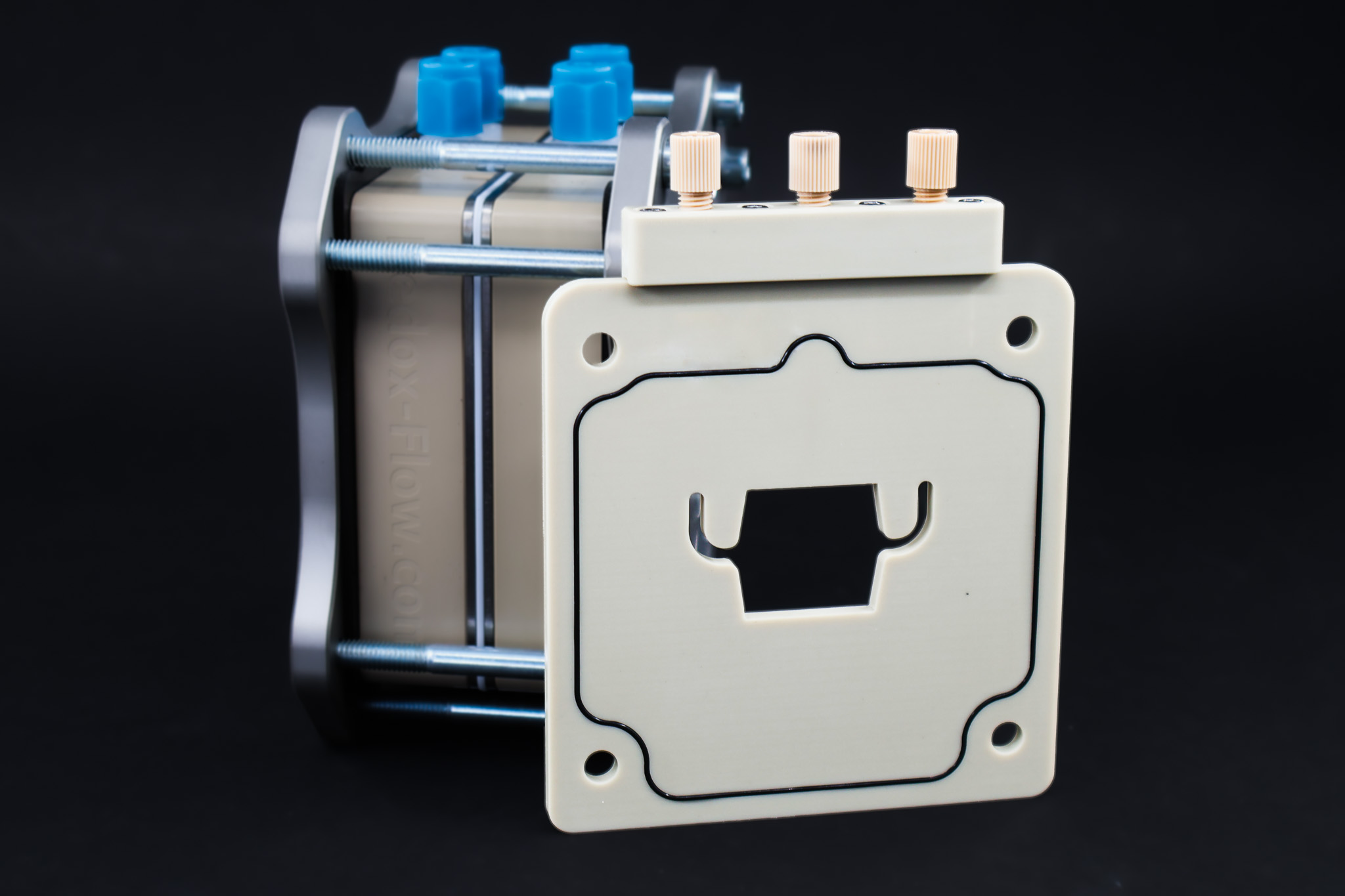

Insert Chamber for Electrolyzer w. port for reference electrode

The Chamber Insert is a versatile addition to our X-Cell, S-Cell, and A-Cell electrolyzers, designed for researchers who need to push the boundaries of their experiments. Whether you need to add more chambers for complex processes or integrate a reference electrode for more accurate potential measurements, this insert provides a simple and effective solution.

Key Features

• Multi-Chamber Expansion: Easily convert your two-chamber electrolyzer into a three, four, or even more chamber setup.

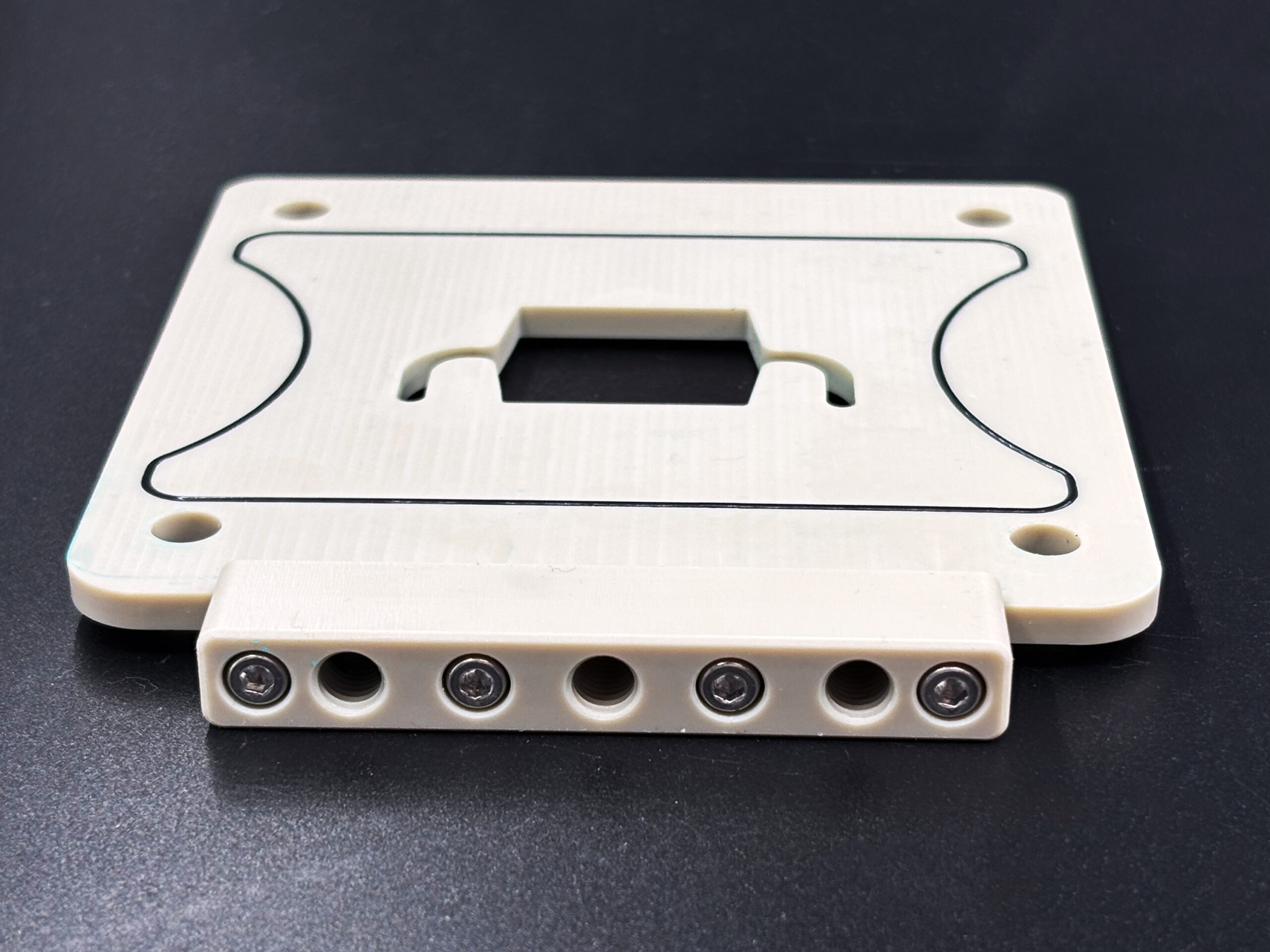

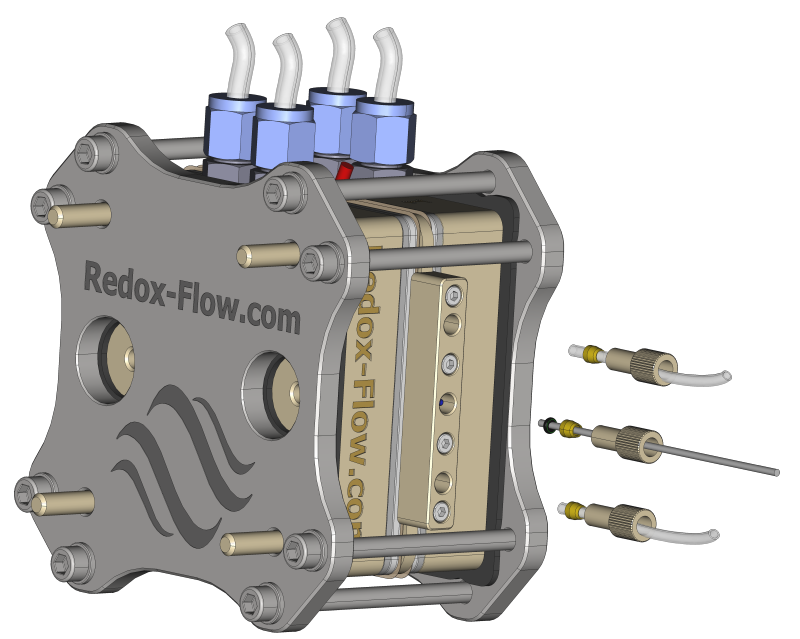

• Reference Electrode Port: Includes a port for thin reference electrodes (Ø0.8 mm to Ø1.6 mm) for precise potential monitoring.
• Customizable Chamber Thickness: Standard 3 mm thickness can be expanded using gaskets or custom-manufactured in larger dimensions to match your specific experimental requirements.
• Chemically Resistant: Constructed from polypropylene for excellent chemical resistance and minimal contamination.

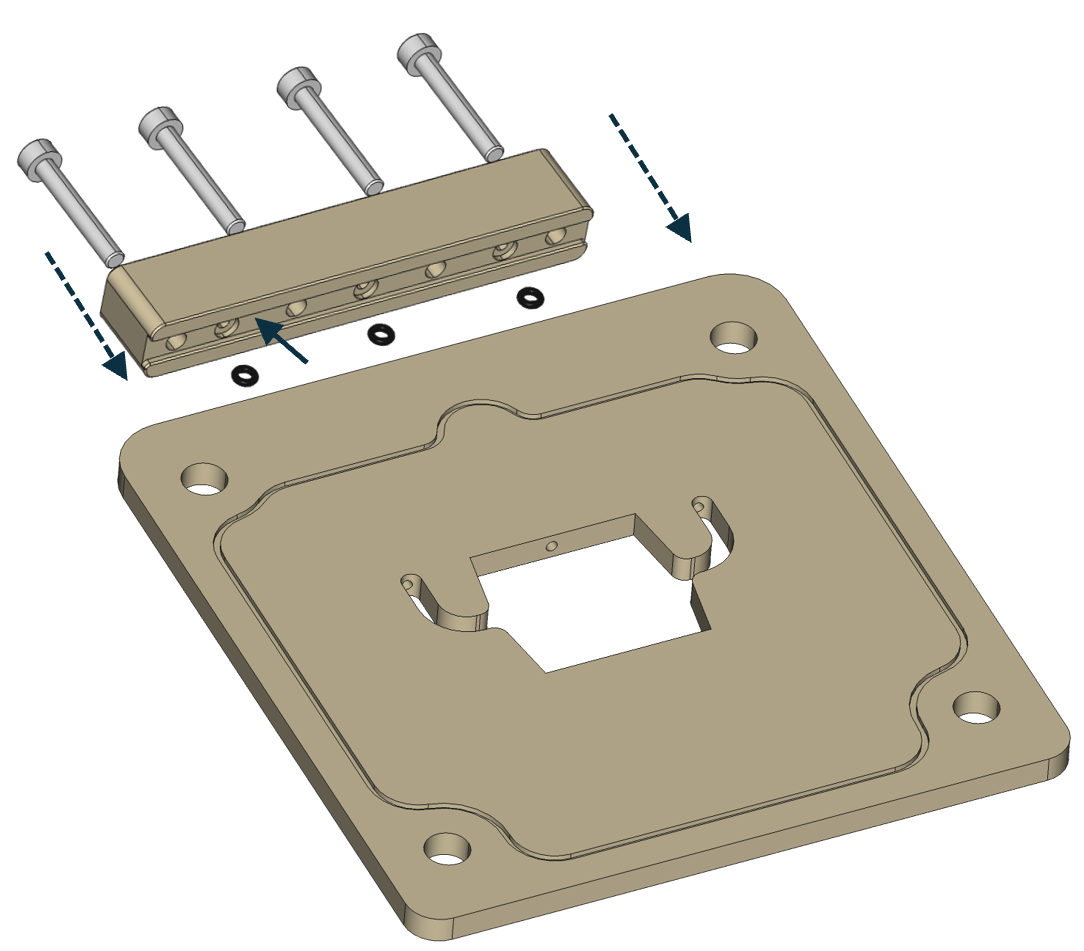

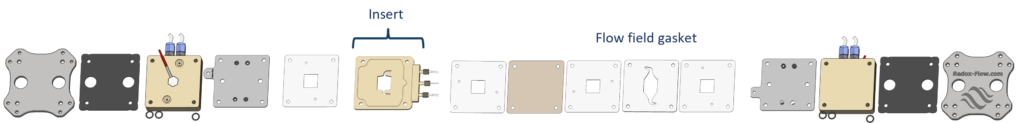

• Modular Design: Designed to be stacked, allowing for multiple inserts to be used in a single cell.

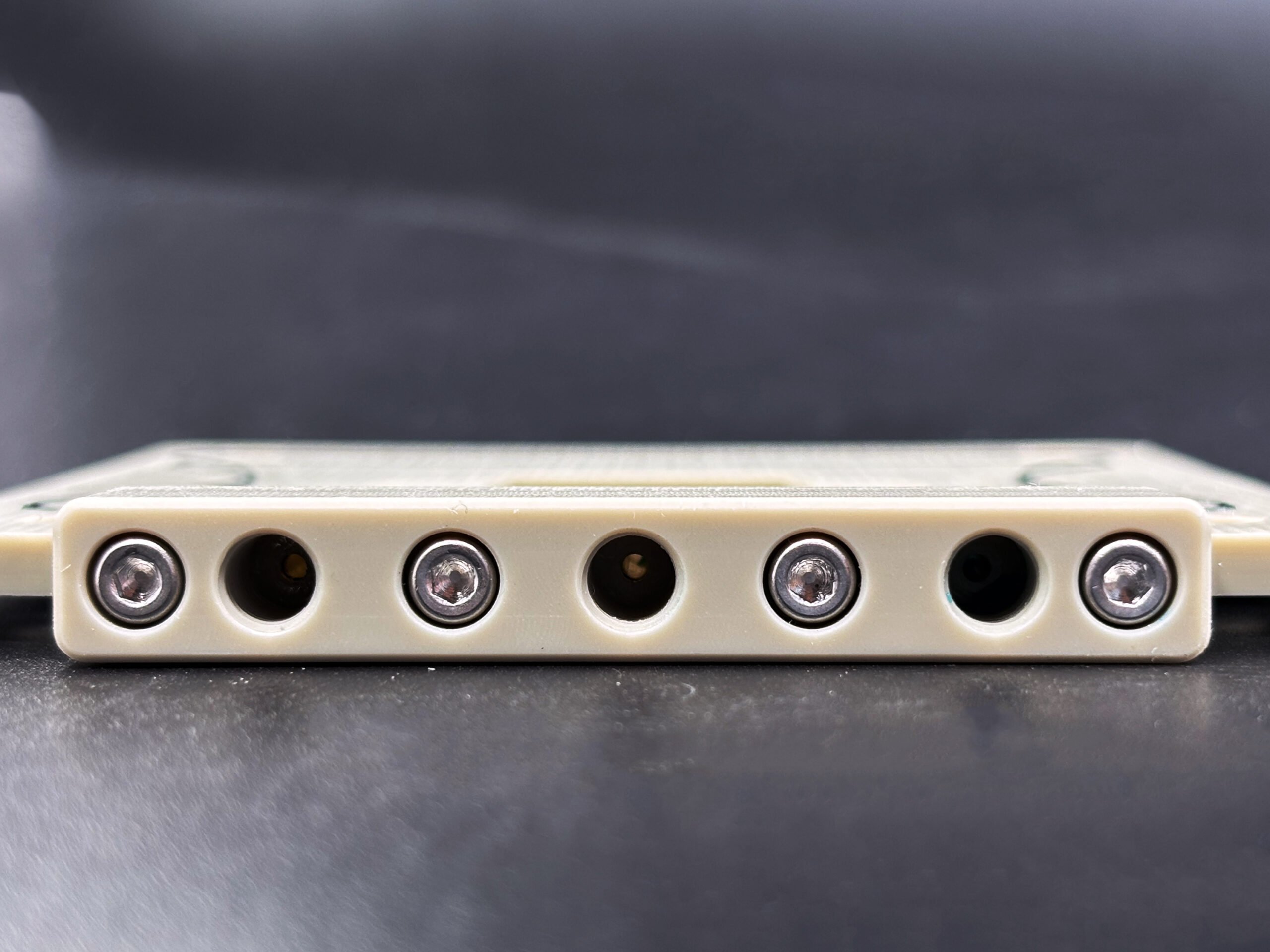

• Liquid Circulation: Features two additional ports for circulating liquid within the chamber.
• Compatibility: Fully compatible with our 2.5 cm x 2.5 cm and 5 cm x 5 cm X-Cell, S-Cell, and A-Cell electrolyzers

Application Areas

• The Chamber Insert is ideal for a wide range of advanced electrochemical applications, including:
• CO₂ Electrolysis
• Bipolar Membrane Electrodialysis (BMED)
• Multi-compartment electrochemical synthesis
• Desalination
• And more…

Different use cases:

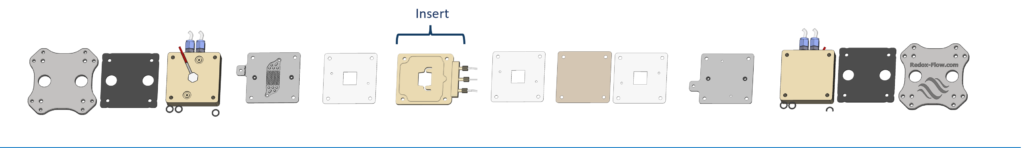

1. As an extended anode/cathode chamber with reference electrode for both flat and flow-field current collectors

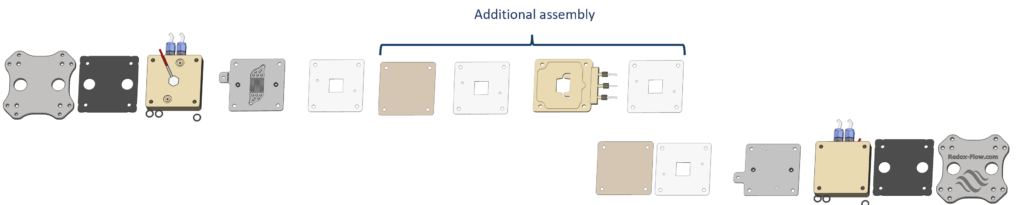

2. As an additional chamber separated by membranes
