Hydraulic Connection Package 1/8″ w. Multiport Reservoir

1,950.00 €

Advanced Hydraulic Package with Dual Multiport Reservoirs

Upgrade your electrochemical setup with our complete hydraulic connection package, built around two advanced, temperature-controlled multiport reservoirs. This all-in-one kit provides everything you need to manage electrolytes in demanding flow battery and electrolysis applications. Move beyond simple glass flasks to a fully integrated system offering unparalleled control, flexibility, and chemical resistance. Customer-selectable reservoir volumes (250, 500, or 1000 mL) allow you to tailor the system to your specific research scale.

HIGHLIGHTS:

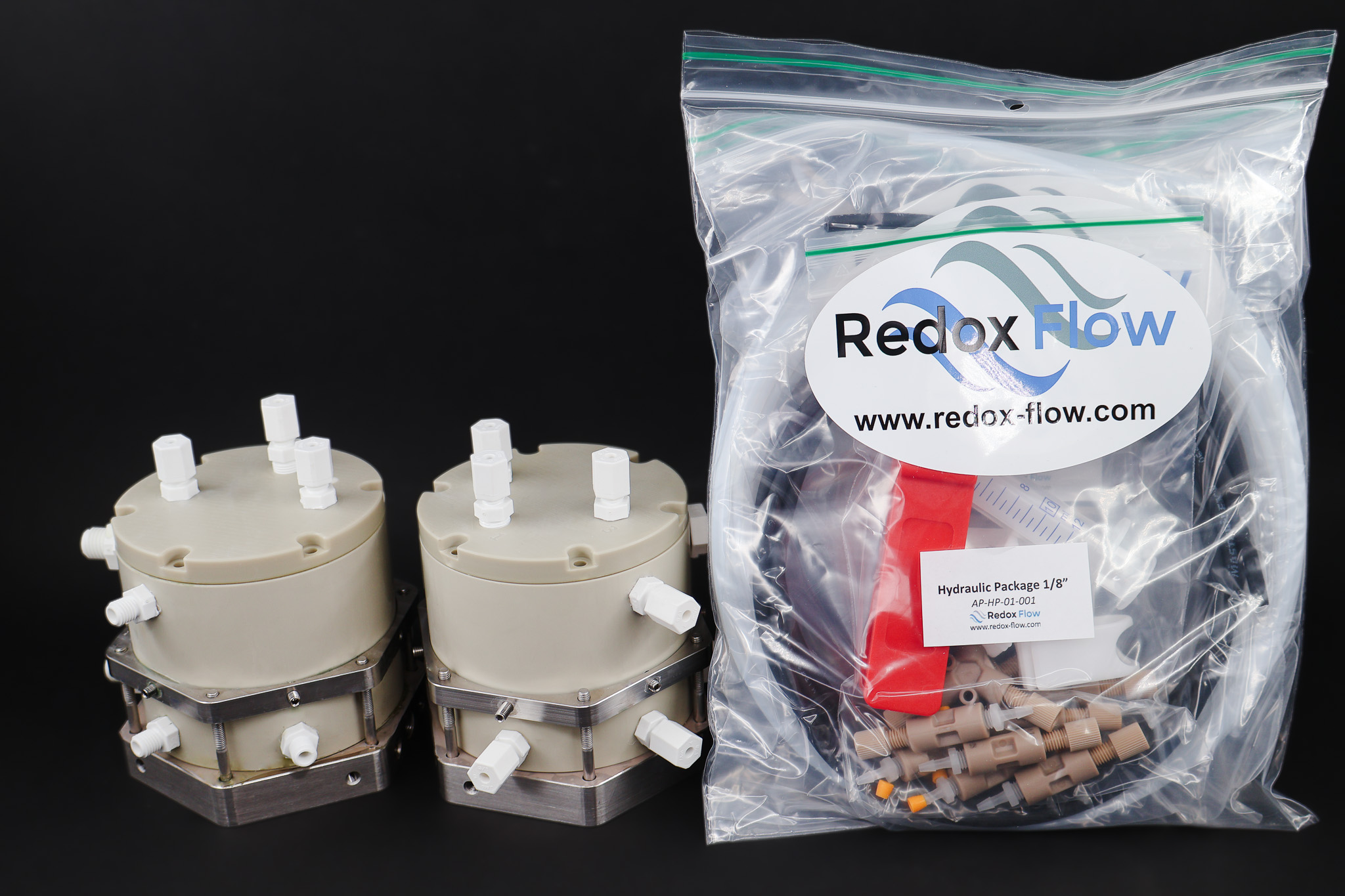

Complete Dual-Reservoir System: Includes two multiport reservoirs and all required tubing, fittings, and connectors for 1/8″ systems.
Integrated Temperature Control: Each reservoir features a stainless steel heating/cooling plate for precise thermal management.
Unmatched Flexibility: A total of 18 ports (9 per reservoir) for complex flow arrangements, gas purging, and sensor integration.
Superior Chemical Resistance: Chemically inert PP/PTFE construction is ideal for aggressive electrolytes where glass is unsuitable.
Scalable Volumes: Choose your reservoir size (250, 500, or 1000 mL) to match your experimental needs.

Read more about the product

Configure product

About the product

The Next Generation of Electrolyte Management for Advanced Research

The Hydraulic Connection Package with Multiport Reservoirs represents a significant leap forward for researchers in the fields of flow batteries, electrolysis, and other advanced electrochemical applications. This comprehensive kit replaces traditional, limited glass flask setups with a fully integrated, temperature-controlled, and highly flexible dual-reservoir system. It provides all the high-quality components needed to build a robust hydraulic loop, giving you precise control over your anolyte and catholyte and enabling more complex and reliable experiments.

From Passive Flasks to Active, Controlled Reservoirs

While standard glass flasks serve a basic purpose, modern research demands greater control and flexibility. Our system is built around two of our advanced Multiport Reservoirs, transforming your electrolyte storage from a passive component into an active, controlled part of your experiment. Each reservoir features:

Integrated Temperature Control: A stainless steel heating and cooling plate at the base of each reservoir allows for precise thermal management, ensuring uniform temperature and eliminating thermal gradients that can affect performance and lead to unreliable data.
Nine Configurable Ports: With a total of 18 ports across two reservoirs, the possibilities for your experimental setup are nearly limitless. Use the extra ports for gas sparging/purging, electrolyte sampling, integrating inline sensors (pH, reference electrodes, conductivity), or creating complex multi-stream flow patterns.
High Chemical Resistance: The reservoirs are constructed from a polypropylene (PP) body with a protective PTFE film, making them inert and suitable for a wide range of aggressive electrolytes, including the strong alkaline solutions that can corrode glass over time.

A Complete, High-Quality Connection Kit

This package includes more than just the advanced reservoirs. You receive a complete set of high-quality fittings and tubing to ensure a leak-free and chemically resistant flow path. All components are designed for 1/8″ systems and are selected for their durability and compatibility with demanding research environments.

The kit includes:

PEEK Unions and Connectors: For robust, chemically inert connections.
PTFE Hard Tubing: To ensure a clean, contamination-free path for your electrolyte.
Flexible Peristaltic Pump Tubing: For easy integration with your pumping system.
All Necessary Fittings: Including barbed fittings, flangeless nuts, ferrules, and a Y-piece connector to build a complete hydraulic circuit right out of the box.

Scalable and Adaptable to Your Research Needs

We understand that research needs evolve. That’s why the Hydraulic Connection Package allows you to select the reservoir volume that best fits your application. Choose a matched pair of 250 mL, 500 mL, or 1000 mL reservoirs to scale your experiments from initial material screening to pilot-scale system validation. This modular approach ensures that your investment remains valuable as your research progresses.

Reservoirs: 2 x Multiport Reservoirs (Customer to select size: 250 mL, 500 mL, or 1000 mL)

Material: Polypropylene (PP) Body, PTFE Protective Film
Ports: 9 per reservoir (3 in lid, 6 in body)
Temperature Control: Integrated Stainless Steel Heating/Cooling Plate

Tubing (1/8″ OD):

8 meters PTFE Hard Tubing (1.6 mm ID)
2 meters Peristaltic Pump Tubing (#14)

Fittings & Connectors (1/8″)

8 x PEEK Unions
8 x Barbed Fittings (for 1.6-2.4 mm ID tube)
11 x Flangeless Nuts
26 x Yellow Ferrules
1 x Y-Piece Female Connector

Accessories:

Syringe
Tube Clamps
Tube Cutter
