Porous Separator Sealing Gasket for X cell

$22.42 – $67.26

Sealing gasket for the X-Cell series, for thick porous separators to prevent leaking through the separator.

About the product

GASKET TYPE : In (alkaline) electrolysis porous separators are sometimes used. Depending on the thickness and porosity of the separators, these can leak through the side of the separator. This gasket seal around the separator and prevents possible leaking. It is recommended that the gaskets is <0.05 mm – 0.2 mm thinner than the separator.

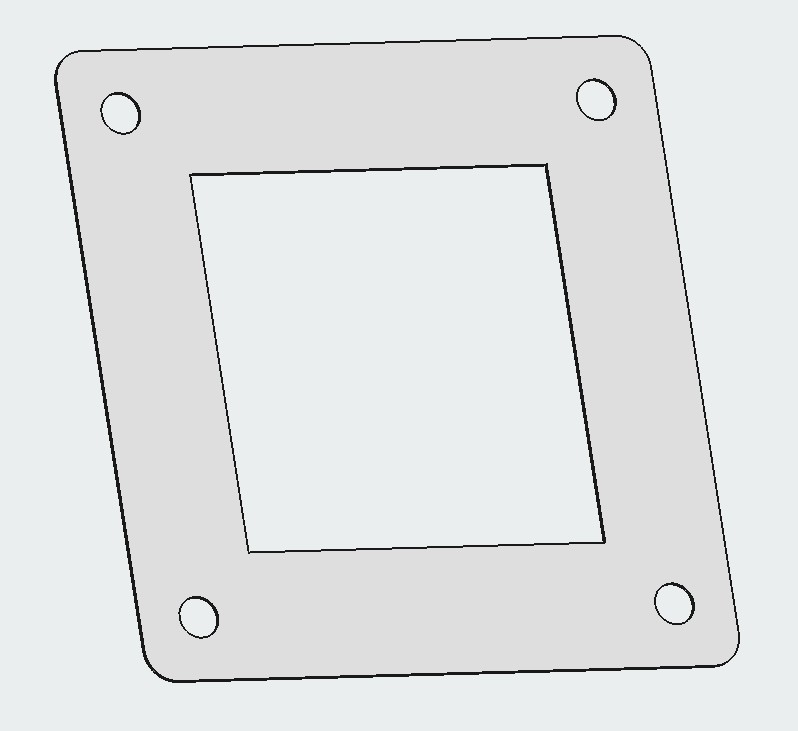

The Separator Sealing Gasket is produced with an open area of 6.0 cm x 6.0 cm area – see photo below

SINGLE GASKETS & PACKS OF GASKETS:

Gasket can be ordered individually, however, we also offer a pack gaskets with a volume discount. The combined thickness of the gaskets should match the thickness of the porous membrane/separator.

Separator Sealing Gasket Pack

2 pieces – 0.1mm PTFE
1 piece – 0.25 mm PTFE
1 piece – 0.5 mm PTFE
1 piece – 1 mm EPDM or VITON

Compatible with all Redox-Flow cells of 2.5×2.5 and 5.0×5.0 cm active area, except for the stack. But it is specifically designed for the X-Cell General Flow Cell and X-Cell – with ports for reference electrodes.

GENERAL: Gaskets are supplied in either PTFE, VITON or EPDM. VITON and EPDM is more flexible and will easily seal the cells, however, the minimum thickness of VITON/EPDM gaskets is 0.5 mm. PTFE gaskets are more rigid but comes in thicknesses down to 0.05 mm. Combination of several (both PTFE and Viton) gaskets can be done to ensure right electrode thickness/compression.

PTFE: Overall most corrosion resistant material and comes with thicknesses down to 0.05 mm. But rigid and less good sealing properties

VITON: Compressible that will make cell sealing easy. Redox-Flow recommends VITON (and PTFE) for Vanadium flow battery applications – please see a chemical compatibility chart of VITON for your specific application

EPDM:Compressible that will make cell sealing easy. Redox-Flow recommends EPDM (and PTFE) for alkaline conditions – please see a chemical compatibility chart of EPDM for your specific application

Open area of 6.0 cm x 6.0 cm for the porous membrane.
