Gaskets for S-Stack

GP-SS-001-001

From: $0.00

Gaskets for the S-Stack electrolysis cell. All gaskets for the X-Stack are for 5×5 cm active area.

Read more about the product

Cover and Spacer Gaskets for S-Stack

1 set of gaskets contains 2 pieces.
Only for the S-Stack product.

Add for $48.38 – $226.56 each

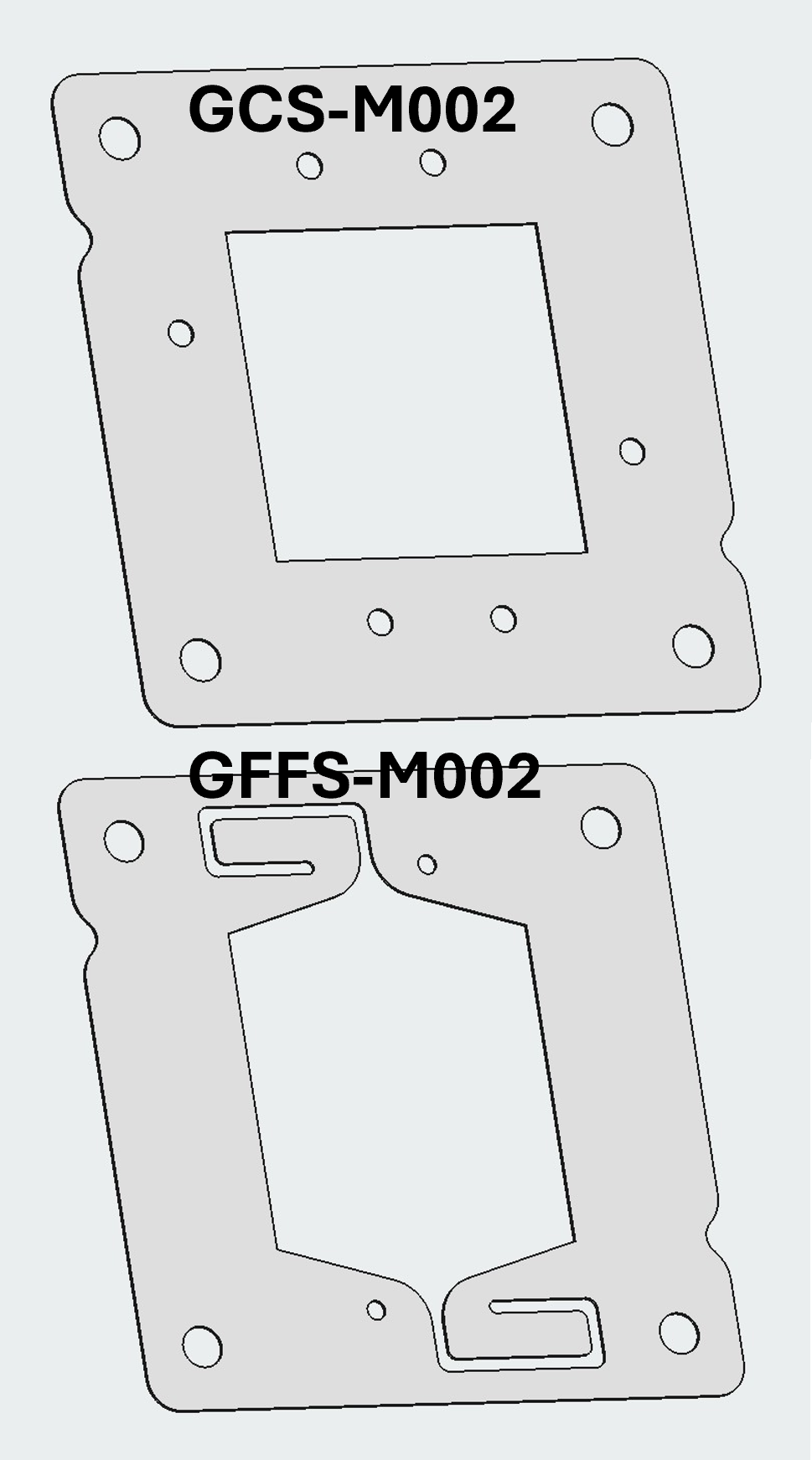

TDC GFFS-M002 Flow field gasket Ø3 manifold

Flow Field Gaskets for S-Stack

1 set of gaskets contains 2 pieces.
Only for the S-Stack product.

Add for $76.70 each

▲ ▼

About the product

Gaskets for the S-Stack electrolysis cell. All gaskets for the X-Stack are for 5×5 cm active area.

Configuration of the Stack and gaskets

The stack can be configured wiht up to 9 cells. Each cell is build up around a membrane (not included), with an electrode on each side and a bipolar plate in graphite. The electrodes (5×5 cm, not included) are placed within a set of gaskets, consisiting of cover gaskets and a central flow-field gaskets, specifically designed for the S-Stack for best performance. Hence for each cell, 4 cover gaskets (2 sets) and 2 flow-field gaskets (1 set) are needed. The combined thickness of the cover gaskets and flow-field gasket on each side, should match the desired compressed thickness of the electrodes.

SINGLE GASKETS & PACKS OF GASKETS:

Gasket can be ordered individually, however, we also offer packs of Spacer/Cover gaskets with a volume discount. These pack includes gaskets with thicknesses that will allow testing and compression of almost any electrodes thicknesses. Typically the PTFE Thin Pack will be combined with one the PTFE.

PTFE Thin Pack includes sets (one pair) of

2 sets – 0.05mm PTFE
2 sets – 0.1 mm PTFE
2 set – 0.25 mm PTFE
1 set – 0.5 mm PTFE

Membranes and electrodes

See our selection of membranes for flow-battery cells here.

See our selection of carbon electrodes for flow-battery cells here.

Gaskets are supplied in either PTFE, VITON or EPDM. VITON and EPDM is more flexible and will easily seal the cells, however, the minimum thickness of VITON/EPDM gaskets is 0.5 mm. PTFE gaskets are more rigid but comes in thicknesses down to 0.05 mm. Combination of several (both PTFE and Viton) gaskets can be done to ensure right electrode thickness/compression.

PTFE: Overall most corrosion resistant material and comes with thicknesses down to 0.05 mm. But rigid and less good sealing properties

VITON: Compressible that will make cell sealing easy. Redox-Flow recommends VITON (and PTFE) for Vanadium flow battery applications – please see a chemical compatibility chart of VITON for your specific application

EPDM:Compressible that will make cell sealing easy. Redox-Flow recommends EPDM (and PTFE) for alkaline conditions – please see a chemical compatibility chart of EPDM for your specific application

Support & Inquiry

Do you have specific questions or would you like help in selection and configuration of our product:

Gaskets for S-Stack

You are very welcome to contact us in the form here. We are ready to support you in selecting the best solutions for your R&D.

Always include as much information as you can about your project, what type of chemistry you are planning to use, what is the purpose of the equipment you are interested in. That will make it much easier for us to guide you towards the best solution for your project.
