S-Stack Individual Cell

FCP-SS-01-003

$489.70

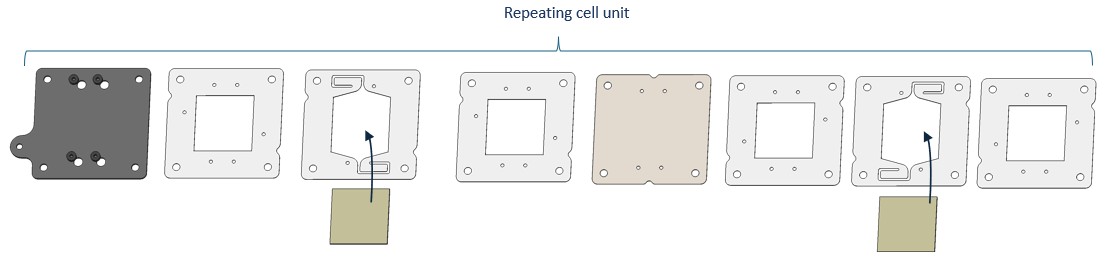

Individual cell for S-Stack.

The package contains bipolar graphite plate, ring gaskets, 2 sets of cover gaskets and 1 set of special stack flow field gaskets. Add extra gaskets per cell at a discount.

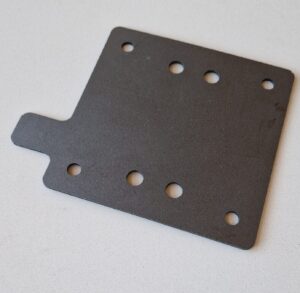

Graphite Bipolar Plates for S-Cell and S-Stack (1)

  • Thickness: 2mm
  • Hard graphite/polymer composite
  • Amount: 1 piece per package

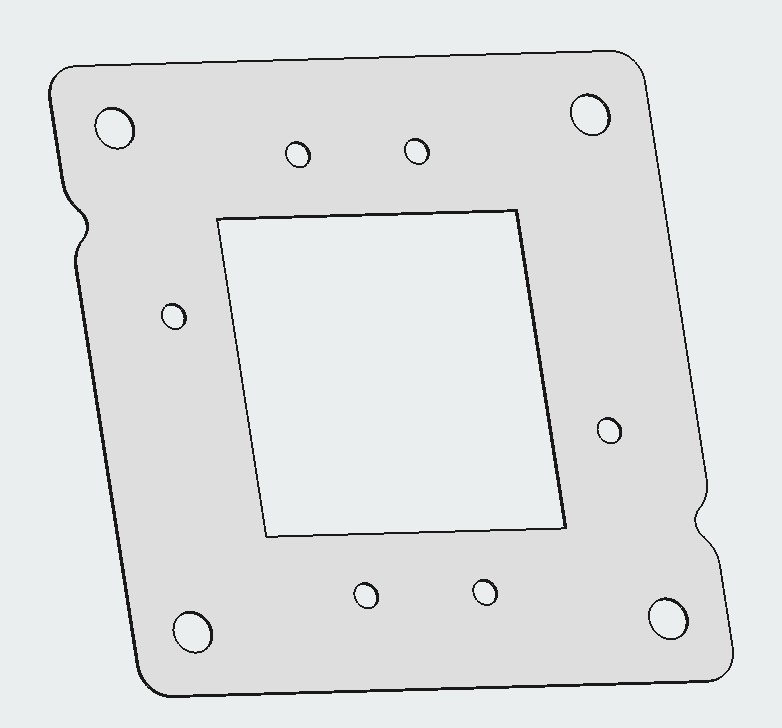

Cover gasket 1 for S-Stack Cell

Cover gasket 1 - two sets of cover gaskets needed per cell. Combination of cover gaskets and flow field gaskets should have the desired electrode compression thickness.

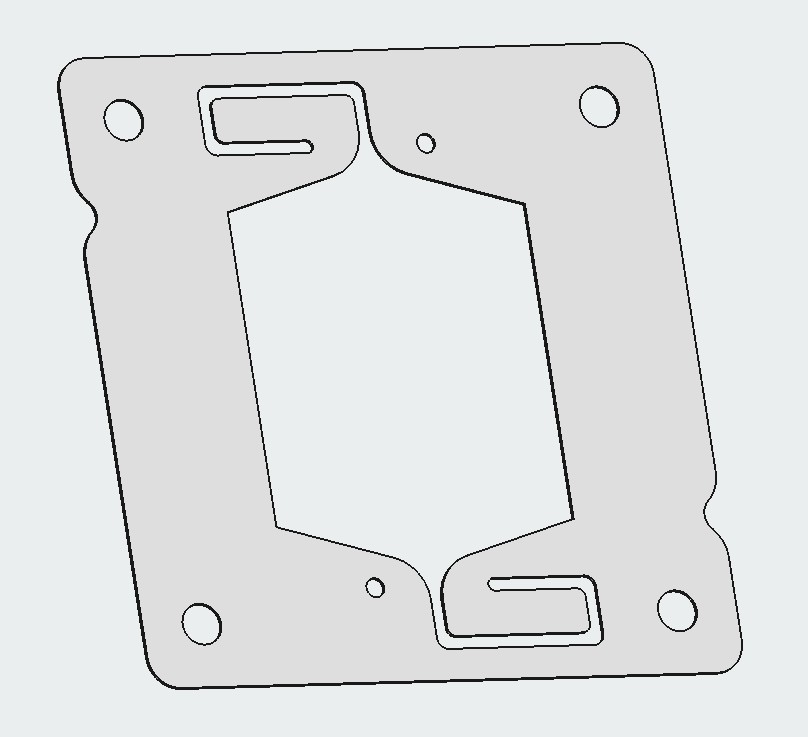

Flow field gasket for S-Stack Cell

One set of flow-field gasket needed per cell in the stack. Combination of cover gaskets and flow field gaskets should have the desired electrode compression thickness. We recommend to use at least 1 mm thickness of the flow field gasket.

Cover gasket 2 for S-Stack Cell

Cover gasket 2 - two sets of cover gaskets needed per cell. Combination of cover gaskets and flow field gaskets should have the desired electrode compression thickness.

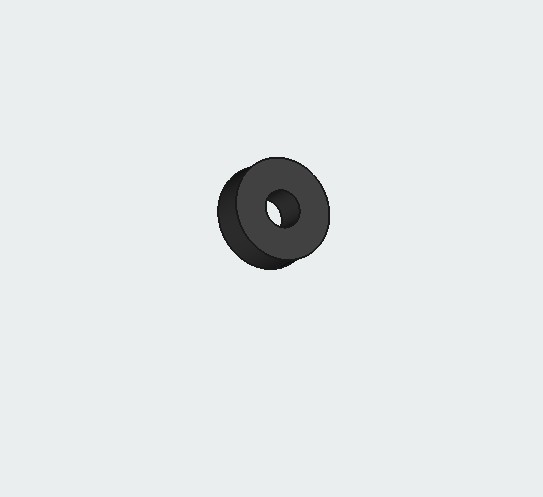

Ring gasket /w hole ID ø3 × 5

Ring gasket for Redox Flow Cells with 3 mm ID hole.

Materials: EPDM or Viton
