Graphite flow body for S-Cell

CP-FB-GR-001

$837.80

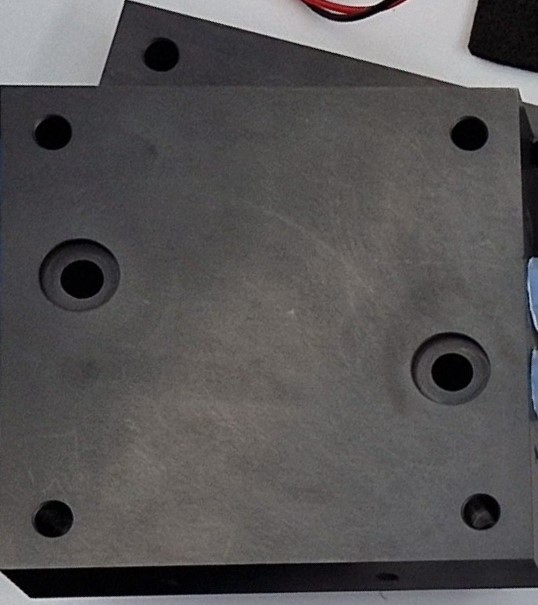

  • Graphite flow-body (replacement part) for the S-Cell Flow-battery cell and the S-Stack.

    • 1 piece per package (two needed per cell)
    • Can be operated in full pH range – from strongly acidic to strongly alkaline
    • Comes with PFA Swagelok connectors (for 1/8″ tubing)

About the product

This is a replacement part for the S-Cell, electrochemical flow-cell and for the S-Stack for flow-batteries and other electrochemical experiments.





  • Density: 1.92 g/cm³
  • Resistivity: 9 μΩ·m
  • Compressive Strength: 100 MPa
  • Flexural Strength: 60 MPa
  • Shore Hardness: 65 HSD
  • Air Permeability: Non-Permeable
  • Working Temperature: 150–250 °C
