Graphite Flow Body for A-Cell (1/8″)

Price range: $963.90 through $1 541.05

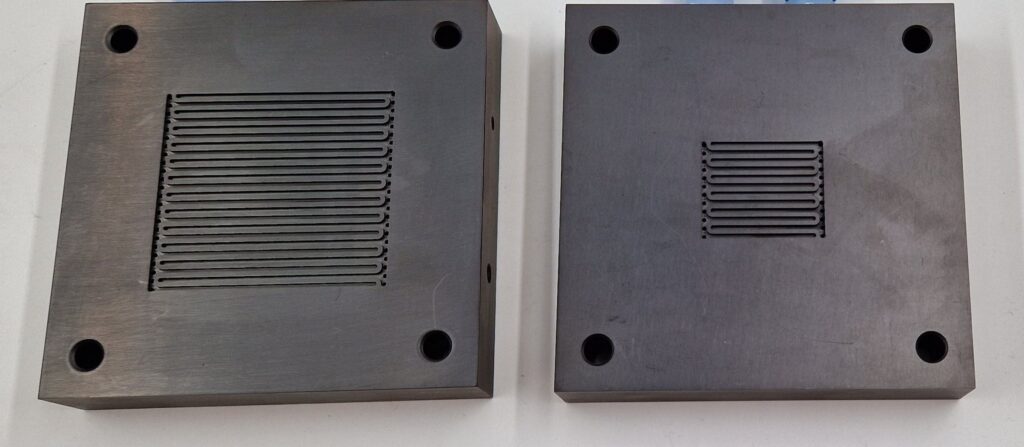

Graphite flow-body (replacement part) for the A-Cell Flow-battery cell, with integrated flow-field (2.5cm x 2.5cm OR 5cm x 5cm).

  • 1 piece per package (two needed per cell)
  • 2.5cm x 2.5cm OR 5cm x 5cm – other areas are available on request
  • Interdigitated flow field
  • Can be operated in full pH range – from strongly acidic to strongly alkaline
  • Comes with PFA Swagelok connectors (for 1/8″ tubing)

About the product

This is a replacement part for the A-Cell, electrochemical flow-cell for flow-batteries and other electrochemical experiments.

The Flow-body comes with an integrated interdigitated flow-field.

  • Density: 1.92 g/cm³
  • Resistivity: 9 μΩ·m
  • Compressive Strength: 100 MPa
  • Flexural Strength: 60 MPa
  • Shore Hardness: 65 HSD
  • Air Permeability: Non-Permeable
  • Working Temperature: 150–250 °C
