From: 2,430.00 €
An intelligent, multi-channel peristaltic pump with precise flow control, ideal for demanding research applications in flow batteries and electrolysis.

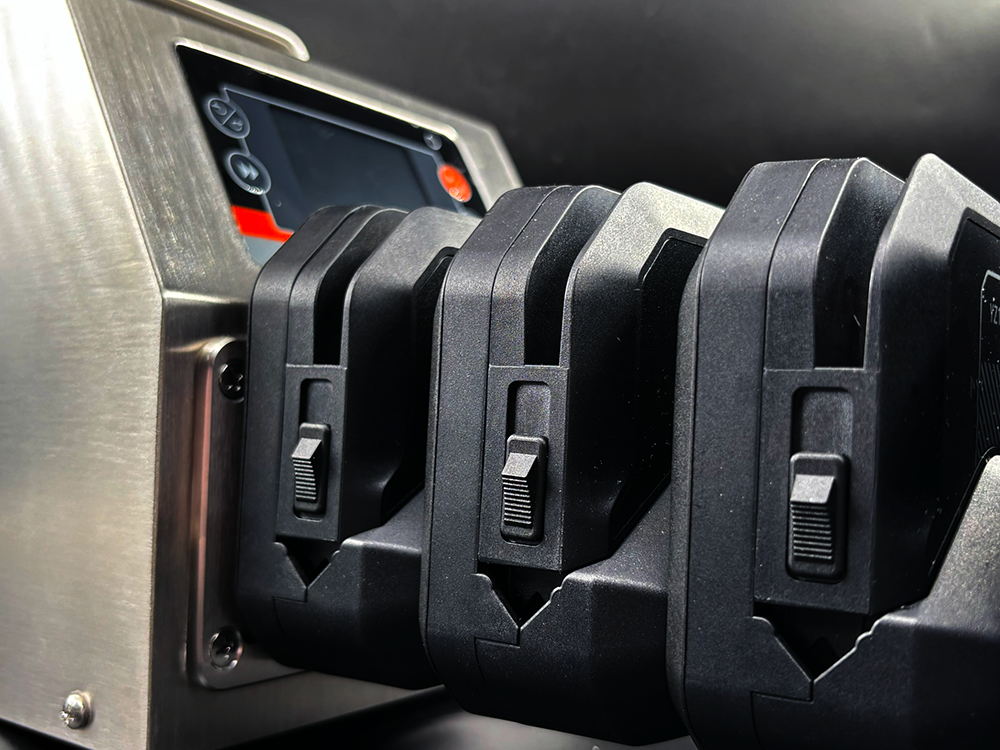

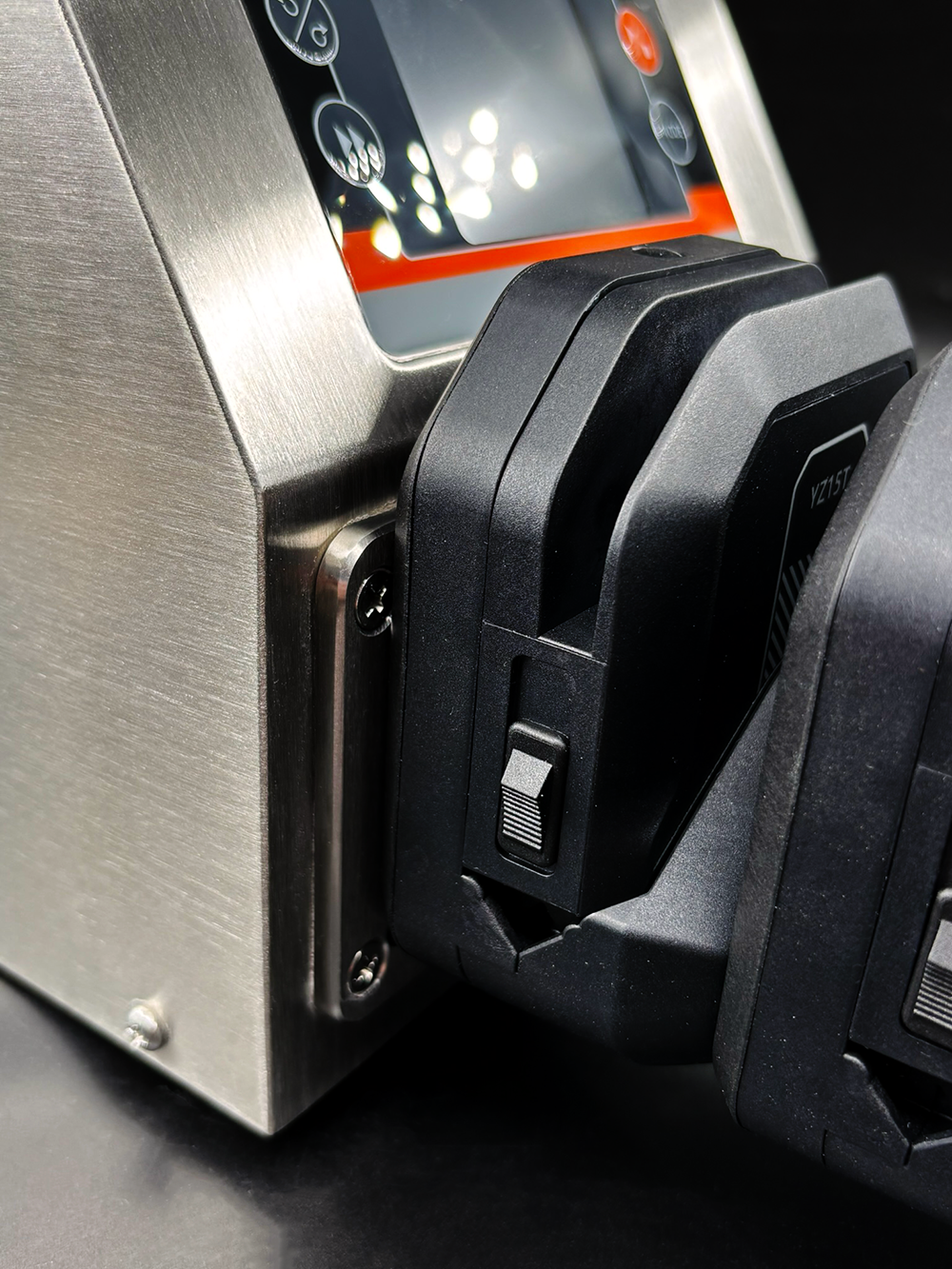

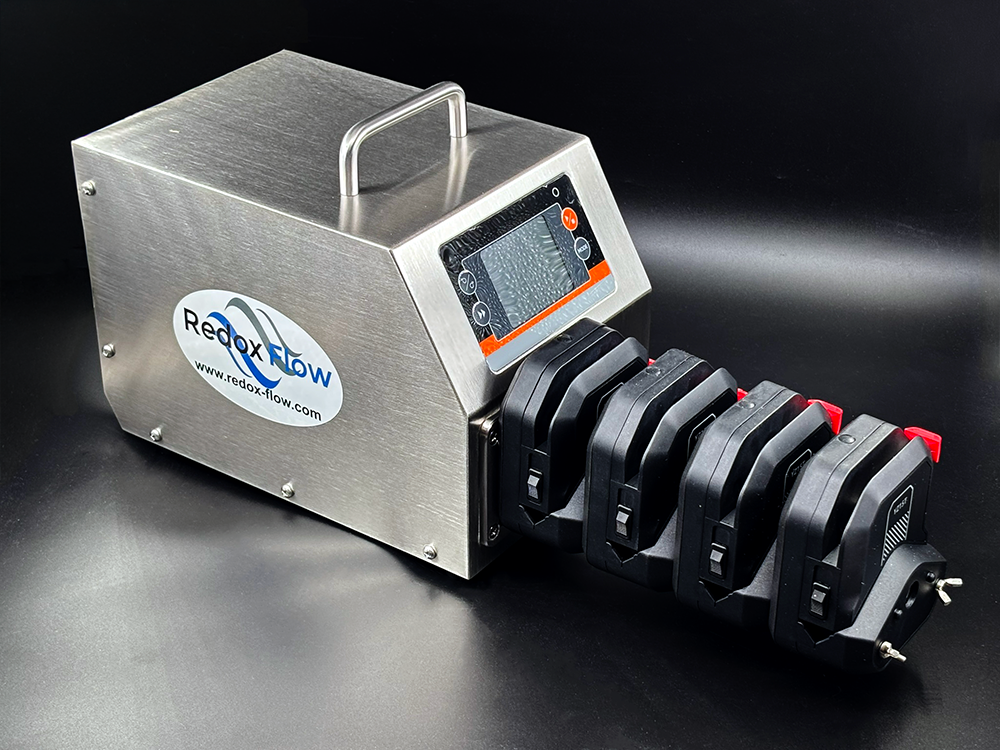

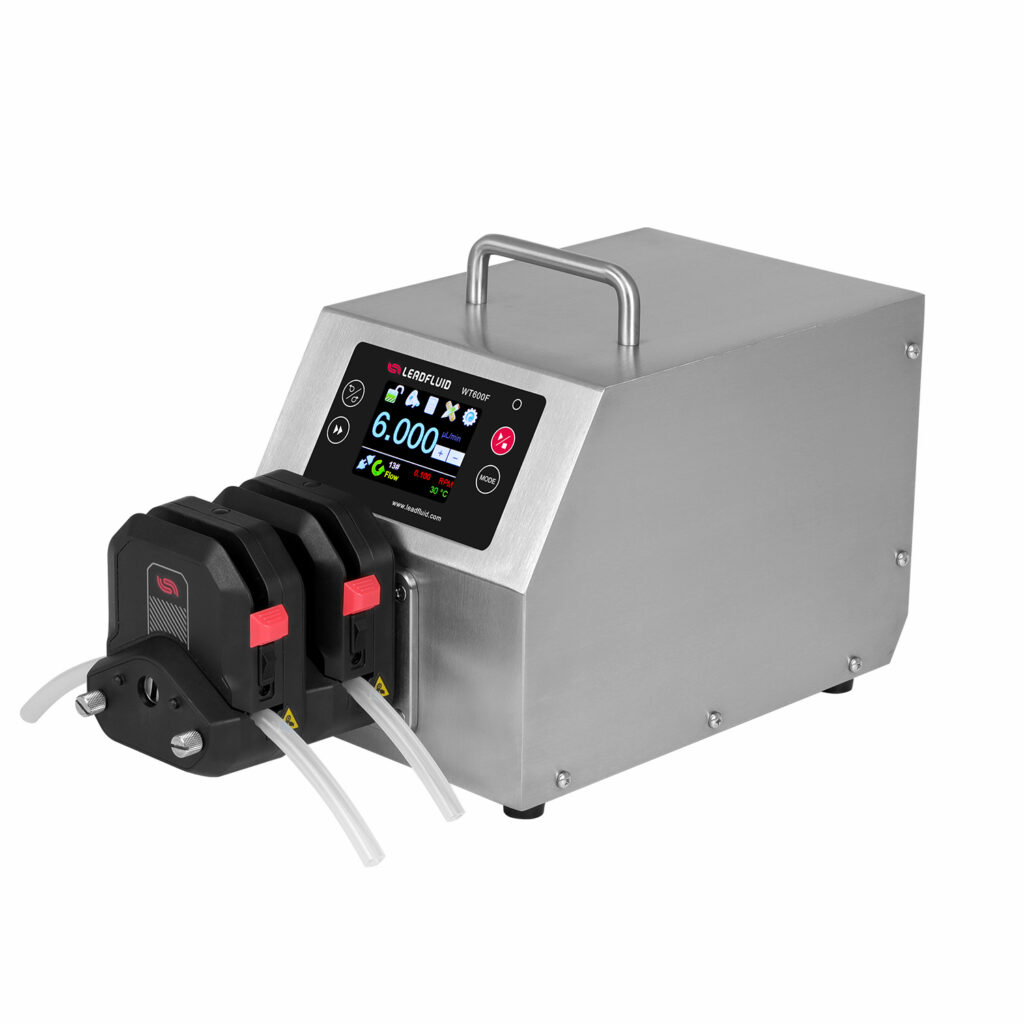

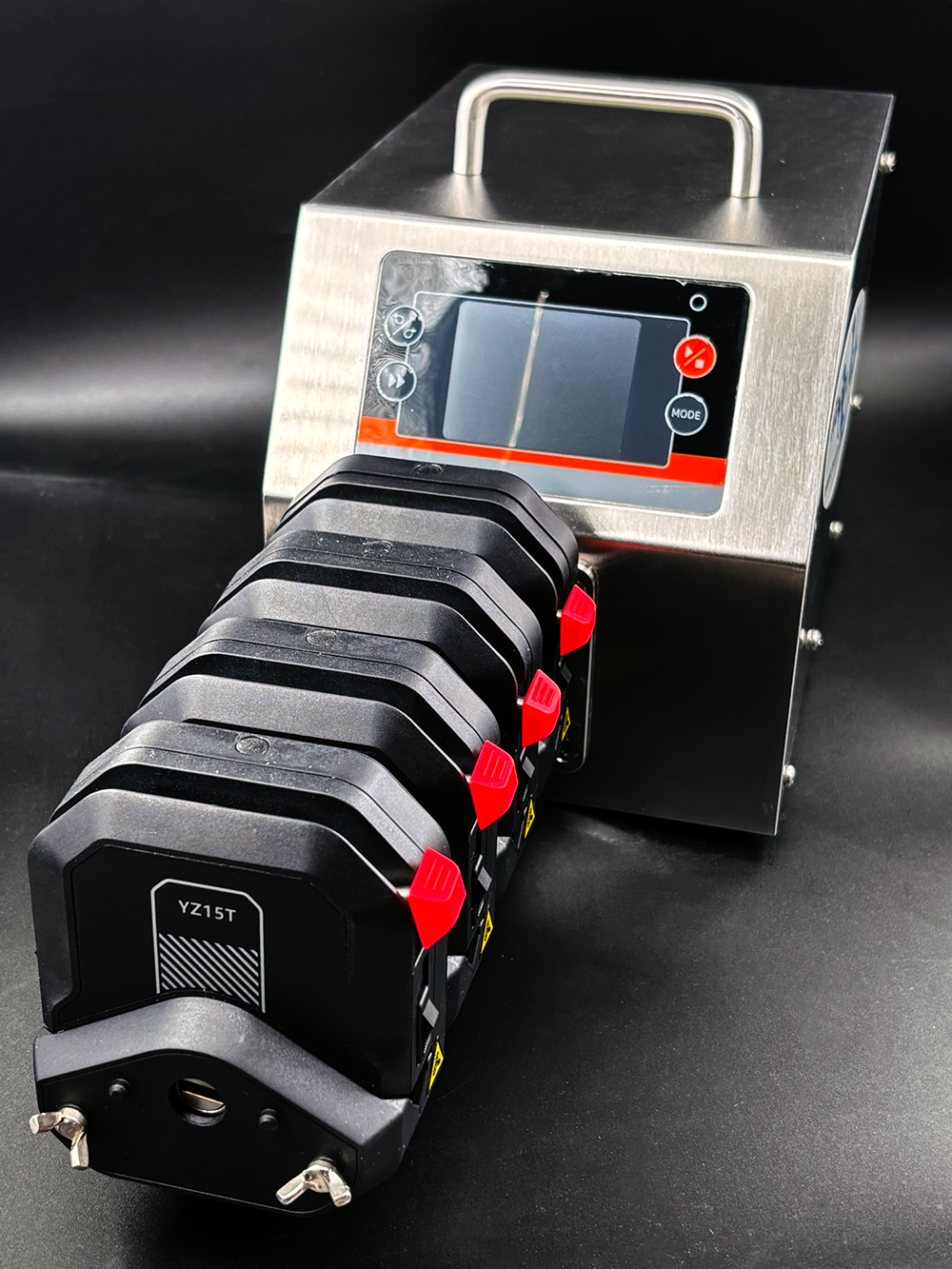

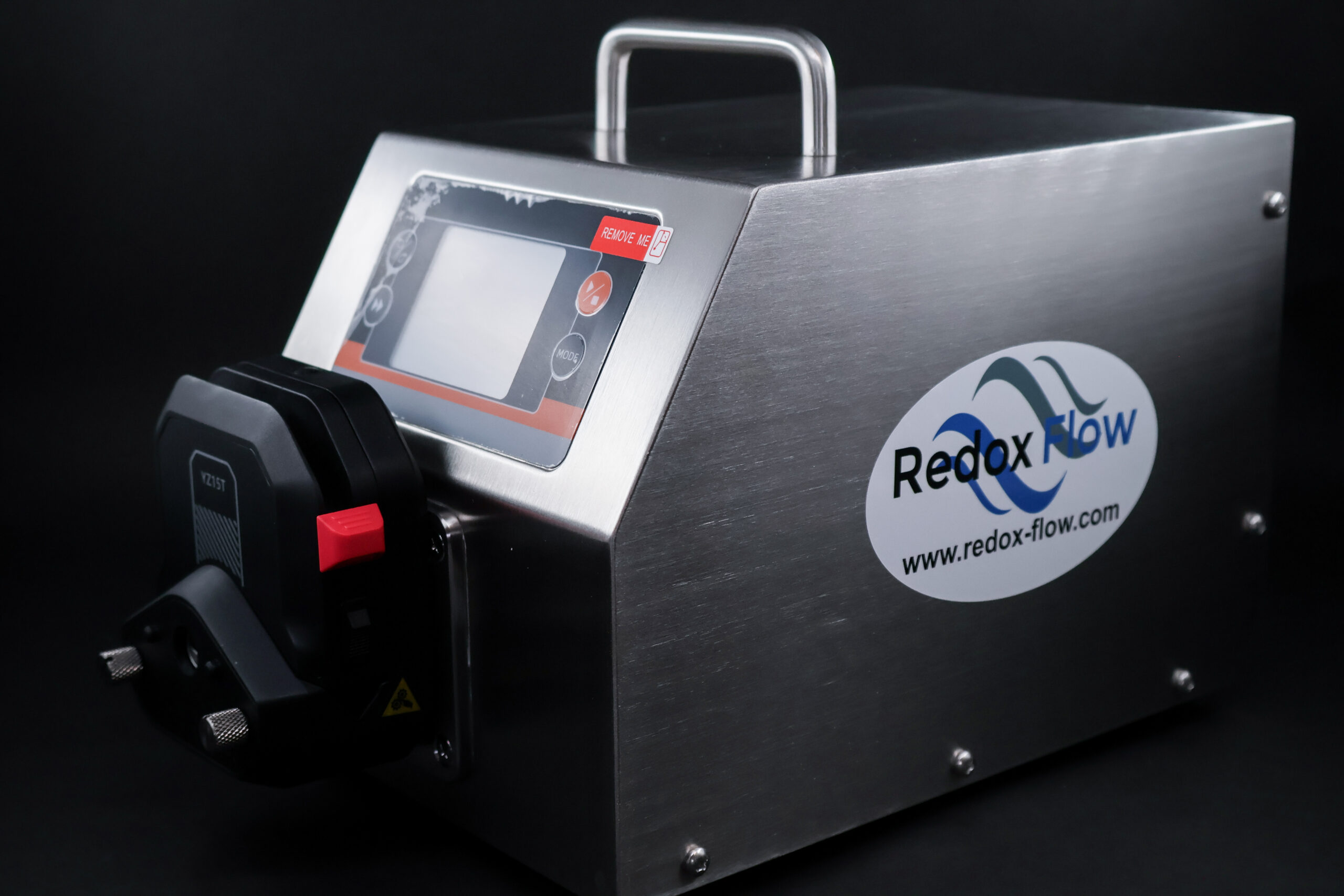

The WT600F is a high-precision, intelligent dispensing peristaltic pump designed for a wide range of research and industrial applications. Its intuitive color LCD touch screen and advanced features make it an ideal choice for use with our electrochemical flow cells. The pump is supplied with the YZ15 pump head and can be configured with up to four channels, providing excellent flexibility for your experiments.
|
Parameter
|
Value
|
|---|---|
|
Flow Rate
|
0.005 – 2562 mL/min (with YZ15 head)
|
|
Speed Range
|
0.1 – 600 rpm
|
|
Speed Resolution
|
0.1 rpm
|
|
Speed Accuracy
|
< ±0.2%
|
|
Pump Head
|
YZ15 (up to 4 channels)
|
|
Dispensing Volume
|
0.001 µL – 9999 L
|
|
Display
|
Color LCD touch screen
|
|
Control
|
Touch screen and keypad
|
|
External Control
|
Start/stop, direction, and speed control (5V, 12V, 24V, 0-5V, 0-10V, 4-20mA)
|
|
Communication
|
RS485, MODBUS protocol
|
|
Power Supply
|
AC 100-240V, 50/60Hz
|
|
Dimensions (L×W×H)
|
286 × 180 × 230 mm
|
|
Weight
|
5.5 kg
|
Do you have specific questions or would you like help in selection and configuration of our product:
You are very welcome to contact us in the form here. We are ready to support you in selecting the best solutions for your R&D.
Always include as much information as you can about your project, what type of chemistry you are planning to use, what is the purpose of the equipment you are interested in. That will make it much easier for us to guide you towards the best solution for your project.
