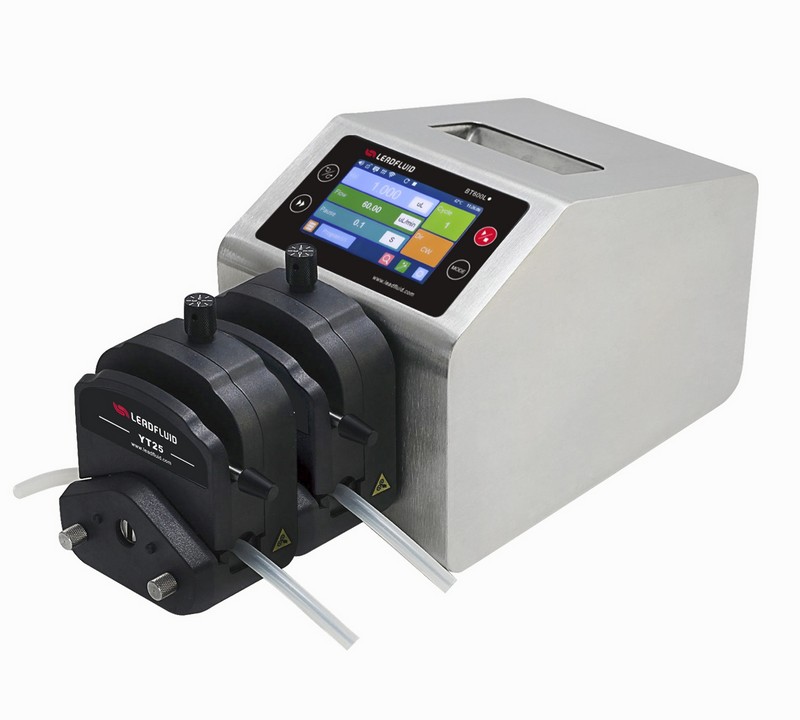

Peristaltic Pump with up to 2 channels

CP2C-01-001

From: $1 675.60

2 Channel peristaltic pump, ideal for circulating both solutions on either side of an electrochemical test cell (RFB or electrolysis).

Highlights

  • Color LCD display, touch screen and keypad
  • Stainless steel enclosure
  • Flow rate calibration
  • Reversible direction, start/stop and adjustable speed

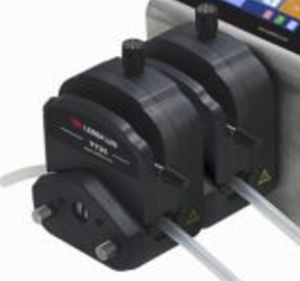

Pump head for peristaltic pump

Single peristaltic pump head

$283.20 each

About the product

This 2-channel peristaltic pump ensures a simple way of circulating both solvents through a redox flow battery or an electrolyser test cell.

Functions and features include:

  • Color LCD display, touch screen and keypad.
  • Reversible direction, start/stop and adjustable speed.
  • Flow rate calibration.
  • Flow rate display and control; Cumulative dispensed volume display.
  • Anti-drip function ensures dispensing accuracy.
  • 0.2% high precision rotating speed control with 0.1 rpm speed resolution.
  • External logic level signal can control start/stop, direction and easy dispense function; external analog signal can adjust the rotating speed.
  • Control signal is optically isolated.
  • With RS485 MODBUS interface it is easy to communicate with external devices. Suitable cables can be made available upon request.

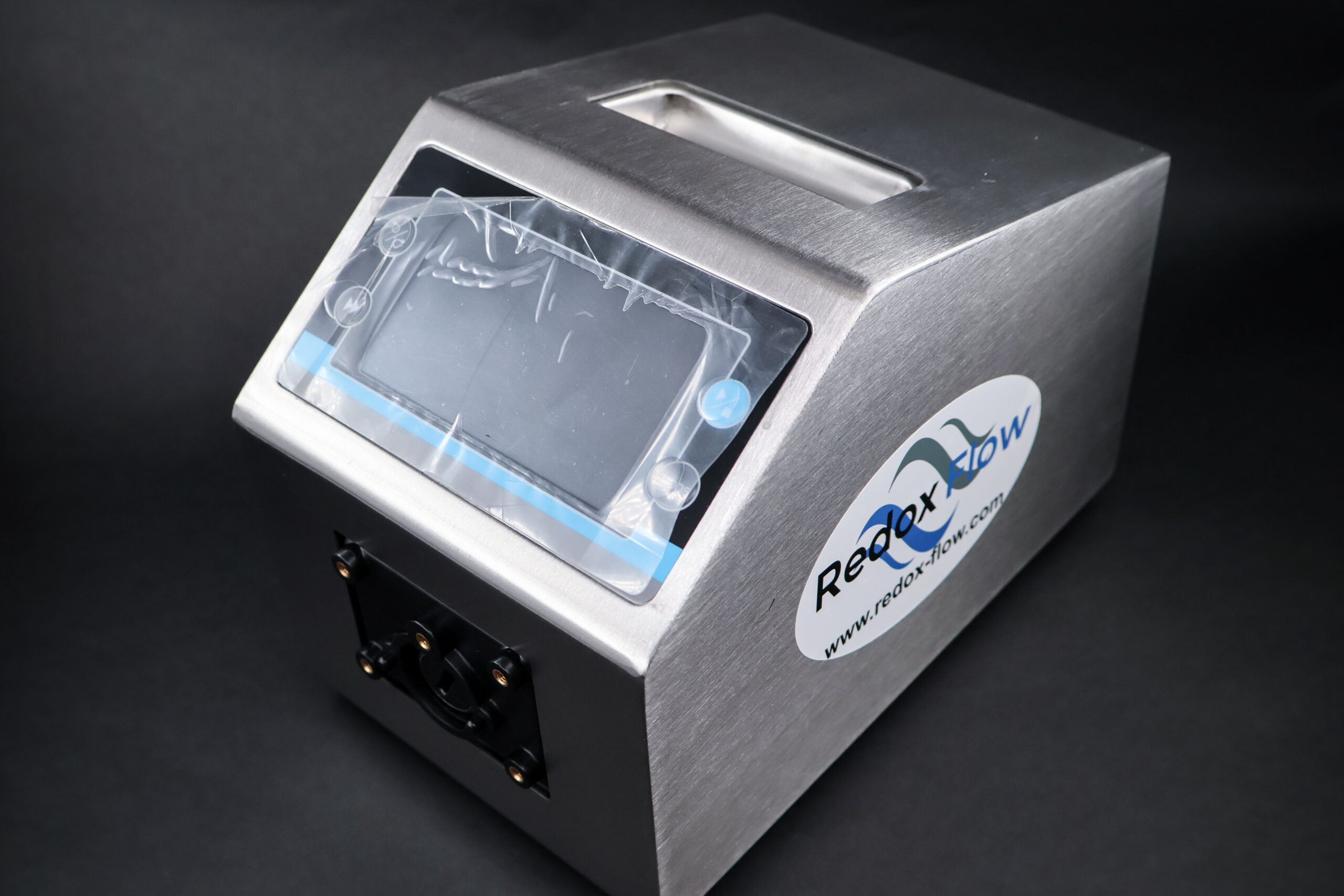

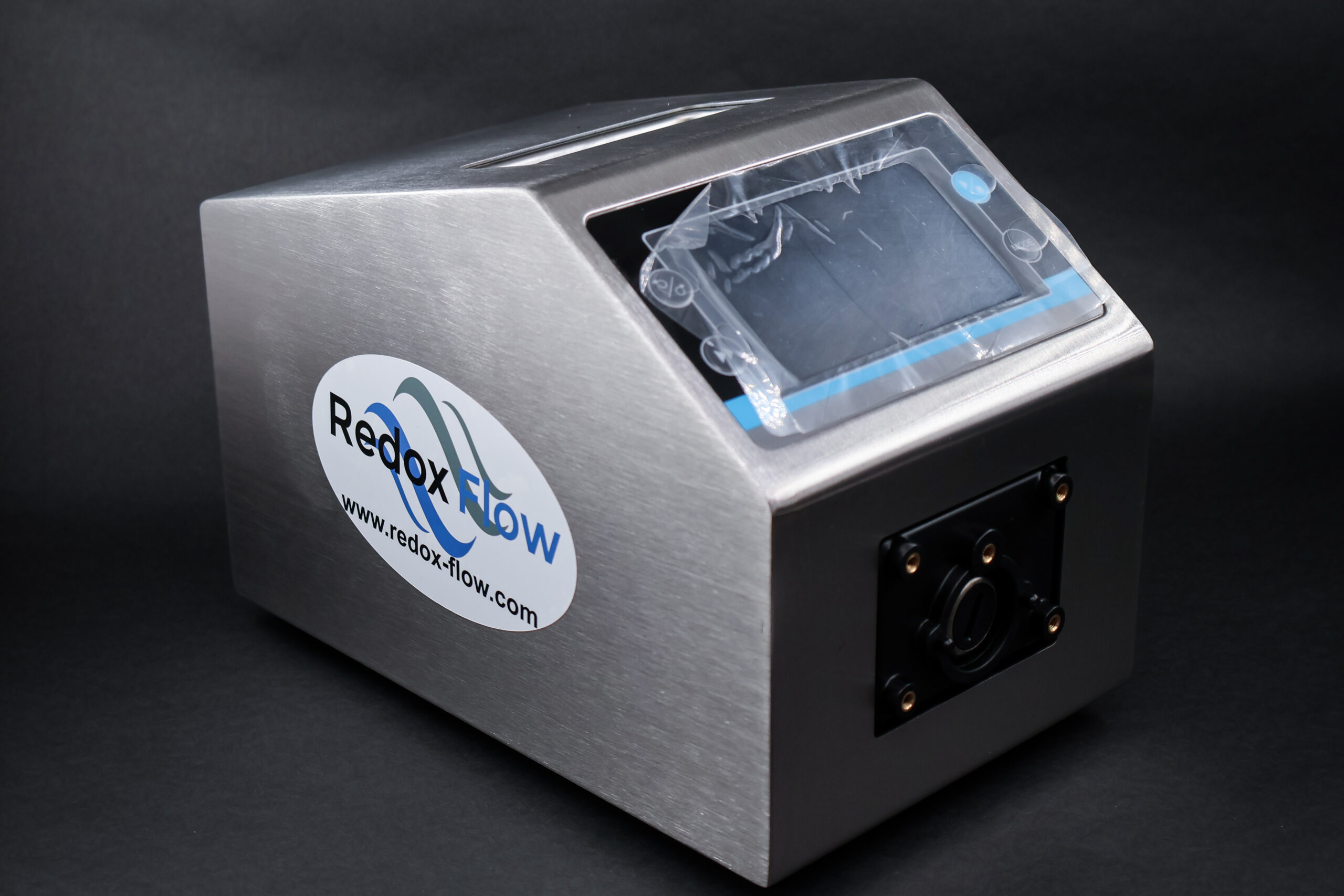

  • Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
  • Pump has very high linearity between rotation speed and flow rate and almost independent of hydraulic load. This means that flow rate can be calibrated by a simple 1-point calibration.
  • PC software that enables external control/programming of the pump.
  • Flow range: 0.006-2900 mL/min
  • Speed range: 0.1-600 rpm
  • Speed resolution: 0.1 rpm
  • Speed accuracy: 0.2%
  • External logic level control signal: 5V, 12V (standard), 24V (optional)
  • External analog control signal: 0 – 5V (standard), 0 – 10V, 4 – 20mA (optional)
  • Communication interface: RS485 MODBUS
  • Ambient temperature: 0 – 40°C
  • Relative humidity: < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
  • Weight: 5.5 kg (12.1 lbs)

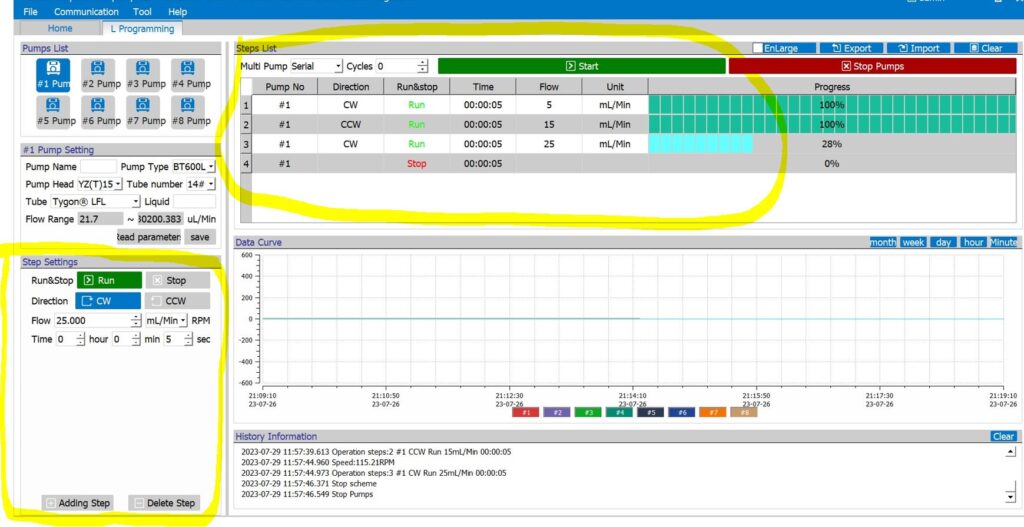

PC software interface allows sequence programming of the pump rates. The picture below shows an example of this. On the right top side the sequence is shown with flow rates of 5 ml/min, 15 ml/min and 25 ml/min for 5 seconds each. The 15 ml/min is in opposite flow direction (CCW). Lower lest side shows the programming options. To utilize this PC program a USB/RS485 DB15 cable and a non-free license for the program is needed – please make a request if you have interest in this option
