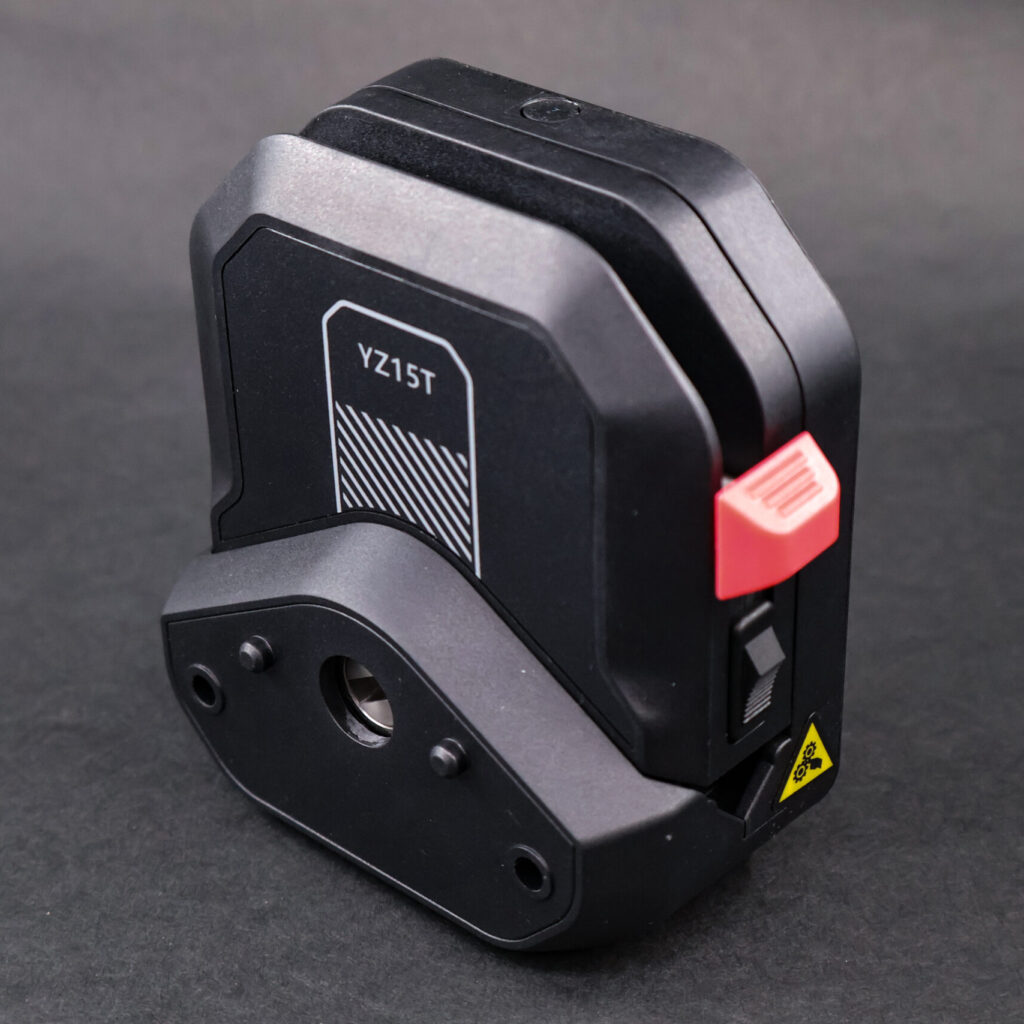

Pump head for peristaltic pump

PH-YZ15

$283.20

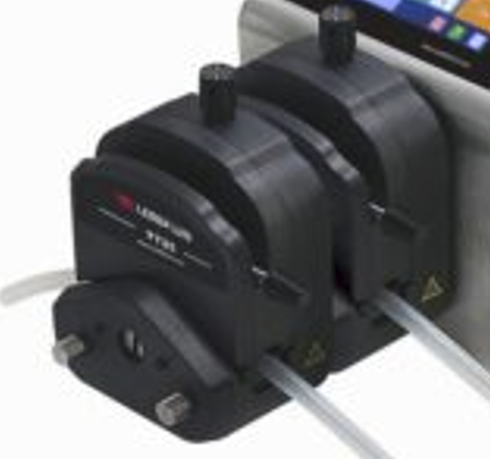

Single peristaltic pump head for:

2 Channel peristaltic pump, ideal for circulating both solutions on either side of a redox flow battery test cell.

Highlights of the 2 Channel peristaltic pump

  • Color LCD display, touch screen and keypad
  • Stainless steel enclosure
  • Flow rate calibration
  • Reversible direction, start/stop and adjustable speed

About the product

DESCRIPTION:

Single pump head for our peristaltic pump. This 2-channel peristaltic pump ensures a simple way of circulating both solvents through a redox flow battery or an electrolyser test cell.

TECHNICAL SPECIFICATIONS of the 2-channel peristaltic pump:

  • Flow range: 0.006-2900 mL/min
  • Speed range: 0.1-600 rpm
  • Speed resolution: 0.1 rpm
  • Speed accuracy: 0.2%
  • External logic level control signal: 5V, 12V (standard), 24V (optional)
  • External analog control signal: 0 – 5V (standard), 0 – 10V, 4 – 20mA (optional)
  • Communication interface: RS485 MODBUS
  • Ambient temperature: 0 – 40°C
  • Relative humidity: < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
  • Weight: 5.5 kg (12.1 lbs)
