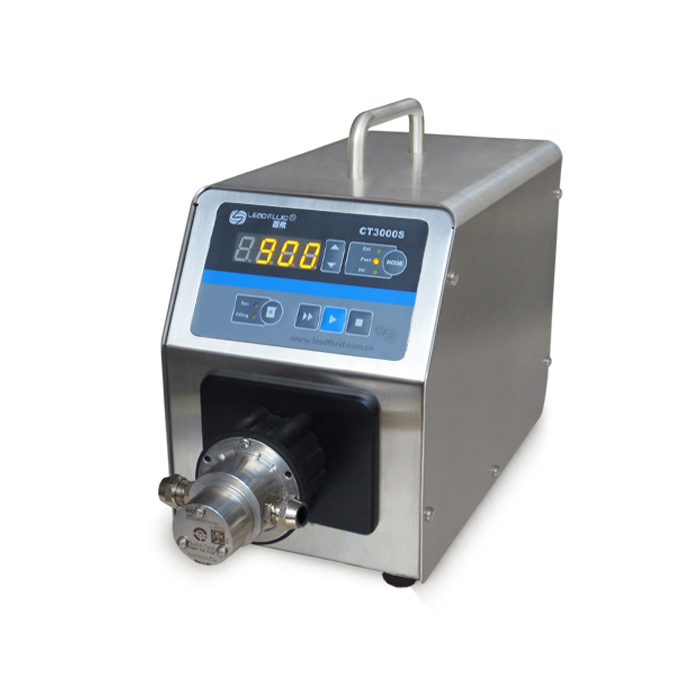

1-channel gear pump

2,200.00

1-channel gear pump as an alternative to the peristaltic pump for heavy duty operations like high temperatures or high static pressures

HIGHLIGTHS:

  • Variable speed
  • Mag drive
  • External control
  • Reversible direction, start/stop and adjustable speed
  • High temperature (up to 120°C)  and high static pressure operation



About the product

High performance, low noise of micro gear pump, adopts brushless motor, stainless steel, magnetic drive pump. Gear drive is constructed in PEEK. Drives use stainless steel casing, digital tube display, key operation, can be easily set parameters. Speed display, light display status, suitable for all kinds of experimental areas. Can be controlled externally and cable for control can be bought and there is software available for control/programming of pump.

  • Flow range: 90-2700ml/min
  • Speed range: 300-3000rpm/min
  • Speed resolution: 1rpm/min,accuracy 3%
  • 4 LED digital display
  • Power supply AC 100-240V 50Hz/60Hz(standard)
  • consumption <150W
  • Environment 0~ 40℃ humidity <80%
  • Dimensions: 320X150X 237 mm
  • Weight: 5.5kg
  • IP31
