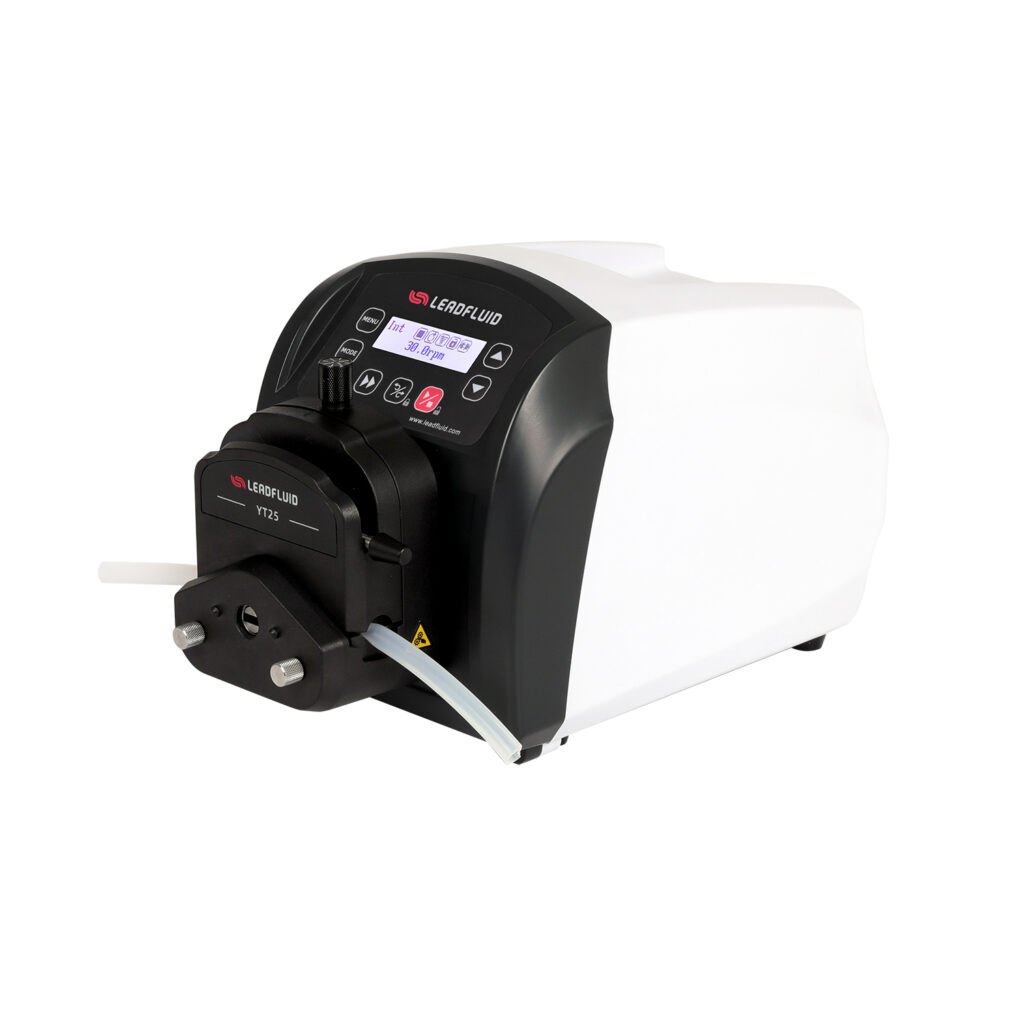

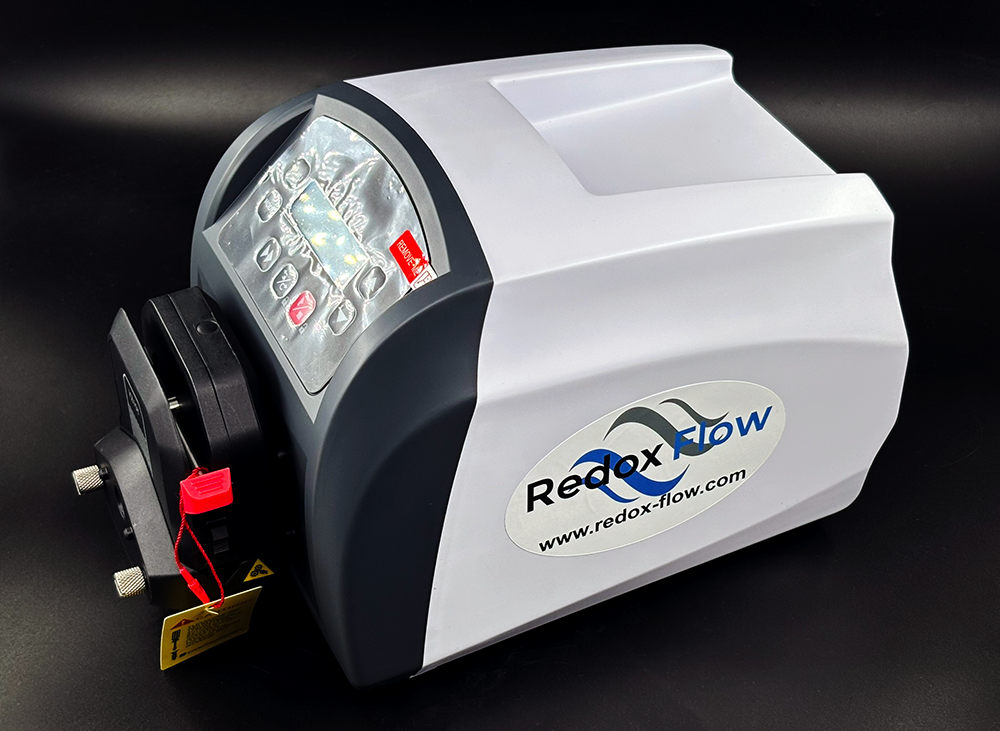

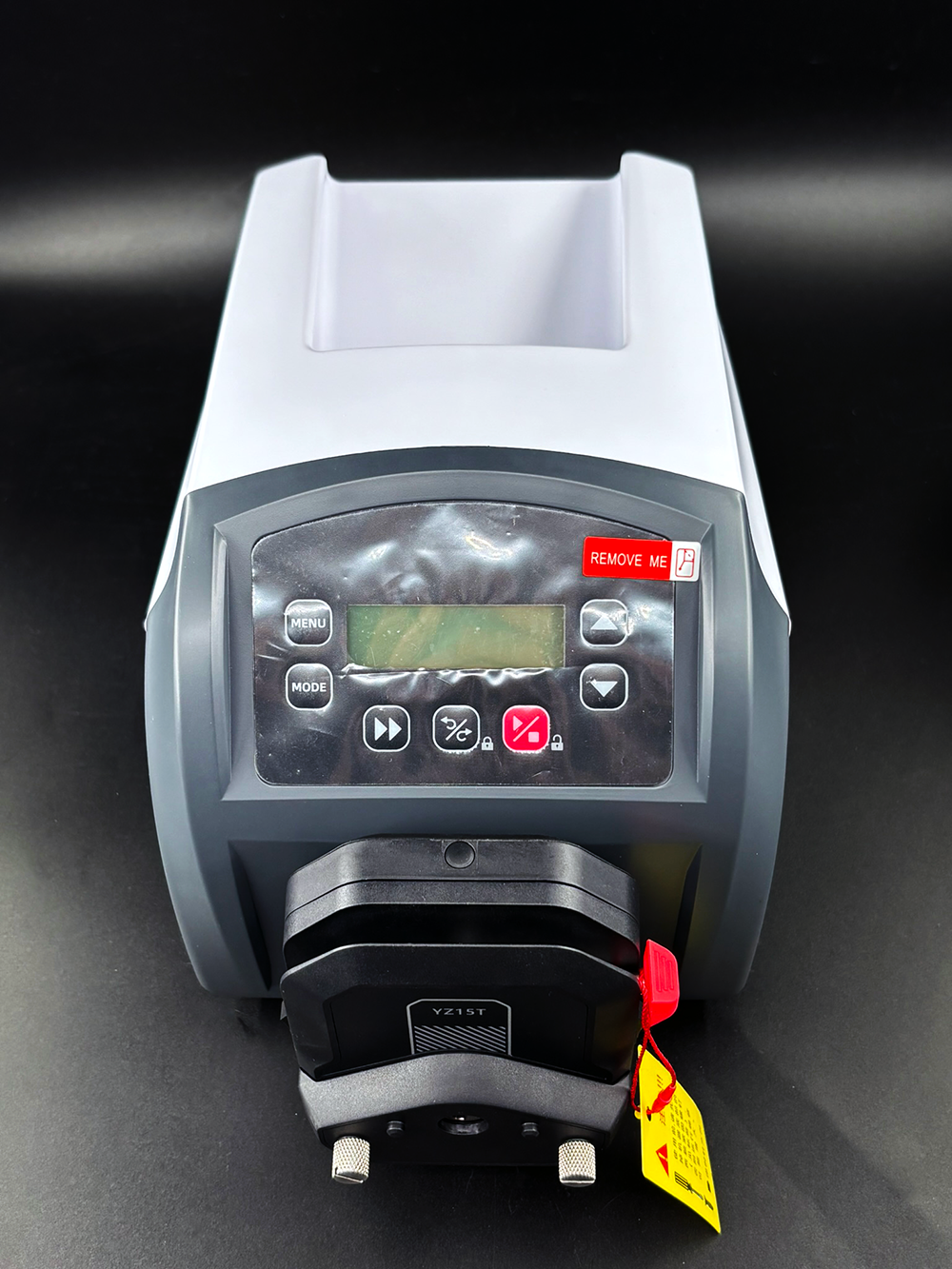

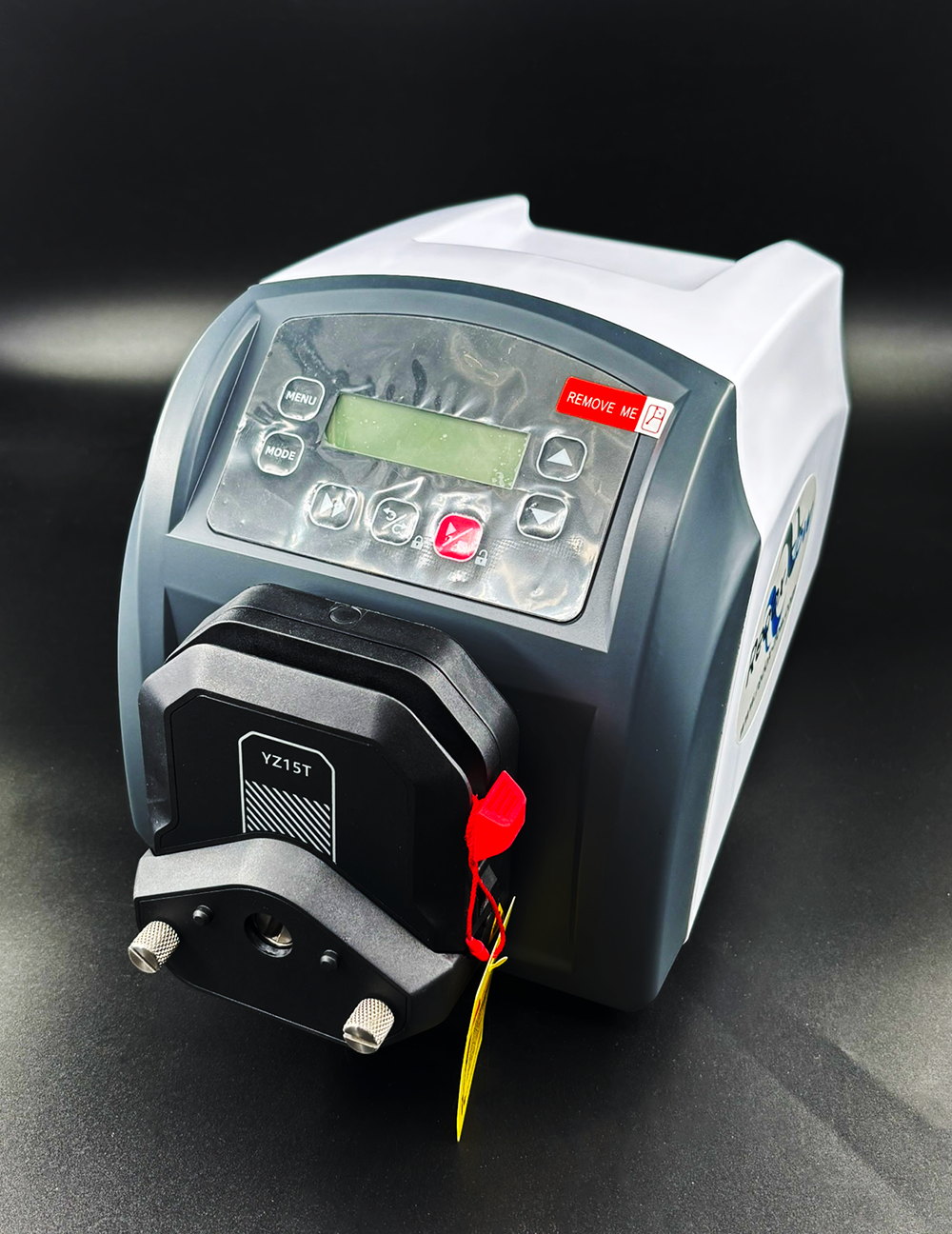

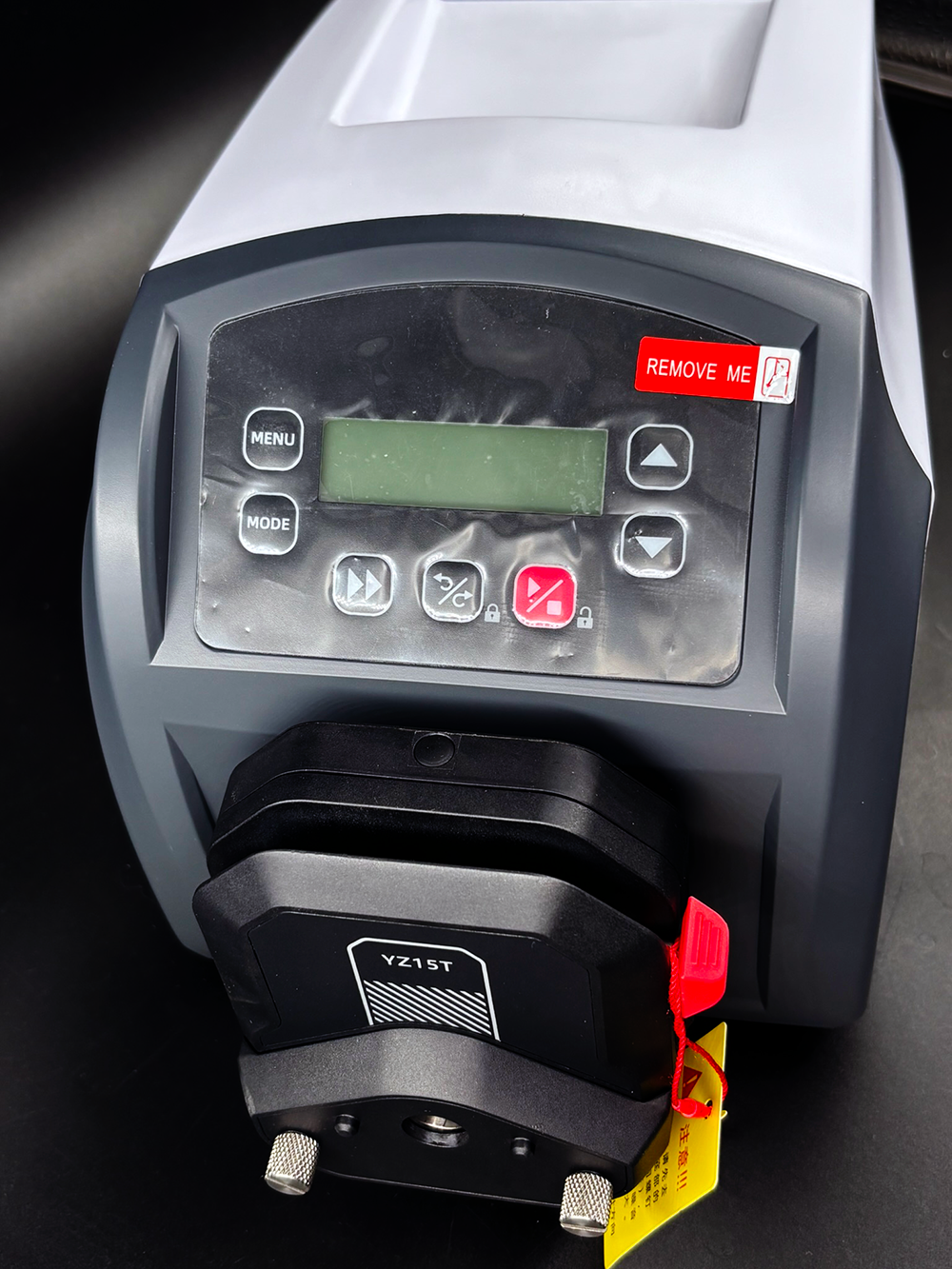

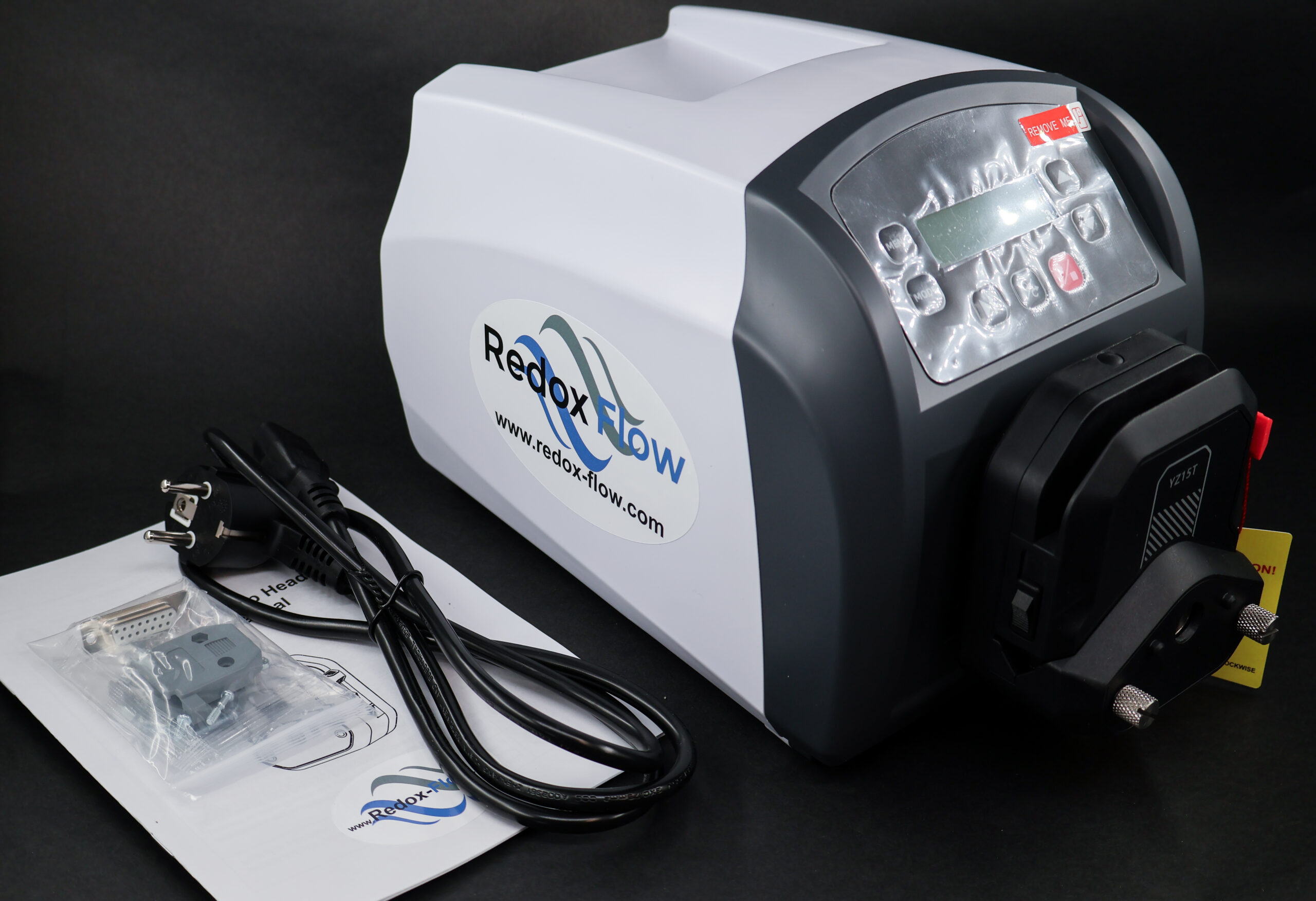

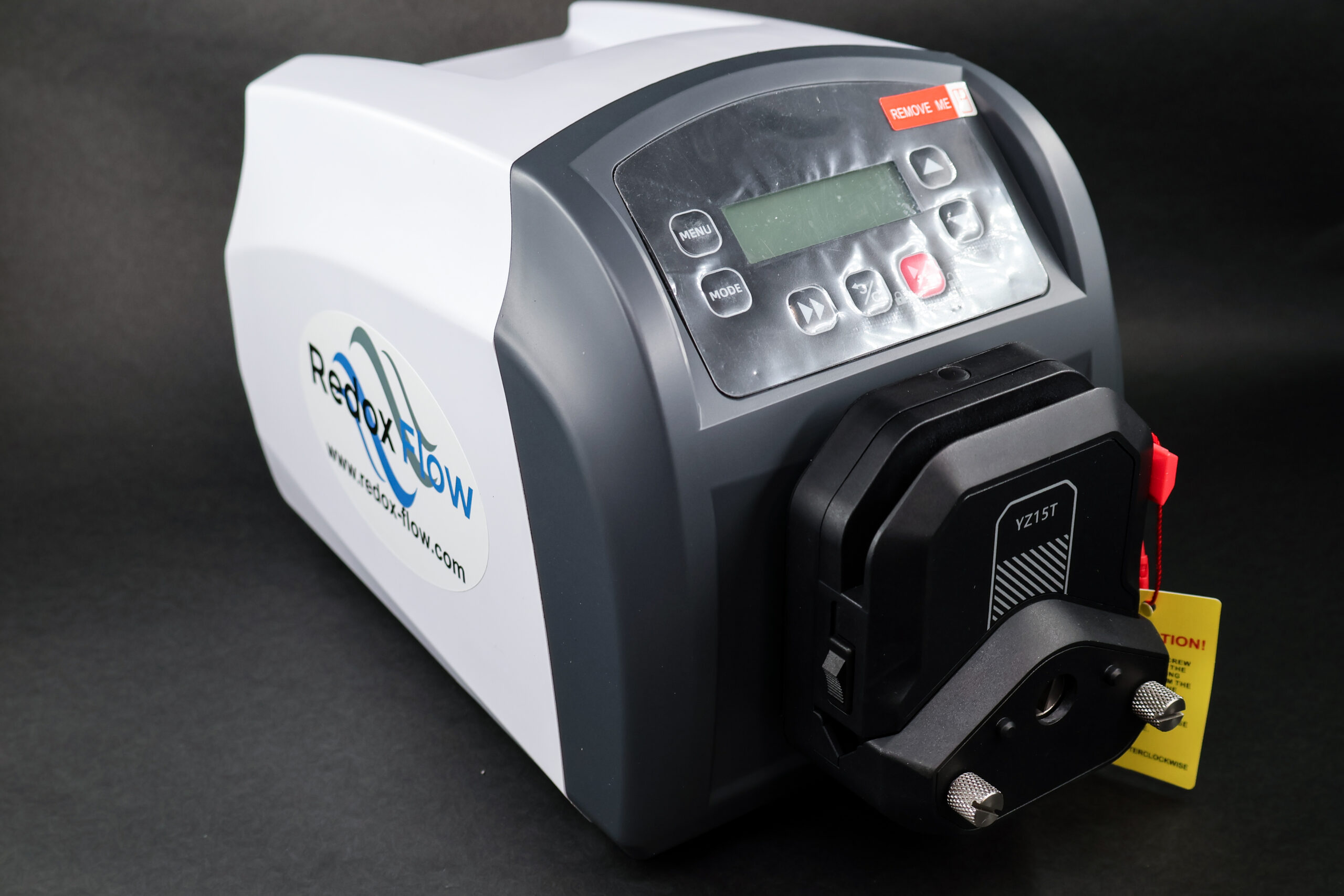

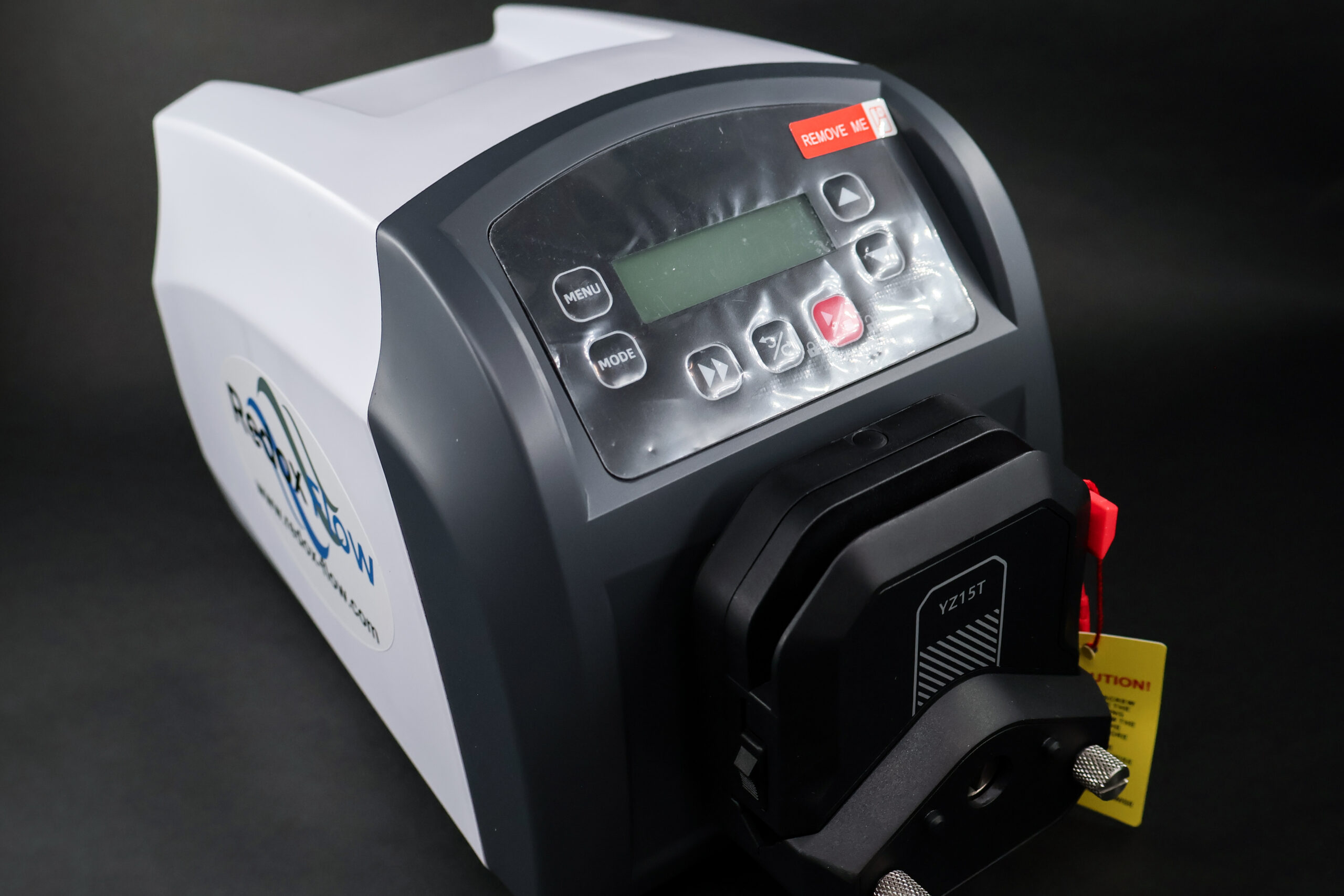

BT101S Peristaltic pump with 1 pump head

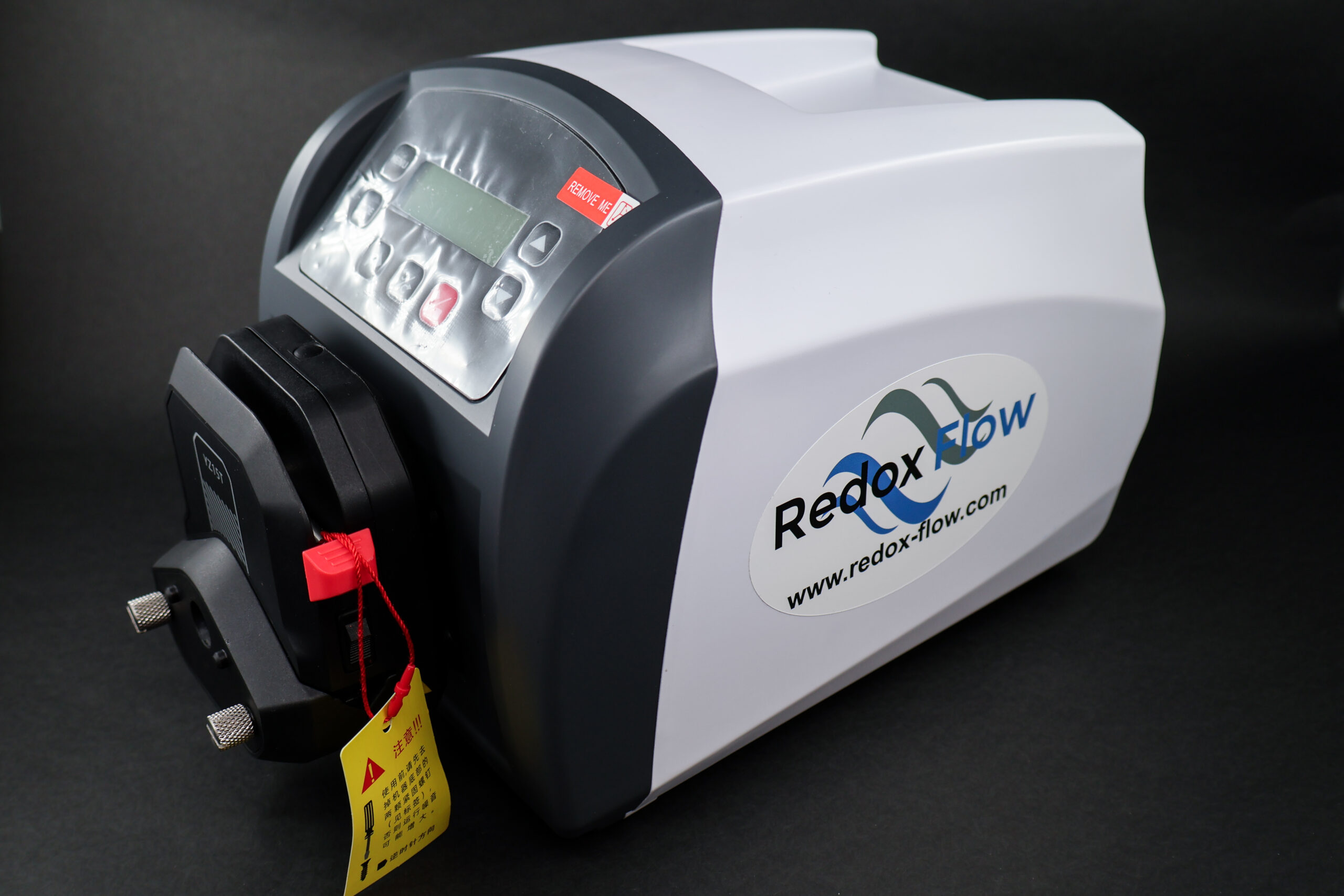

BT101S Peristaltic pump with 1 pump head - Image 2

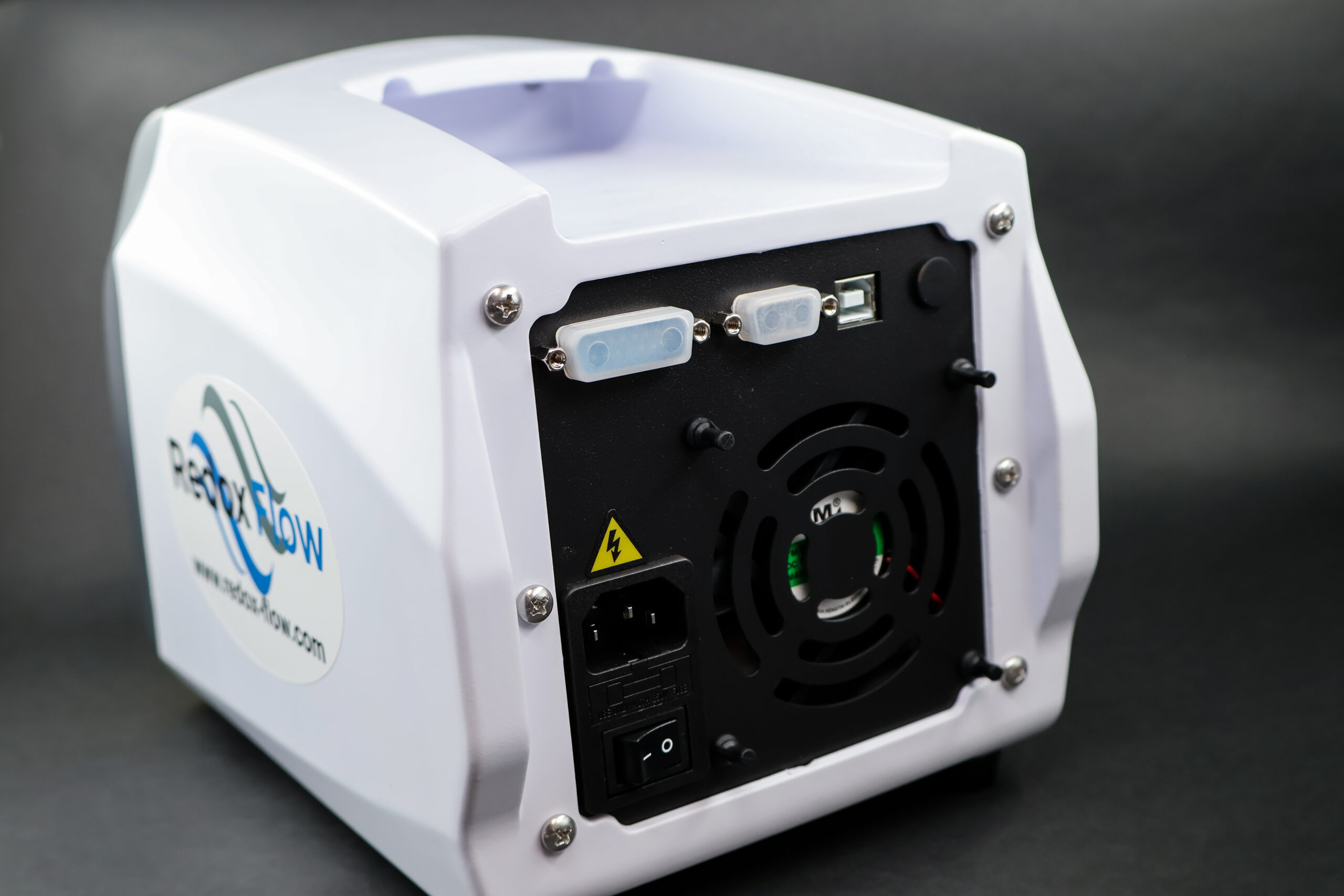

BT101S Peristaltic pump with 1 pump head - Image 3

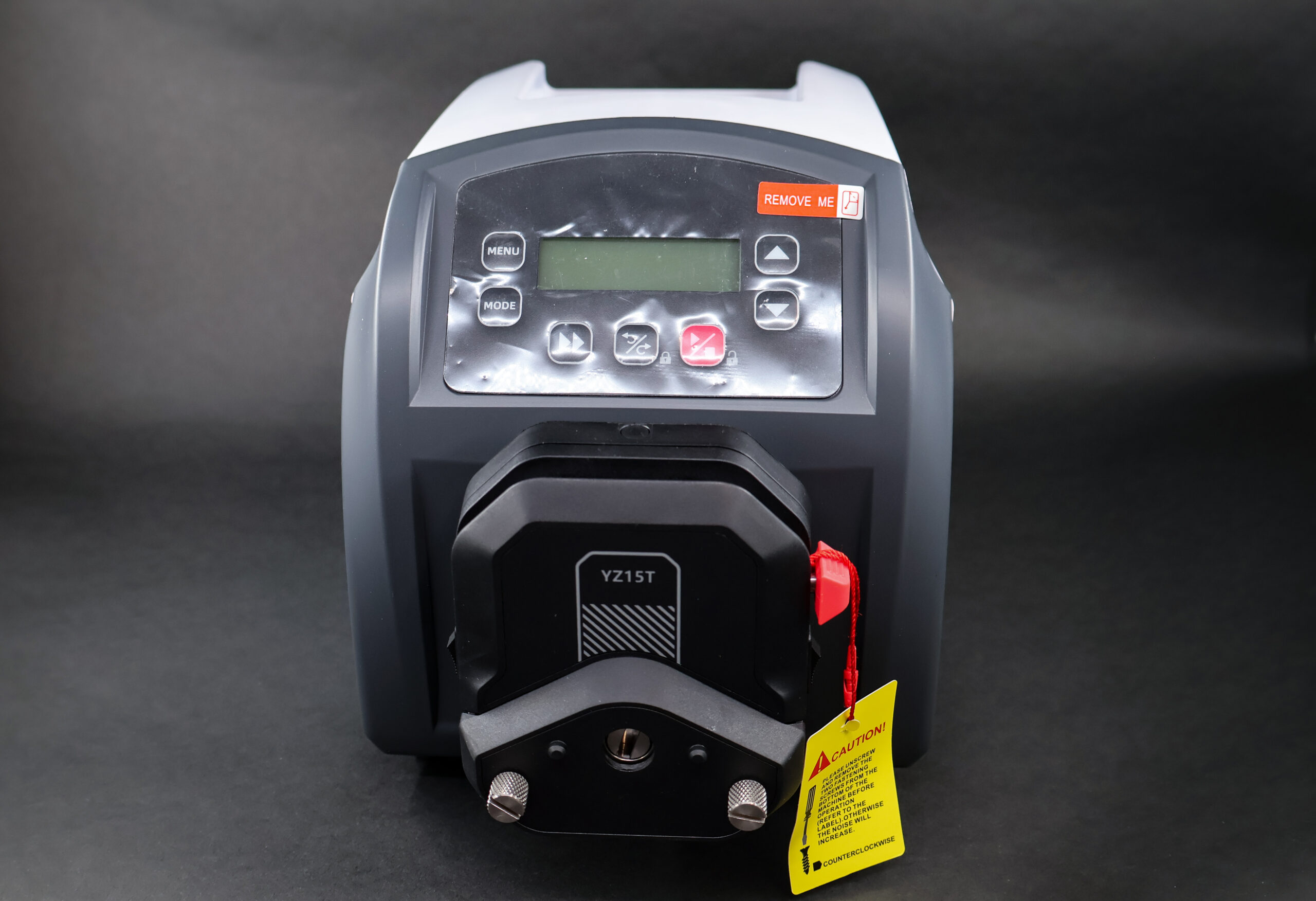

BT101S Peristaltic pump with 1 pump head - Image 4
BT101S Peristaltic pump with 1 pump head - Image 5
BT101S Peristaltic pump with 1 pump head - Image 6

BT101S Peristaltic pump with 1 pump head

P-BT101S

850.00 €

Peristaltic pump with flow-range of 0.005 – 641 mL/min.

Ideal in combination with our OCV Cell for flow in the central chamber. Can also be used for electrochemical cells, but for most applications, we recommend the BT600L with two pump heads.

Read more about the product

▲ ▼

About the product

  • Flow range: 0.005 – 641 mL/min
  • Speed range: 0.1～150rpm
  • Speed resolution: 0.1rpm(speed≤100rpm),1rpm(speed＞100rpm）
  • Speed accuracy: <0.2%
  • Working time: 0.1～999 S/Min/H/D
  • Dispensing interval time: 0.1～999 S/Min/H/D
  • Dispensing time: 1～999,“0” Infinite loops
  • External control: External control input level 5V, 12V(Standard), 24V (Optional), External control analog 0-5V(Standard), 0-10V, 4-20mA (Optional)
  • Communication interface: RS485 communication interface, MODBUS protocol is available, WiFi function(optional)
  • Power supply: AC 100-240V 50/60Hz
  • Power consumption: <30W
  • Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
  • IP grade: IP31
  • Dimension (L×W×H): 284mm×180mm×197mm
  • Driver weight: 3.6kg
